Description
MODELS
| Model # | Part # | Description |

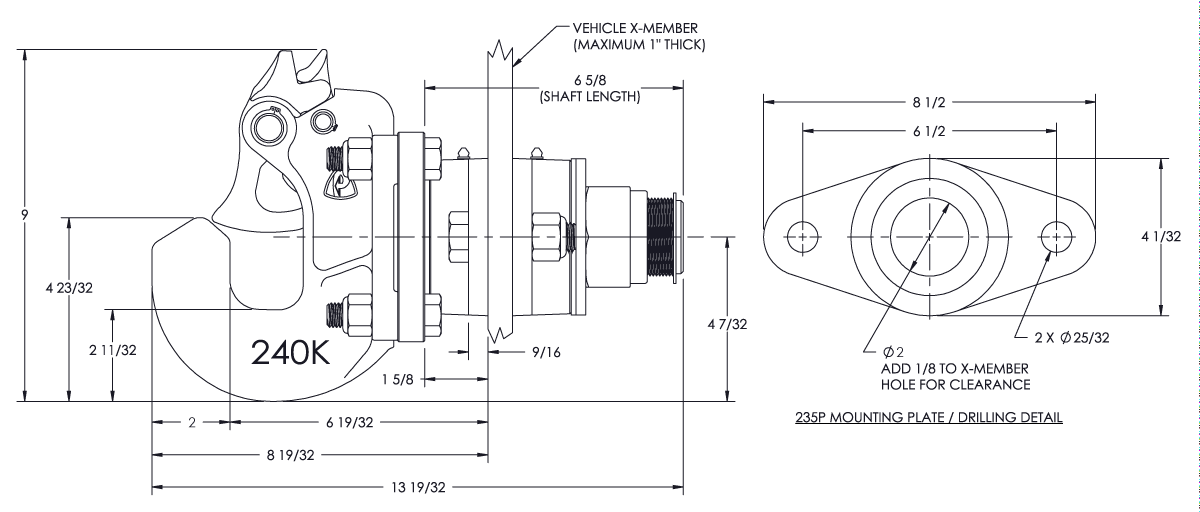

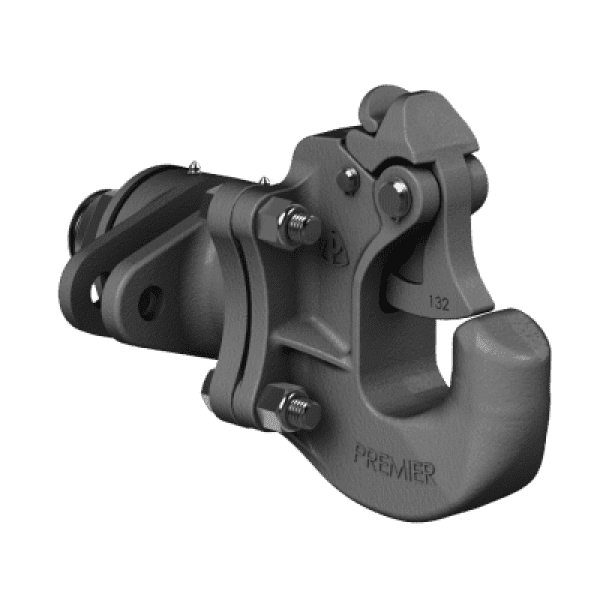

| 240KSA | 10001135 | 240KSA Swivel Adapter Coupling |
ACCESSORY & REPLACEMENT
| Model # | Part # | Description |
| 130PK | 10001043 | Parts Kit |
| 235P | 10001115 | Swivel Mounting Plate |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 60,000 lbs. (27,216 kg) | |
| Maximum Tongue Weight | 6,000 lbs. (2,722 kg) | |
| Ultimate Latch Capacity | 20,000 lbs. (9,072 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 40 lbs. (18.3 kg) |
-
Custom Truck Accessories
130PK Parts Kit
The 130PK Parts Kit is your replacement kit for our 130, 240, 240K, and 240KL Couplings. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important safety and maintenance information on …
Custom Truck Accessories
Wear Gages
<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
-
Drawbar Eyes
8 Weld-On Drawbar Eye
Premier’s 8 Weld-On Drawbar Eye has a maximum gross trailer weight of 100,000 lbs. Check out the Installation Guide below for more information and order from your local distributor today!D<span data-sheets-value="{"1":2,"2":"The 110 weld-on slack reducing drawbar eye is perfect for your every day trucking needs. This slack reducing eye was designed for 2 1/2 inch (64 mm) ...
Drawbar Eyes
6A Weld-On Drawbar Eye
Premier’s 6A Weld-On Drawbar Eye is an amazing addition to your trucking arsenal. It is perfect for pulling up to 100,000 lbs. in trailer weight! Check out the Installation Guide below for additional information. Find a distributor today!
Drawbar Eyes
6 Weld-On Drawbar Eye
Premier’s 6 Weld-On Drawbar Eye is a great choice for all of your trucking needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Order from a distributor today!
Drawbar Eyes
5 Weld-On Drawbar Eye
The 5 Weld-On Drawbar Eye from Premier Manufacturing is perfect for all of your trucking needs. It has a maximum gross trailer weight of 90,000 lbs. Find a distributor in your area today!
Drawbar Eyes
4 Weld-On Drawbar Eye
The 4 Weld-On Drawbar Eye from Premier Manufacturing has a maximum gross trailer weight of 90,000 lbs. and a maximum tongue weight of 13,500 lbs. Order this part from a distributor today!
Drawbar Eyes
309 Weld-On Drawbar Eye
The 309 Weld-On Drawbar Eye by Premier Manufacturing boasts a maximum gross trailer weight of 150,000 lbs. Locate a distributor in your area today!Designed For: 4 in. (102 mm) round tubing
Drawbar Eyes
305 Weld-On Drawbar Eye
The 305 Weld-On Drawbar Eye from Premier Manufacturing is designed for rectangular tubing, features a max gross trailer weight of 150,000 lbs. Order from a distributor today!
Designed For: Rectangular tubing, 2 in. x 4 in. (51 mm x 102 mm) and 4 in. x 4 in. (102 mm x 102 mm)
Drawbar Eyes
304 Weld-On Drawbar Eye
The 304 Weld-On Drawbar Eye Order from Premier Manufacturing offers a maximum gross trailer weight of 150,000 lbs and a maximum tongue weight of 15,000 lbs. Find a distributor today!
Drawbar Eyes
300HD Bolt-On Drawbar Eye
Premier’s 300HD Bolt-On Drawbar Eye Premium Manufacturing that has the same 3” ID as our 300 Drawbar Eye. Our 300 uses 3/4” mounting hardware. Whereas, the 300HD uses 7/8” mounting hardware and has a higher tongue capacity. Check out the Optional Accessories tab below for bolt kit and wear gage information.
Drawbar Eyes
300 Bolt-On Drawbar Eye
Premier Manufacturing’s 300 bolt-on drawbar eye is an exceptional addition to your trucking needs. It features a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Don’t forget to check the corresponding bolt kit (model# 507) and wear gage (model # 14032) listed under the Optional Accessories tab below. Order from a distributor today!
<button ...
Drawbar Eyes
245DB-3 Bolt-On Drawbar Eye
The 245DB-3 Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
Drawbar Eyes
245DB Bolt-On Drawbar Eye
The 245DB Bolt-On Drawbar Eye is great choice for your trucking needs. With a maximum gross trailer weight of 100,000 lbs. and maximum tongue weight of 8,000 lbs., it is the perfect tool for all of your mid-to-heavy-duty applications.
Drawbar Eyes
238DB Bolt-On Drawbar Eye
The 238DB Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
Drawbar Eyes
205 Weld-On Drawbar Eye
<span data-sheets-value="{"1":2,"2":"The 205 weld-on drawbar eye from Premier Manufacturing is an exceptional addition to your hauling equipment. It is designed for rectangular tubing that is 2 inches by 4 inches (51 mm x 102 mm) and 4 inches by 4 inches (102 mm x 102 mm). With a maximum gross trailer weight of 100,000 lbs, this drawbar eye is ...
Drawbar Eyes
127 & 127F Bolt-On Slack Reducing Drawbar Eyes
Made with our durable Premalloy, the 127 Bolt-On Slack Reducing Drawbar Eye is perfect for all of your trucking needs. It was designed for use with Premier’s 500 Mechanical Slack Adjuster or 281 and 282 Air Service Chambers. Slack Reducing Eyes work to maintain a tight fit between the drawbar eye loop and pintle hook. The snug fit improves the ride & …
Additional information
| MATERIAL | |
|---|---|
| MGTW |
