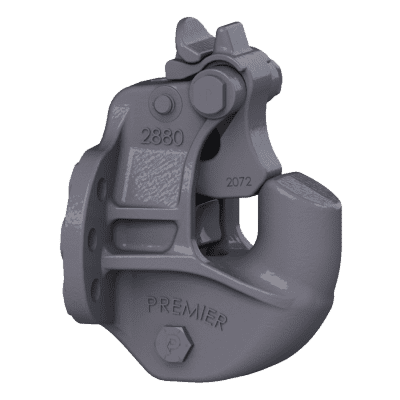

|2880||Coupling & 271 Thimble.|
|2880A Kit||2880 Coupling, 511 Bolt Kit, 282 Air Chamber, 767 Air Chamber Adapter Bracket, 271 Thimble.|
|2880EL||2880 Coupling with Extended Life latch direct-inject latch lubrication ports.|
|2880ELA Kit||2880EL Coupling, 511 Bolt Kit, 282 Air Chamber, 767 Air Chamber Adapter Bracket, 271 Thimble.|
|*Maximum Gross Trailer Weight||*170,000 lbs. *(77,111 kg)|
|Maximum Tongue Weight:||30,000 lbs. (13,608 kg)|
|Ultimate Latch Capacity:||60,000 lbs. (27,216 kg)|
|Maximum Eye X-Section:||1 13/16 in. (46 mm)|
|Minimum Eye Opening:||3 in. (76 mm)|
|Unit Weight:||42.1 lbs. (19.1 kg)|
|* MUST USE THE 511 Bolt Kit TO REACH 170,000 lb MAX GTW CAPACITY.|
These individually packaged bolt kits make the hardware selection for your coupling and/or drawbar eye fast and easy.
All kits (except **159 & ***511) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure coupling or drawbar eye mounting system.
* For use with non-air applications.
** 159 Kit has fine threaded Grade-8 fasteners, uses lock washers …To determine wear limits, Premier created Wear Gages that help judge the useful life of couplings /pintle hitches and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for Maintenance Managers and safety personnel.
In accordance with Premier and the Federal Motor Carrier Safety Regulations, these were designed to identify …
