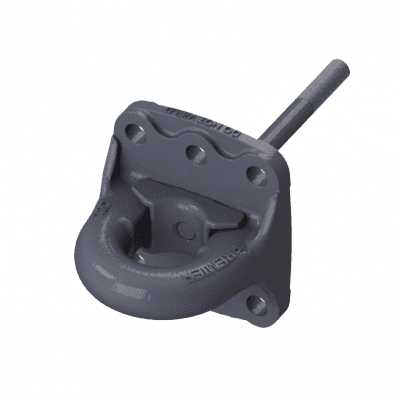

127 & 127F tornillos-En los ojos de la barra de tracción de reducción de holgura

Fabricado con nuestra duradera Premalloy, el ojo de barra de tracción reductor de holgura 127 tornillos es perfecto para todas sus necesidades de transporte. Fue diseñado para su uso con el ajustador mecánico 500 de Premier o con lascámaras de servicio de aire 281 y 282. Los ojos de reducción de holgura trabajan para mantener un ajuste apretado entre el bucle argolla y gancho. Este ajuste mejora la conducción y el manejo al tiempo que reduce el desgaste para aumentar la vida útil. Los modelos 127 tienen un peso bruto máximo de remolque de 100.000 libras y Capacidad máxima vertical de 15.000 libras, lo que los hace adecuados para una variedad de aplicaciones. Consulte la pestaña de accesorios opcionales para ver los componentes complementarios y la pestaña de guía de instalación para obtener más información.


Descripción

MODELOS

ModeloNúmero de piezaDescripción
127-710000727127 Ojo de lanza, 411 muela, 113B Varrilla de empuje
127-810000728127 Ojo de lanza, 411 muela, 113A Varrilla de empuje
127-1210000726127 Ojo de lanza, 411 muela, 113 Varrilla de empuje
127F10000729127 Ojo de la barra de tracción solamente (SIN muela y Varrilla de empuje)

127 ESPECIFICACIONES

Peso bruto máximo del remolque100.000 libras. (45.359 kg)
Capacidad máxima vertical6.804 kg (15.000 libras)
Diámetro interior2 3/8 pulgadas. (60 mm)
Peso de la unidad7,9 kg (17,4 libras)

ACCESORIOS Y REPUESTOS

ModeloNúmero de piezaDescripción
110C10000712Casquillo, Varrilla de empuje Guía
11310000716Varrilla de empuje, 12 pulgadas.
113A10000717Varrilla de empuje, 8 pulgadas.
113B10000718Varrilla de empuje, 7 pulgadas.
28110000116Cámara de aire, tipo 24
281J10000006Tuerca de bloqueo (se ajusta a la cámara de aire 281 y 282 Varrillas de empuje)
28210000122Cámara de aire, tipo 30
4710000144Acoplador
47L10000145Acoplamiento, rosca izquierda
47SPL10000146Acoplador
41110000010muela
50010000147Ajuste mecánico de la holgura
50310000151tornillos Kit
52510000173Tuerca de bloqueo (se ajusta a 113 Varrillas de empuje)
525L10000174Tuerca de bloqueo, rosca izquierda (se ajusta a 113 Varrillas de empuje)
1400510000053Medidor de desgaste
1403210000075Medidor de desgaste

ESPECIFICACIONES DE LAS PIEZAS DE RECAMBIO

ModeloLongitudHilo
113B7 pulgadas (178 mm)3/4 in - 16 NF
113A8 pulg. (203 mm)3/4 in - 16 NF
11312 pulgadas (305 mm)3/4 in - 16 NF
473 5/8 in.1 1/16 HEX
47L3 5/8 in.1 1/16 HEX
47SPL6 pulgadas.1 1/16 HEX
