Descripción
MODELOS

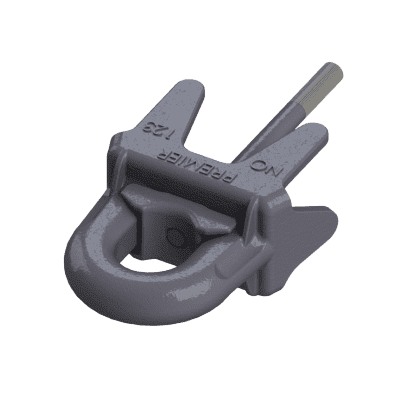

| Modelo # | parte # | Descripción |
| 123 - 7 | 10000722 | 123 Ojo de barra de tiro, 411 Zapata, 113B Varilla de empuje |
| 123 - 8 | 10000723 | 123 Ojo de barra de tiro, 411 Zapata, 113A Varilla de empuje |
| 123 - 12 | 10000721 | 123 Ojo de barra de tiro, 411 Zapata, 113 Varilla de empuje |
ESPECIFICACIONES 123
| Peso bruto máximo del remolque | 100,000 libras. (45,359 kg) |
| Peso máximo de la lengüeta | 15,000 libras. (6,803 kg) |
| Diámetro interior | 2 3/8 pulg. (60 mm) |
| Unidad De Peso | 15.6 libras. (7.1 kg) |
ACCESORIOS Y REPUESTOS
| Modelo # | parte # | Descripción |
| 110C | 10000712 | Buje, guía de varilla de empuje |
| 113 | 10000716 | Varilla de empuje, 12 pulgadas. |
| 113A | 10000717 | Varilla de empuje, 8 pulgadas. |
| 113B | 10000718 | Varilla de empuje, 7 pulgadas. |
| 281 | 10000116 | Cámara de aire, tipo 24 |
| 281J | 10000006 | Tuerca de seguridad (compatible con varillas de empuje de la cámara de aire 281 y 282) |
| 282 | 10000122 | Cámara de aire, tipo 30 |
| 47 | 10000144 | Acoplador |
| 47L | 10000145 | Acoplador, rosca izquierda |
| 47SPL | 10000146 | Acoplador |
| 411 | 10000010 | Zapato |
| 500 | 10000147 | Ajustador mecánico de holgura |
| 525 | 10000173 | Tuerca de seguridad (para 113 varillas de empuje) |
| 525L | 10000174 | Tuerca de seguridad, rosca izquierda (para varillas de empuje 113) |
| 14005 | 10000053 | Use Gage |
ESPECIFICACIONES DE LAS PIEZAS DE REPUESTO
| Modelo # | Longitud Mínima | Hilo |
| 113B | 7 en. (178 mm) | 3/4 pulg. - 16 NF |
| 113A | 8 en. (203 mm) | 3/4 pulg. - 16 NF |
| 113 | 12 en. (305 mm) | 3/4 pulg. - 16 NF |
| 47 | 3 5/8 pulg. | 1 1/16 HEX |
| 47L | 3 5/8 pulg. | 1 1/16 HEX |
| 47SPL | 6 pulg | 1 1/16 HEX |
-
