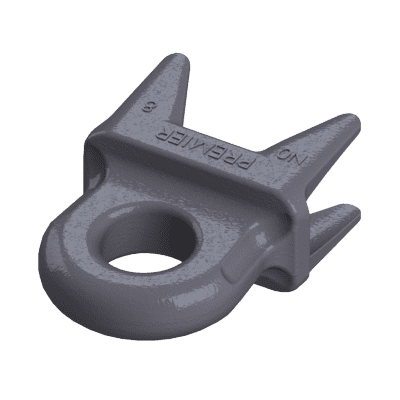

8 Ojo de la barra de tiro soldada

Premier's 8 Weld-On Drawbar Eye tiene un peso bruto máximo de remolque de 100.000 libras. Consulte la Guía de instalación a continuación para obtener más información y haga su pedido a su distribuidor local hoy mismo.
Diseñado paraTubo redondo de 64 mm (2 1/2 pulgadas)

Descripción

MODELOS

ModeloNúmero de piezaDescripción
810000848Ojo de la barra de tracción, para soldar, 2 3/8" ID

PIEZAS ACCESORIAS

ModeloNúmero de piezaDescripción
1400510000053Medidor de desgaste

ESPECIFICACIONES

Capacidad máxima vertical6.804 kg (15.000 libras)
Peso bruto máximo del remolque100.000 libras. (45.359 kg)
Diámetro interior2 3/8 pulgadas. (60 mm)
Peso de la unidad5,1 kg (11,3 libras)
  • Accesorios para camiones personalizados

    Calibradores de desgaste

    <span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

A continuación se indican los sitios compatibles acopladores, para ver la tabla de referencias completa haga clic aquí.
  • Enganche de perno y acopladores

    130 acoplador

    <span data-sheets-value="{"1":2,"2":"Popular for dolly haul back, the 130 model is ideal for light-to-medium duty applications. Like many of our couplings, the 130 model features a strong strike-resistant latching system that is easy to maintain and operate. The 130 coupling offers a 30,000 lbs. maximum gross trailer weight and 20,000 lbs. latch capacity, making it perfect for all of your ...

  • Enganche de perno y acopladores

    135NT Giratorio acoplador

    <span data-sheets-value="{"1":2,"2":"Utility companies, construction, agricultural, and military operations will all benefit from Premier Manufacturing's 135NT swivel couplings. Swivel action eliminates torque between mated vehicles when traveling over rough, uneven terrain. Please note that this product should not be used with a swivel-type drawbar eye. The 135NT swivel coupling is perfect for light-to-medium duty applications to make hauling easy and ...

  • Enganche de perno y acopladores

    Combinación de 150 y 150-1 acopladores

    <span data-sheets-value="{"1":2,"2":"One of Premier Manufacturing's most unique and versatile couplings is our popular 150 combination coupling. Whether you need to pull a trailer with an eye or ball connection, the 150 coupling can do the job. Our patented side-swing latch helps prevent tailgate damage and keeps the profile compact. With a maximum gross trailer weight of 20,000 lbs. and ...

  • Enganche de perno y acopladores

    16 Pasador y Horquilla acoplador

    <span data-sheets-value="{"1":2,"2":"Premier's pin and clevis 16 model coupling is simple in design yet offers high pull capacity for its size. This model is often used for dolly haul back, industrial, and agricultural operations. The 16 pin and clevis coupling can even be mounted on the front bumper of tractors for emergency towing or recovery operations. With a maximum gross ...

  • Enganche de perno y acopladores

    160 acoplador

    <span data-sheets-value="{"1":2,"2":"With the same unique latching as our 150 model, the 160 coupling offers a compact profile for tight places. Ideal for dolly haul back and other light-to-medium applications, this product is perfect for all of your trucking needs. With a 30,000 lbs. maximum gross trailer weight and 5,000 lbs. latch capacity, you're sure to make great use of ...

  • Enganche de perno y acopladores

    2200/2200L Reductor de holgura acoplador

    <span data-sheets-value="{"1":2,"2":"The 2200 model, like our ever-popular 270 coupling, features the most popular mounting bolt pattern in the industry. All of our 2000 series couplings offer exceptional latch strength, easy operation, and low maintenance. All 2000 series couplings can be operated with or without an air service chamber. With a maximum gross trailer weight of 100,000 lbs., the 2200 ...

  • Enganche de perno y acopladores

    2300/2300EL Reductor de holgura acoplador

    <span data-sheets-value="{"1":2,"2":"Popular with tanker fleet customers, the 2300 slack reducing coupling can be used throughout the industry. Like our 2200 model, the 2300 is also made from Permalloy for long life. As with all 2000 series couplings, the 2300 offers unsurpassed latch strength and can be operated with or without an air service chamber. Each coupling has a maximum ...

  • Enganche de perno y acopladores

    235NT Giratorio acoplador

    <span data-sheets-value="{"1":2,"2":"Premier's 235NT swivel coupling is more heavy-duty than out 135NT swivel for those extra tough jobs. When rough, uneven ground is a problem, the 235NT swivel may be the answer. Note that this coupling is not to be used with swivel-type drawbar eyes. With a maximum gross trailer weight of 60,000 lbs. and a 20,000 lbs. latch capacity, ...

  • Enganche de perno y acopladores

    240 acoplador

    <span data-sheets-value="{"1":2,"2":"Designed as a direct retrofit to the mounting pattern of our 135NT, the 240 coupling is the perfect choice for your hauling needs. The 240 is built with extra toughness and wear resistant that Permalloy users have come to expect. With a maximum gross trailer weight of 45,000 lbs. and 20,000 lbs. latch capacity, the 240 coupling is ...

  • Enganche de perno y acopladores

    2400/2400EL Reductor de holgura acoplador

    <span data-sheets-value="{"1":2,"2":"When installation and mounting is limited by bolt hole pattern, the 2400 slack reducing coupling may be the answer. Although one of the bottom three mounting holes must be used, you choose which one. This allows for maximum compatibility with existing mounting patterns. Popular with Pup and Dumps and Tanker applications, all 2000 series couplings can be operated ...

  • Enganche de perno y acopladores

    240K Y 240KL acopladores

    <span data-sheets-value="{"1":2,"2":"The 240K/240KL coupling is a direct result of customer requests for a King T-22 pintle hitch hook replacement model. Utilizing customer input, this coupling was engineered with a time-tested latch system, which is used on many of our models. This strong, easy to operate, strike-resistant latch system is a proven performer within our product line. The pintle body ...

  • Enganche de perno y acopladores

    270 Reducción de la holgura acoplador

    <span data-sheets-value="{"1":2,"2":"Like the 2200, our 270 slack reducing coupling offers the most popular bolt mounting pattern in the industry. Low profile, wear-resistant Permalloy and quick, easy latching are features that have made the 270 standard with fleets around the world. This coupling must be used with an air service chamber. With a 90,000 lbs. maximum gross trailer weight and ...

  • Enganche de perno y acopladores

    370 Reducción de la holgura acoplador

    El reductor de holgura 370 acoplador se utiliza con frecuencia en aplicaciones de volquetes y cachorros. Nuestro popular modelo 370 ofrece a los usuarios un perfil bajo, alta resistencia seguro , y un cuerpo Premalloy para un máximo desgaste. Este acoplador debe utilizarse con una cámara de servicio de aire. Con un peso bruto máximo de remolque de 90.000 libras, nuestro 370 acoplador es perfecto para el transporte de cargas medias a pesadas.

    <img ...

  • Enganche de perno y acopladores

    470 Reductor de holgura acoplador Producto descatalogado Sustituciones recomendadas: 2400 Y 2400EL

    Utilizado a menudo en la industria agrícola, así como en los camiones cisterna, el 470 de reducción de holgura acoplador ofrece un sistema de enganche similar al de nuestro 270, pero con un patrón de montaje diferente. Este acoplador debe utilizarse con una cámara de servicio de aire. Con un peso bruto máximo de remolque de 90.000 libras y una capacidad de 12.000 libras seguro , este acoplador es perfecto para ...

  • Enganche de perno y acopladores

    480 acoplador

    <span data-sheets-value="{"1":2,"2":"One of our highest capacity, non-air couplings, the 480 coupling has high strength latch components that are strike-resistant and concealed within the coupling body. Conveniently located grease zerks provide for easy maintenance of internal components. With a maximum gross trailer weight of 130,000 lbs. and 30,000 lbs. latch capacity, the 480 coupling is ideal for all of your ...

  • Enganche de perno y acopladores

    570 Reducción de la holgura acoplador

    Cuando el espacio vertical es escaso, el reductor de holgura 570 acoplador puede ser la solución. Nuestro 570 ofrece una cámara de aire de montaje inferior, un perfil bajo y un sólido sistema de enganche. Se suministra una copa de aceite para lubricar rápida y fácilmente el seguro. Este acoplador debe utilizarse con una cámara de servicio de aire. Recomendamos nuestra 281C. Con un ...

  • Enganche de perno y acopladores

    580J acoplador

    <span data-sheets-value="{"1":2,"2":"With the same rugged features of our 580, the 580J coupling offers a higher load rating and slightly different mounting pattern. Protected internal latch parts, easy lubrication, and easy of operation are trademarks of all our 80-series couplings. With a maximum gross trailer weight of 90,000 lbs., you'll be sure to find many users for this exceptional pintle ...

  • Enganche de perno y acopladores

    690L/690R Pivote de caída acoplador

    Premier’s 690L Drop Pintle Coupling offers similar features to …

  • Enganche de perno y acopladores

    780 Reductor de holgura acoplador Producto descatalogado

    P R O D U C T O C O N T I N U A D O - CANTIDADES LIMITADAS
    Las cantidades en stock serán los últimos pedidos realizados.
    An extremely strong latching system, low profile and enclosed latch components are what stand out about our 780. Hidden from snow, ice and road debris, the 780’s latch …

  • Enganche de perno y acopladores

    820ELA Conjunto de larga duración acoplador

    <span data-sheets-value="{"1":2,"2":"Featuring our new SAF-T-LATCH, the 820ELA coupling assembly offers an exceptionally safe, strong, and easy to use latch mechanism, Extended Life (EL) lubrication points, and the mosts popular bolt hole pattern in the industry. The latch mechanism includes a small auxiliary air cylinder that is connected to our 281 or 282 air chamber. This assists in ensuring the ...

  • Enganche de perno y acopladores

    890C Drop Pintle acoplador Producto descatalogado Sustitución recomendada: 990 acoplador

    Kits de piezas 890PK y 890PK-NH disponibles para su compra hasta agotar existencias

    <span data-sheets-value="{"1":2,"2":"Premier's 890CL and 890CR drop pintle coupling offers a slightly different mounting pattern for compatibility with existing x-members. This product is not to be used or A-Dolly applications. Made with Premalloy, the 890C series offers a maximum gross trailer weight of 90,000 lbs., making it ...

Información adicional

Tipo de argollas
