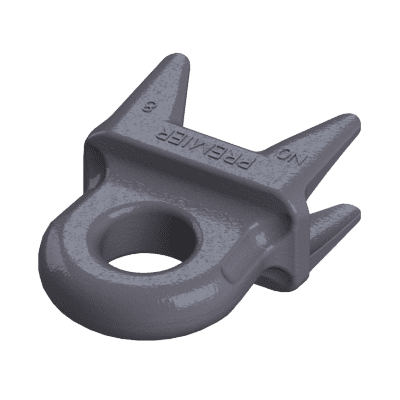

8 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
8	10000848	Drawbar Eye, Weld-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage

SPECIFICATIONS

Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	11.3 lbs. (5.1 kg)

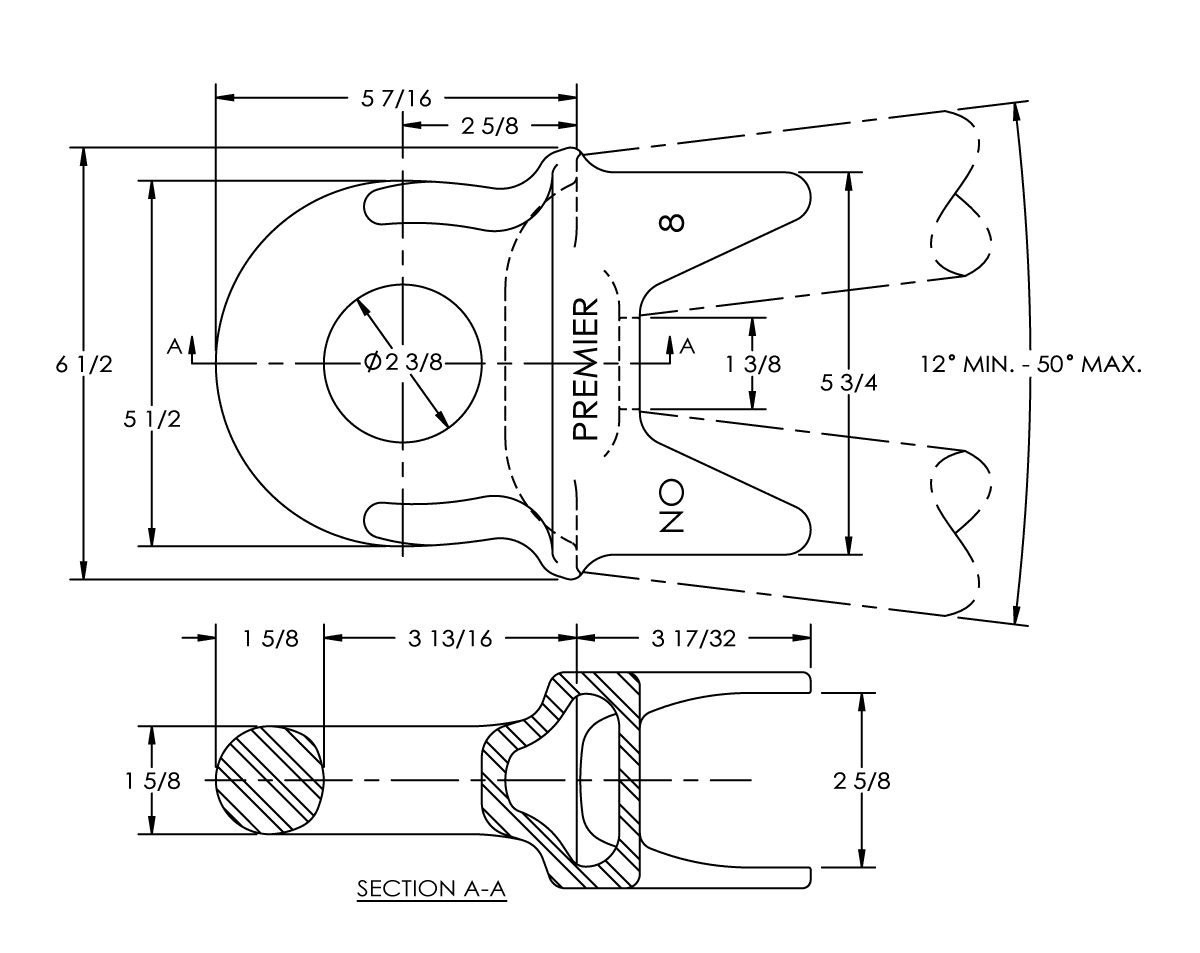

Drawings

Installation

8 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
