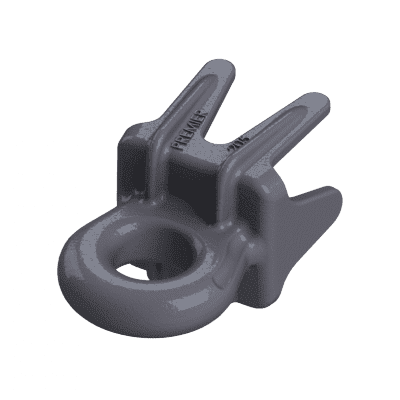

205 Soudure anneau d'accouplement

Le 205 Weld-On anneau d'accouplement de Premier Manufacturing est un ajout exceptionnel à votre équipement de transport. Avec un poids brut maximal de la remorque de 100 000 lb, ce anneau d'accouplement est parfait pour une variété d'applications.
Conçu pour: Tubes rectangulaires, 51 mm x 102 mm (2 po x 4 po) et 102 mm x 102 mm (4 po x 4 po).

Description

MODÈLES

Modèle nRéférenceDescription
20510000746anneau d'accouplementà souder, 2 3/8" ID

PIÈCES ACCESSOIRES

Modèle nRéférenceDescription
1400510000053Jauge d'usure
1403210000075Jauge d'usure

SPÉCIFICATIONS

Poids brut maximal de la remorque100 000 livres. (45 359 kg)
Poids maximal de la langue6 804 kg (15 000 lb)
Diamètre intérieur2 3/8 in. (60 mm)
Poids unitaire6,3 kg (13,9 lbs)
