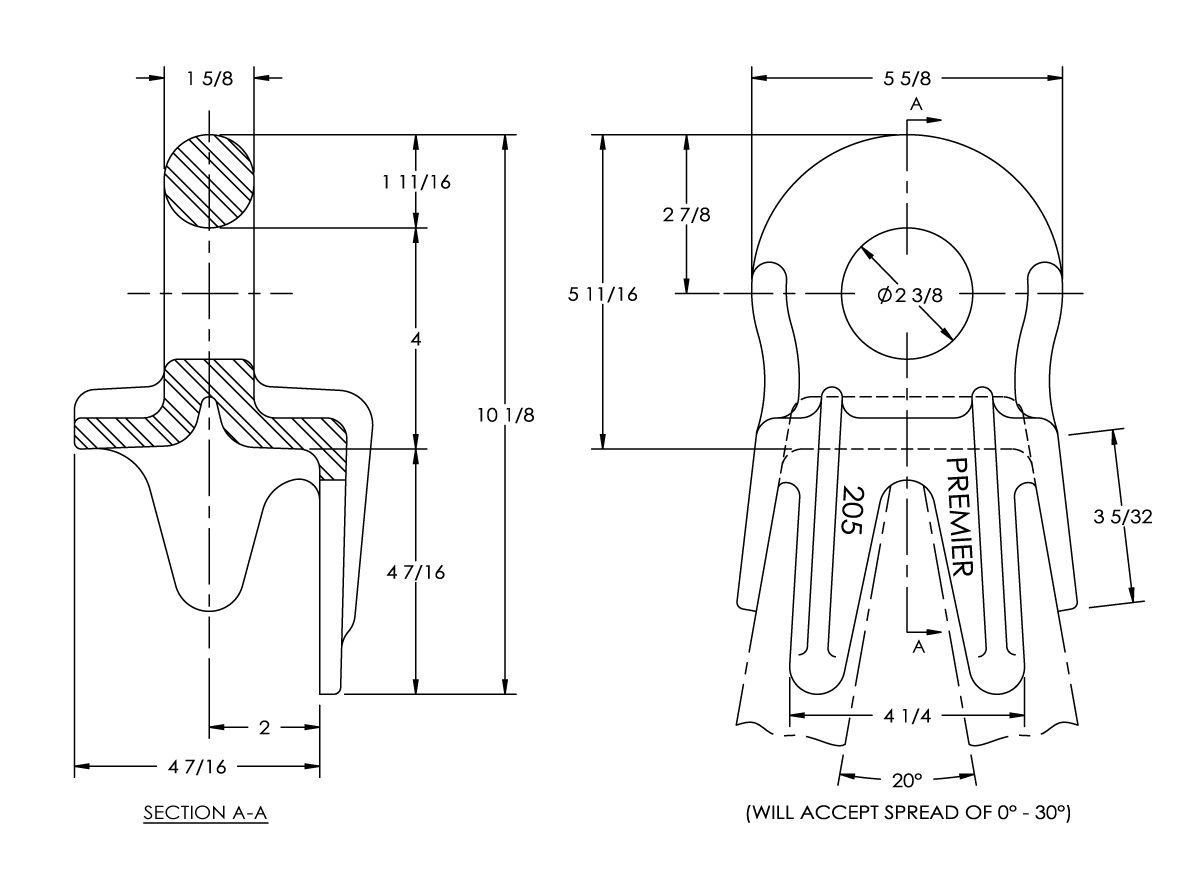

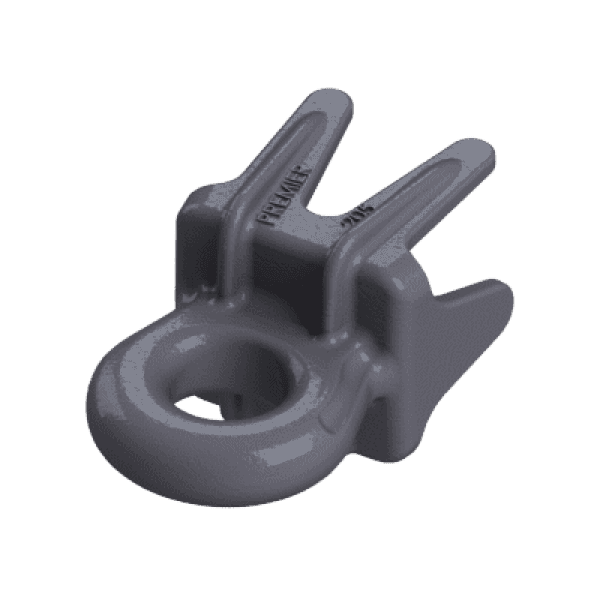

205 WELD-ON DRAWBAR EYE

The 205 weld-on drawbar eye from Premier Manufacturing is an exceptional addition to your hauling equipment. It is designed for rectangular tubing that is 2 inches by 4 inches (51 mm x 102 mm) and 4 inches by 4 inches (102 mm x 102 mm). With a maximum gross trailer weight of 100,000 lbs, this drawbar eye is perfect for a variety of applications.

Description

MODELS

205 Drawbar eye only, 2 3/8″ ID.

SPECIFICATIONS

Maximum Gross Trailer Weight 100,000 lbs. (45,359 kg)
Maximum Tongue Weight 15,000 lbs. (6,804 kg)
Inside Diameter 2 3/8 in. (60 mm)
Unit Weight 13.9 lbs. (6.3 kg)

Additional information

Eye Type
