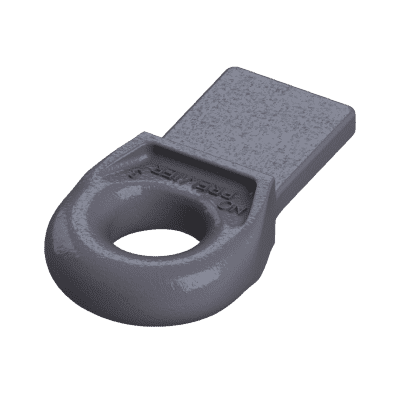

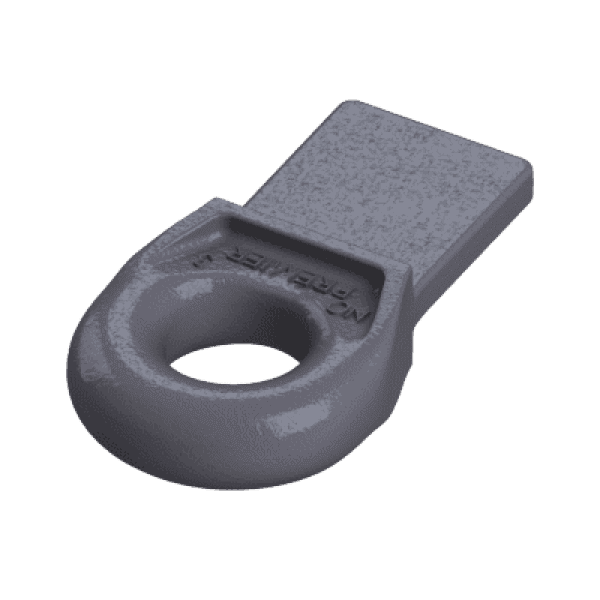

3 Souder sur anneau d'accouplement | Premier Manufacturing

Description

MODÈLES

Modèle n	Référence	Description
3	10000788	anneau d'accouplementà souder, 2 1/16" ID

PIÈCES ACCESSOIRES

Modèle n	Référence	Description
14002	10000050	Jauge d'usure

SPÉCIFICATIONS

Poids brut maximal de la remorque	31 751 kg (70 000 lb)
Poids maximal de la langue	4 763 kg (10 500 lb)
Diamètre intérieur	2 1/16 in. (52 mm)
Poids unitaire	3,5 kg (7,7 lbs)

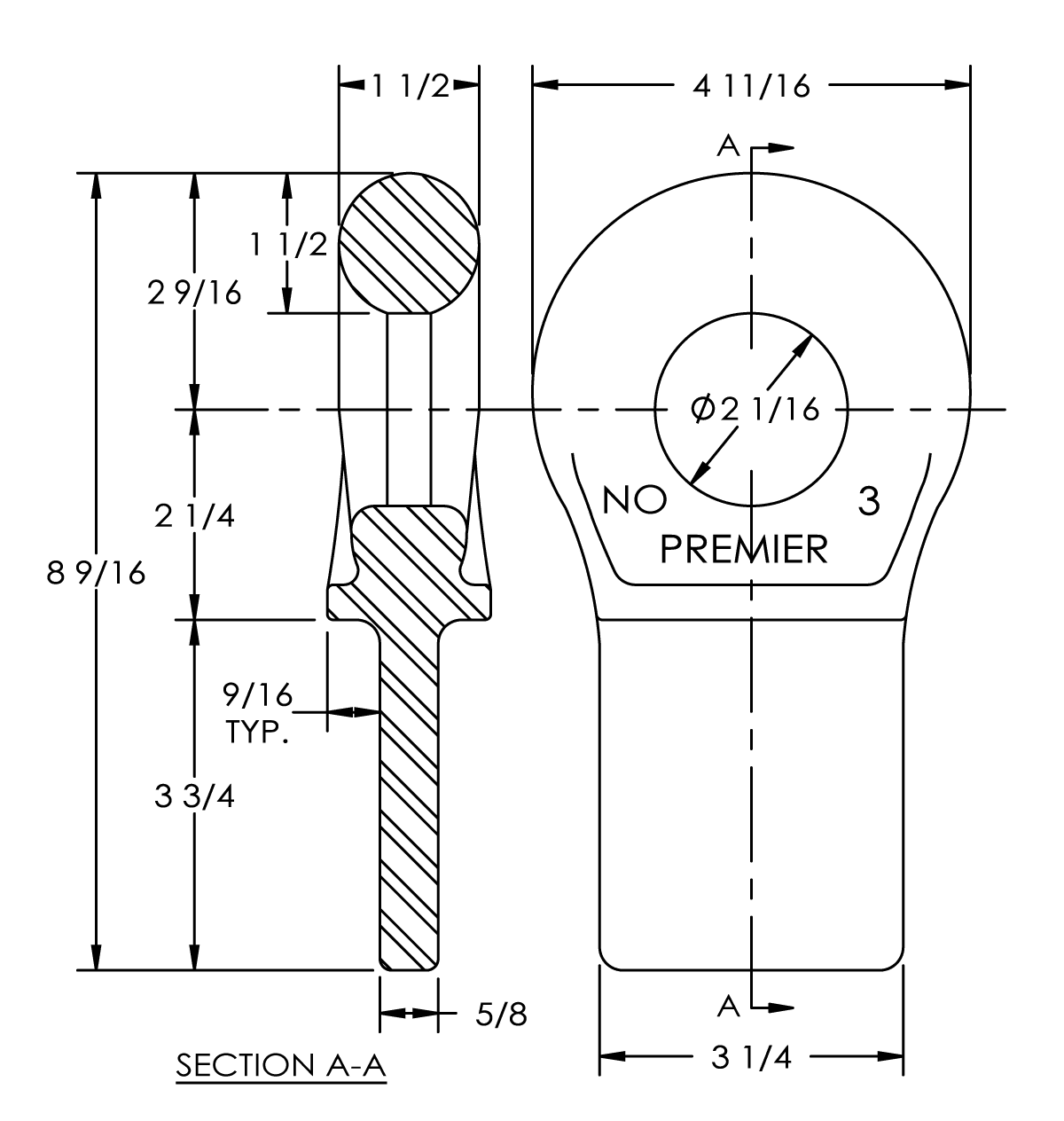

Dessins

Installation

3 11 anneau d'accouplement Installation

Accessoires optionnels

Accessoires pour camions personnalisés

Jauges d'usure
