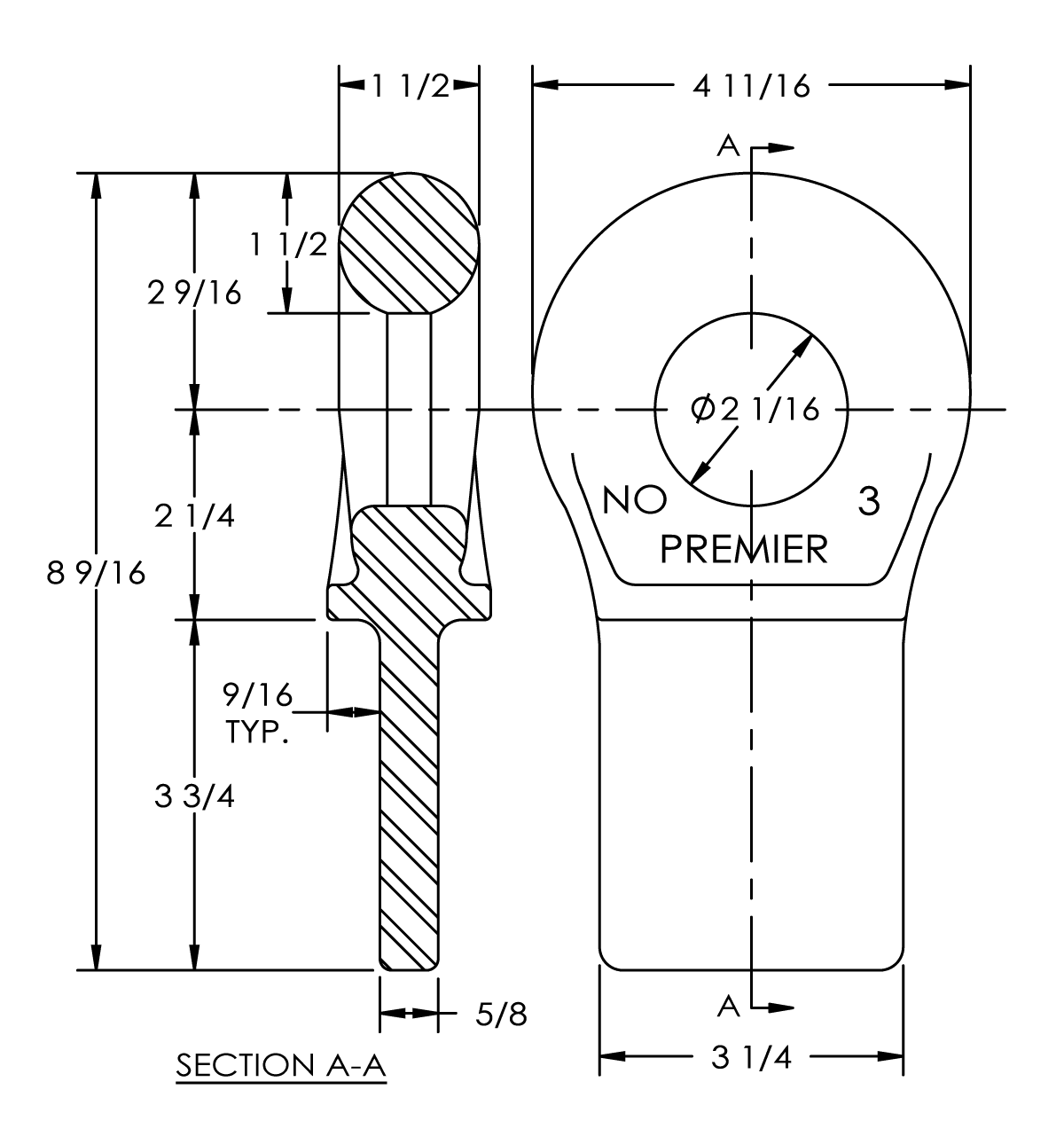

3 Weld-On Drawbar Eye

The 3 weld-on drawbar eye is perfect for all of your trucking needs. With a maximum gross trailer weight of. 70,000 lbs., it can be utilized for a variety of mid-to-heavy-duty applications.




Model #Part #Description
310000788Drawbar Eye, Weld-On, 2 1/16" ID


Model #Part #Description
1400210000050Wear Gage


Maximum Gross Trailer Weight70,000 lbs. (31,751 kg)
Maximum Tongue Weight10,500 lbs. (4,763 kg)
Inside Diameter2 1/16 in. (52 mm)
Unit Weight7.7 lbs. (3.5 kg)
