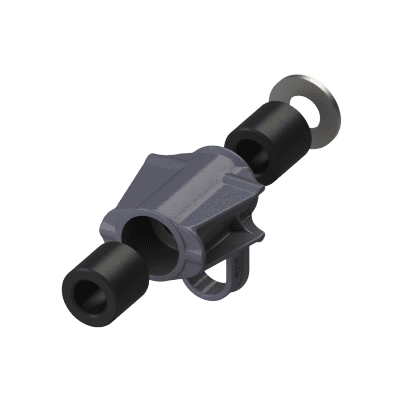

640S & 640SA Boîtiers d'extrémité avant

Les carters avant des 640S et 640SA sont le complément idéal de votre arsenal routier. Ils sont disponibles avec des bagues en caoutchouc ou en poly. Les 640S et 640SA ont été conçus pour être utilisés uniquement avec nos anneaux de timon pivotants 207S, 307S et 405S. Consultez l'onglet Compatible Drawbar Eyes ci-dessous pour des composants complémentaires et l'onglet Guide d'installation pour plus d'informations !

Accepte 2 1/2 in. (64 mm) de tube rond.

Catégorie :

Description

MODÈLES

Modèle nRéférencePièces inclusesOeils de barre d'attelage compatibles
640S10000889646 Logement, 349 Rondelle, 348 Douilles en caoutchouc (2)207S, 307S, 405S
640SA10000891646 Boîtier, 349 Rondelle, 348A Douilles poly (2)207S, 307S, 405S

646 HOUSING SPECIFICATIONS

Diamètre extérieur :
Longueur :
Poids unitaire :8,5 kg (18,7 lb)

PIÈCES DE RECHANGE

Modèle nRéférenceDescription
34810000857Douille en caoutchouc
348A10000856Douille, Poly
34910000858Lave-linge
64610000892Logement

REPLACEMENT PART SPECIFICATIONS

Modèle nDiamètre intérieurDiamètre extérieurLongueur
3482 in.3 1/2 in.3 1/2 in.
348A2 in.3 1/2 in.3 1/2 in.
3492 1/16 in.4 1/4 in.
  • Accessoires pour camions personnalisés

    348 Douille en caoutchouc

    Premier’s 348 Rubber Bushing can be ordered for replacement in our 340S and 640S Front End Assemblies. Rubber is our standard bushing material and is suitable for most applications. However, you can check out the Similar or Alternatives tab below for ordering information on our 348A Poly Bushings which have a longer service life.
    NOTE: Each Front End …

  • Accessoires pour camions personnalisés

    348A Douille en polyuréthane

    The 348A Poly Bushing can be ordered for replacement in our 340SA and 640SA Front End Assemblies. Polyurethane bushings typically yield 2 to 3 times the service life of rubber. They are ideal and highly recommended for use in off-road and/or severe applications. Check out the Similar or Alternatives tab below to access important service information on the 340SA & …

  • Anneaux d'accouplement

    207 Oeillets de barre d'attelage pivotants

    Our 207 Swivel Drawbar Eyes are only to be used with Premier Front End Housings.  Bushings are not

  • Anneaux d'accouplement

    307 Oeillets de barre d'attelage pivotants

    Premier’s 307 Swivel Drawbar Eyes are only to be used with our Front End Housings.  Bushings are not included.  Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer.  With a maximum gross trailer weight of 150,000 lbs., the 307 is perfect for a variety of heavy-duty …

  • Anneaux d'accouplement

    405 Oeillets de barre d'attelage pivotants

    Nos œillets de barre d'attelage pivotants 405 ne doivent être utilisés qu'avec les boîtiers d'extrémité avant Premier. Les douilles sont pas inclus. Consultez l'onglet Accessoires optionnels pour accéder à notre sélection d'embouts avant qui comprennent le boîtier, les bagues et la rondelle.
    This Drawbar Eye is also Slack-Reducing! It can be used with Premier’s 500 Mechanical Slack Adjuster or  281 and 282 …
