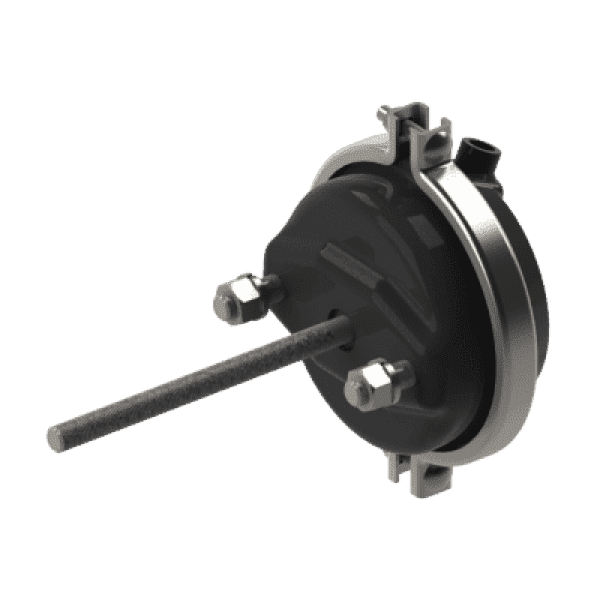

281 / 282 AIR CHAMBERS

These are not your typical air chambers, these are built to last in the rigorous service of coupling and drawbar eye connections.

Description

MODELS

281 Type-24 Air chamber with 8″ pushrod.
281L Type-24 Air chamber with 12″ pushrod.
281-CUSTOM Type-24 Air chamber with custom pushrod length, shorter than 8″. Minimum quantity order of 50.
282 Type-30 Air chamber with 8″ pushrod.
281L-CUSTOM Type-24 Air chamber with custom pushrod length, longer than 8” and shorter than 12″. Minimum quantity order of 50.
281C Type 24 Air chamber (for use with 370BC, 570, and 2300BC couplings)
281SPL Type 24 Air chamber (5-3/8” pushrod length. Bandclamp rotated 90 degrees to align with mounting studs).

SPECIFICATIONS

281 Maximum Force at 100 psi 2,400 lbs. 10.68 kN
281L Maximum Force at 100 psi 2,400 lbs. 10.68 kN
281Custom Maximum Force at 100 psi 2,400 lbs. 10.68 kN
282 Maximum Force at 100 psi 3,000 lbs. 13.34 kN
