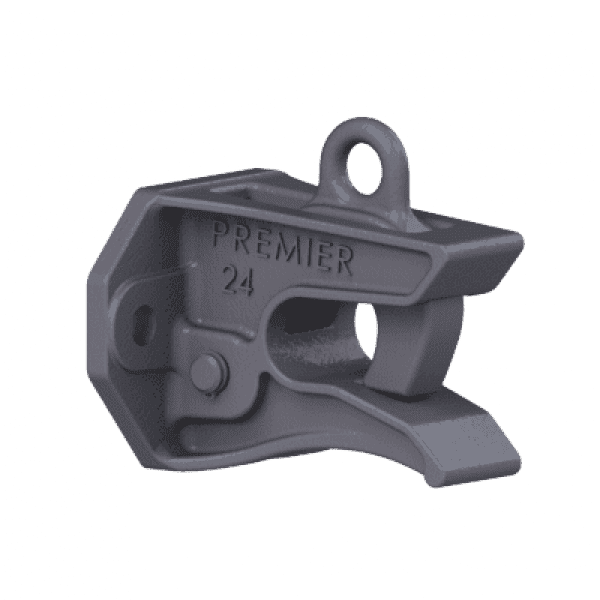

24 Drop-Down Coupling

The 24 drop-down coupling provides light duty pulling capacity with very simple operation. The eyelet attached to the top of the hook makes uncoupling quick and easy, and can even be used for remote operation (i.e. rope or cable release). This coupling is not recommended for over-the-road use, and is ideal for many farm, factory, and light industrial applications.

Description

MODELS

Model #	Part #	Description
24	10001122	24 Coupling

REPLACEMENT PARTS

Model #	Part #	Description
25	10001141	Hook
26	10001143	Spring
27	10004732	Latch Pin (44-62 (2) Snap Rings Incl.)
44-62	10000353	Snap Ring

SPECIFICATIONS

Maximum Gross Trailer Weight	12,000 lbs. (5,443 kg)
Maximum Tongue Weight	not rated
Ultimate Latch Capacity	not rated
Maximum Eye X-Section	1 in. (25 mm)
Minimum Eye Opening	2 in. (51 mm)
Unit Weight	9.2 lbs. (4.2 kg)

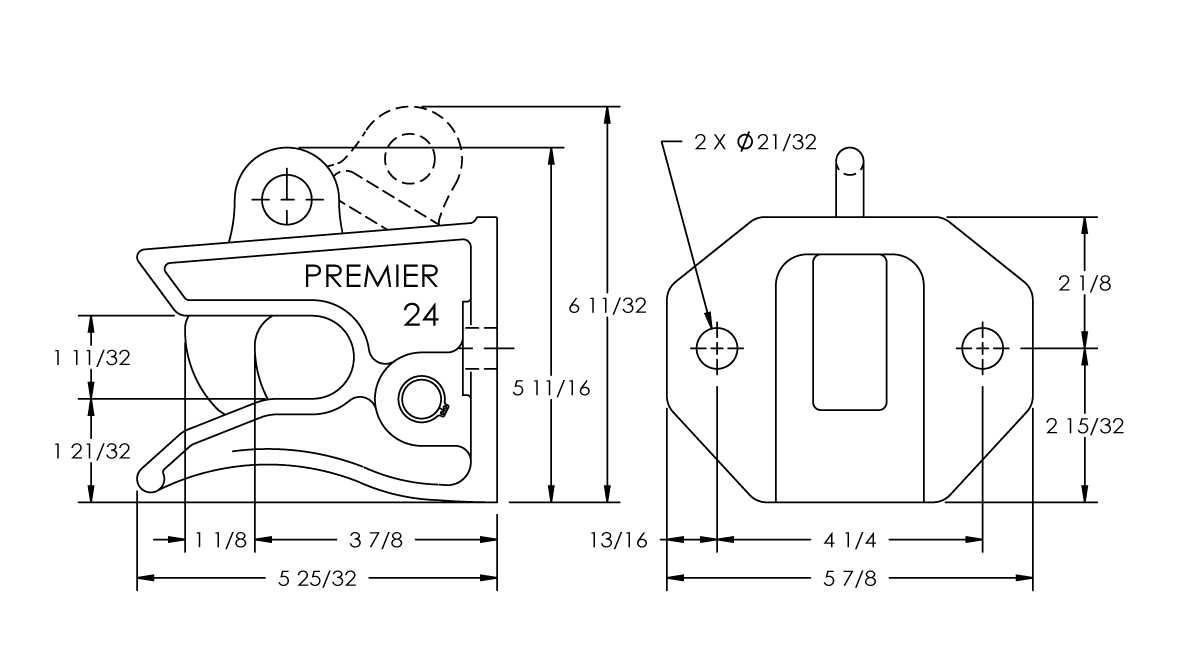

Drawings

Installation

24 Coupling Installation

Compatible Drawbar Eyes

Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
