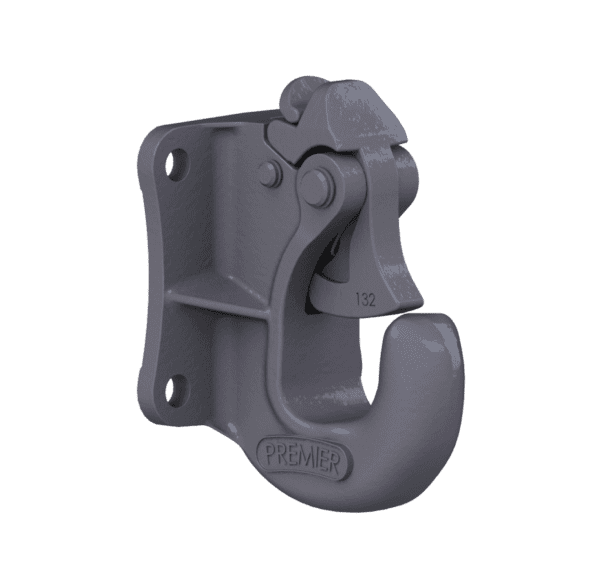

130 Coupling, Part #10001039

Popular for dolly haul back, the 10001039 model is ideal for light-to-medium duty applications. Like many of our couplings, the 10001039 model features a strong strike-resistant latching system that is easy to maintain and operate. The 10001039 coupling offers a 30,000 lbs. maximum gross trailer weight and 20,000 lbs. latch capacity, making it perfect for all of your everyday hauling needs.

Description

MODELS

Part #10001039
(Model #130)
Coupling only.

SPECIFICATIONS

Maximum Gross Trailer Weight 30,000 lbs. (13,608 kg)
Maximum Tongue Weight 6,000 lbs. (2,722 kg)
Ultimate Latch Capacity 20,000 lbs. (9,072 kg)
Maximum Eye X-Section 1 11/16 in. (43 mm)
Minimum Eye Opening 2 in. (51 mm)
Unit Weight 14.5 lbs. (6.6 kg)
  • Custom Truck Accessories

    130pk Parts Kit, Part #10001043

    The 130pk parts kit is your parts replacement kit for our 130, 240, 240K, and 240KL couplings. Order yours today at Premier Manufacturing.

  • Custom Truck Accessories

    Wear Gages, Part #10000048 (Legacy #14000)

    <span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

Below are the Compatible Drawbar Eyes, to see the full reference chart click here.

Additional information

MGTW
