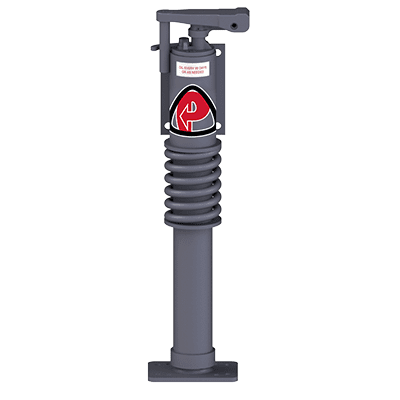

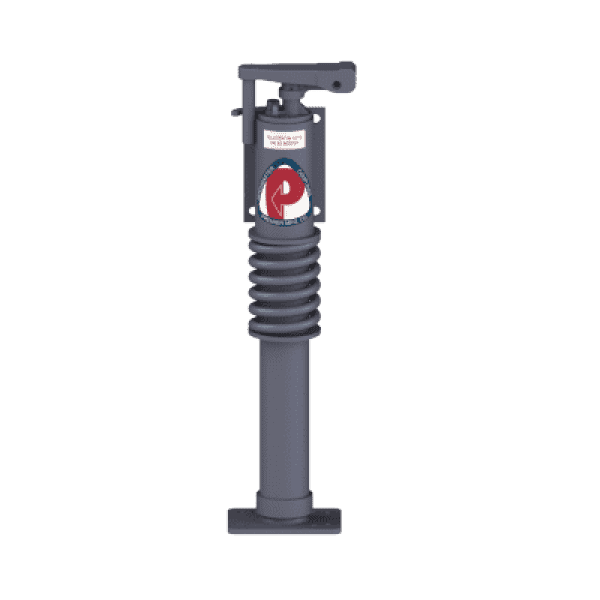

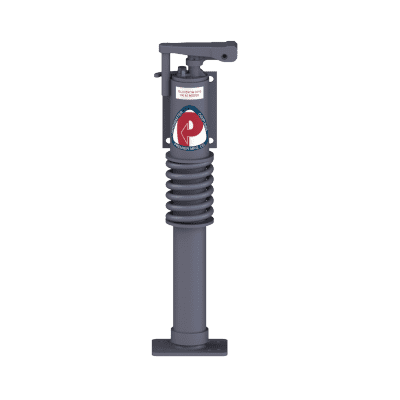

600 Jiffy Jack

Premier’s 600 Series Jiffy Jacks are time savers by allowing the jack to be lowered to the ground or raised into the retracted position without having to crank the handle, see example below. Premier pioneered this design with speed of use as the focal point. The result is a jack that simply outperforms others in its class. The 600 jiffy jack is the jack of choice for many fleets around the world.
* “Jiffy Quick Release” for instant, one-lever lowering and retracting of the leg without cranking.
* Quick action, spring-activated, folding handle that seats in a positive position for travel. This keeps the handle short, compact, and out of the way.
* DOM inner and outer tubes provide a strong precision fit, reducing penetration of outside contaminants.
* Oil cup for convenient lubrication of power screw.
* Custom mounting options allow mounting plate to be factory welded anywhere on the outside tube, or shipped loose for customer installation (available on most models.)

Category: Trailer Jacks

Description
Additional information

Description

SPECIFICATIONS

Maximum Capacity Operational:	5,000 lbs. (2,268 kg)
Maximum Capacity Static:	10,000 lbs. (4,536 kg)

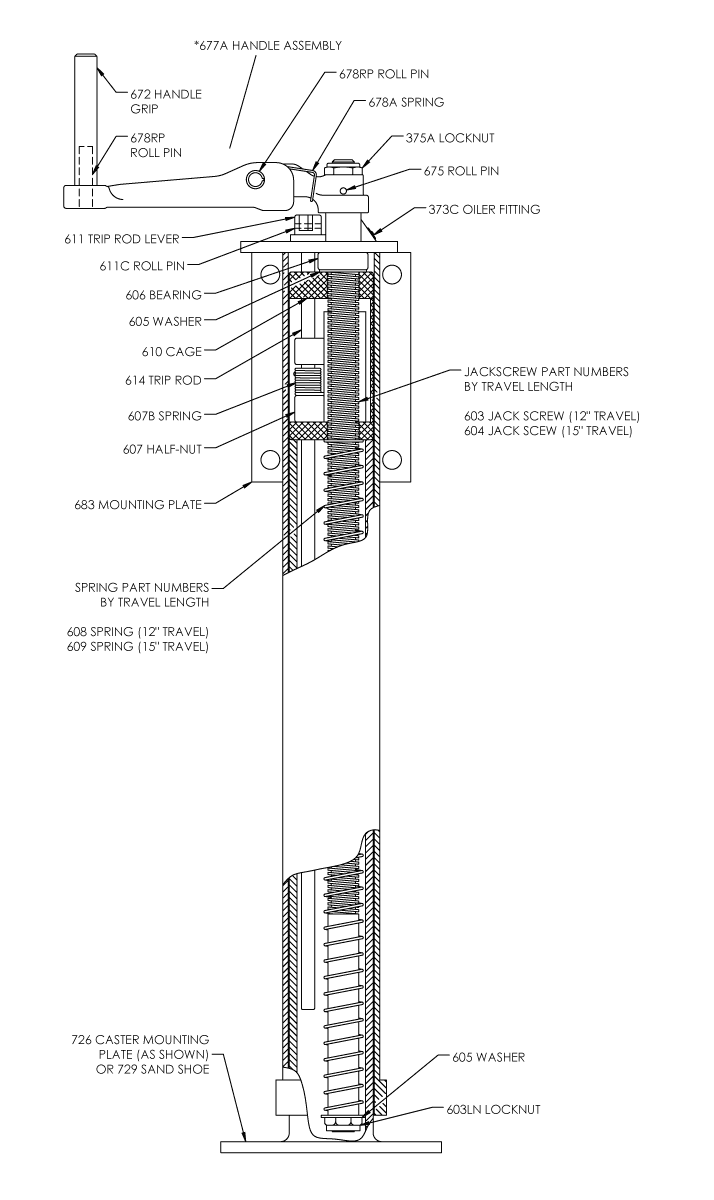

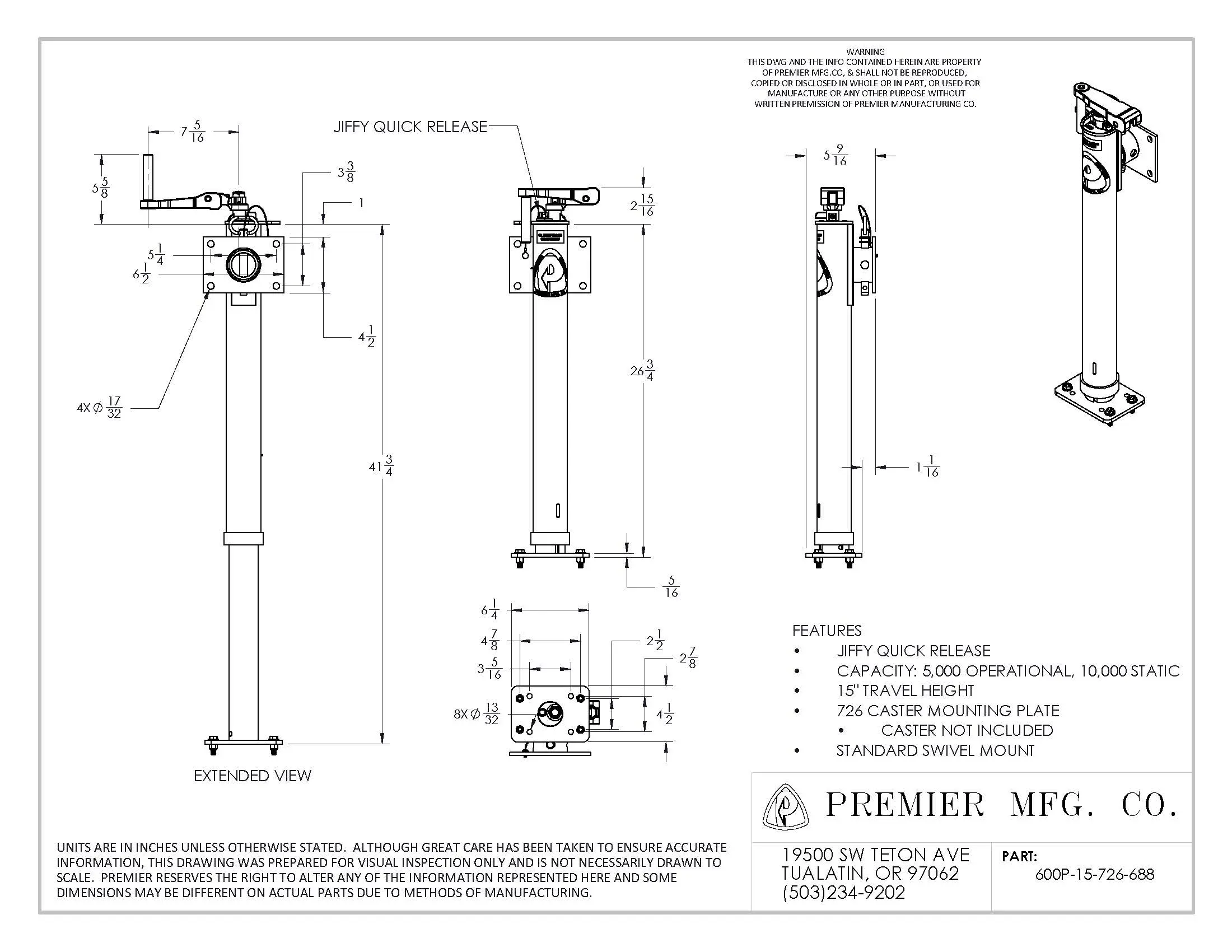

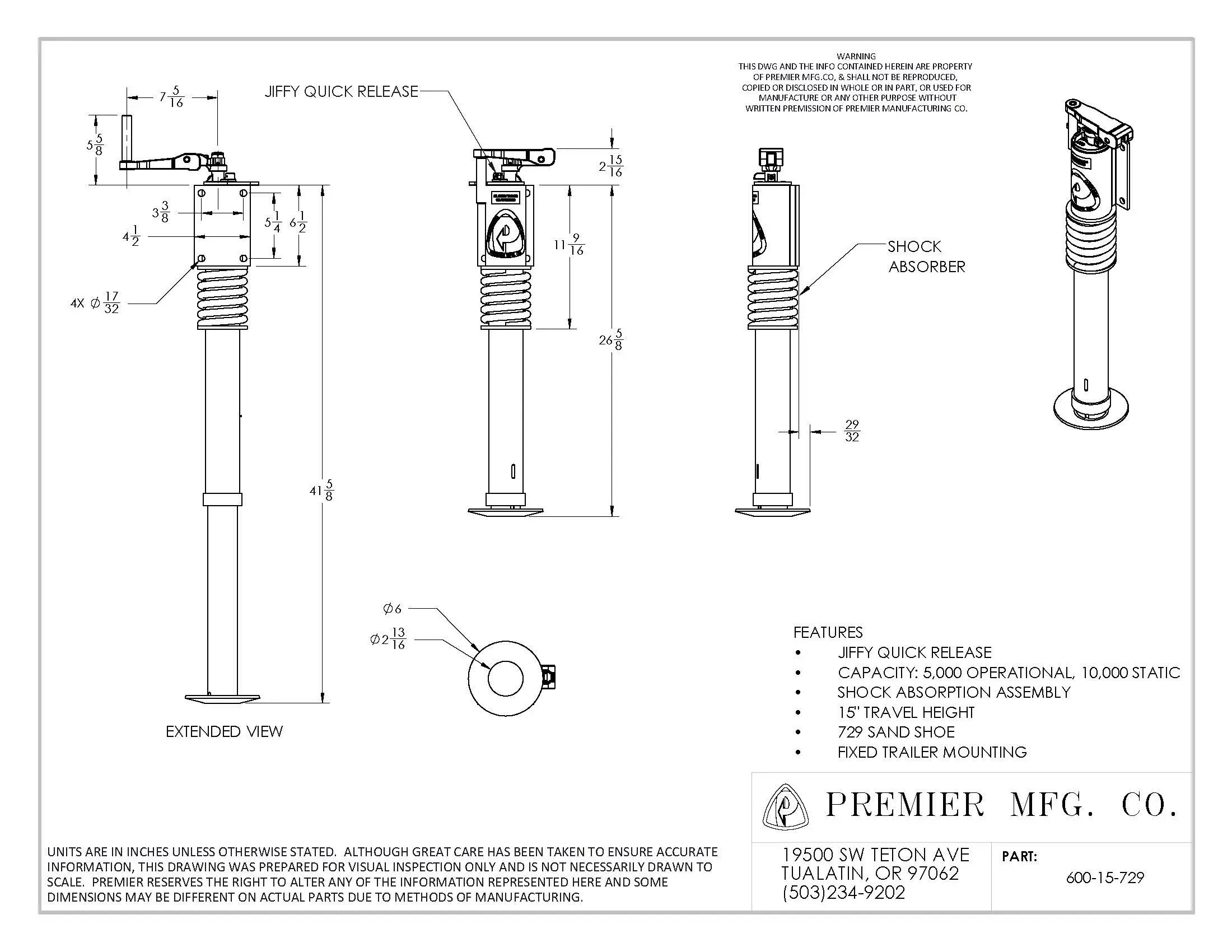

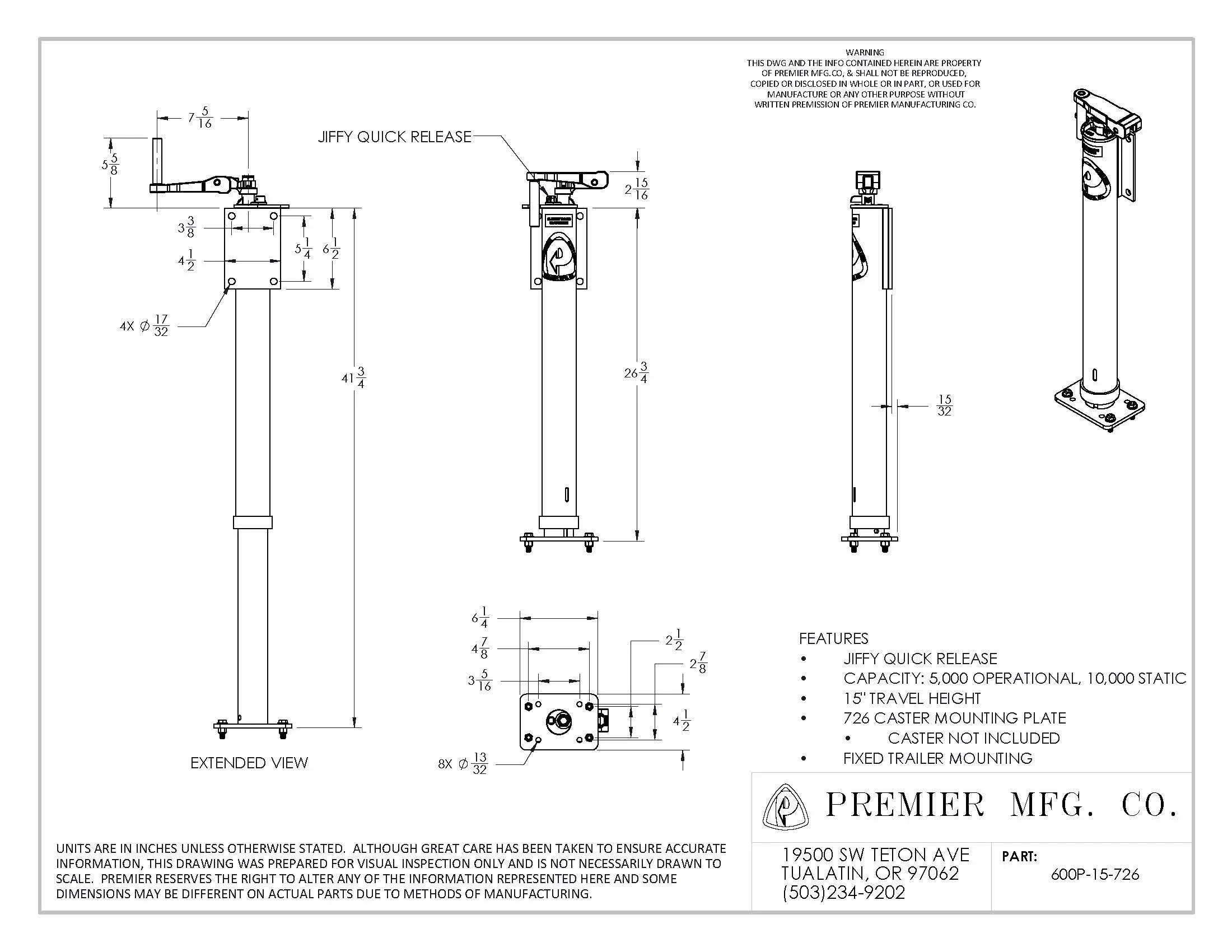

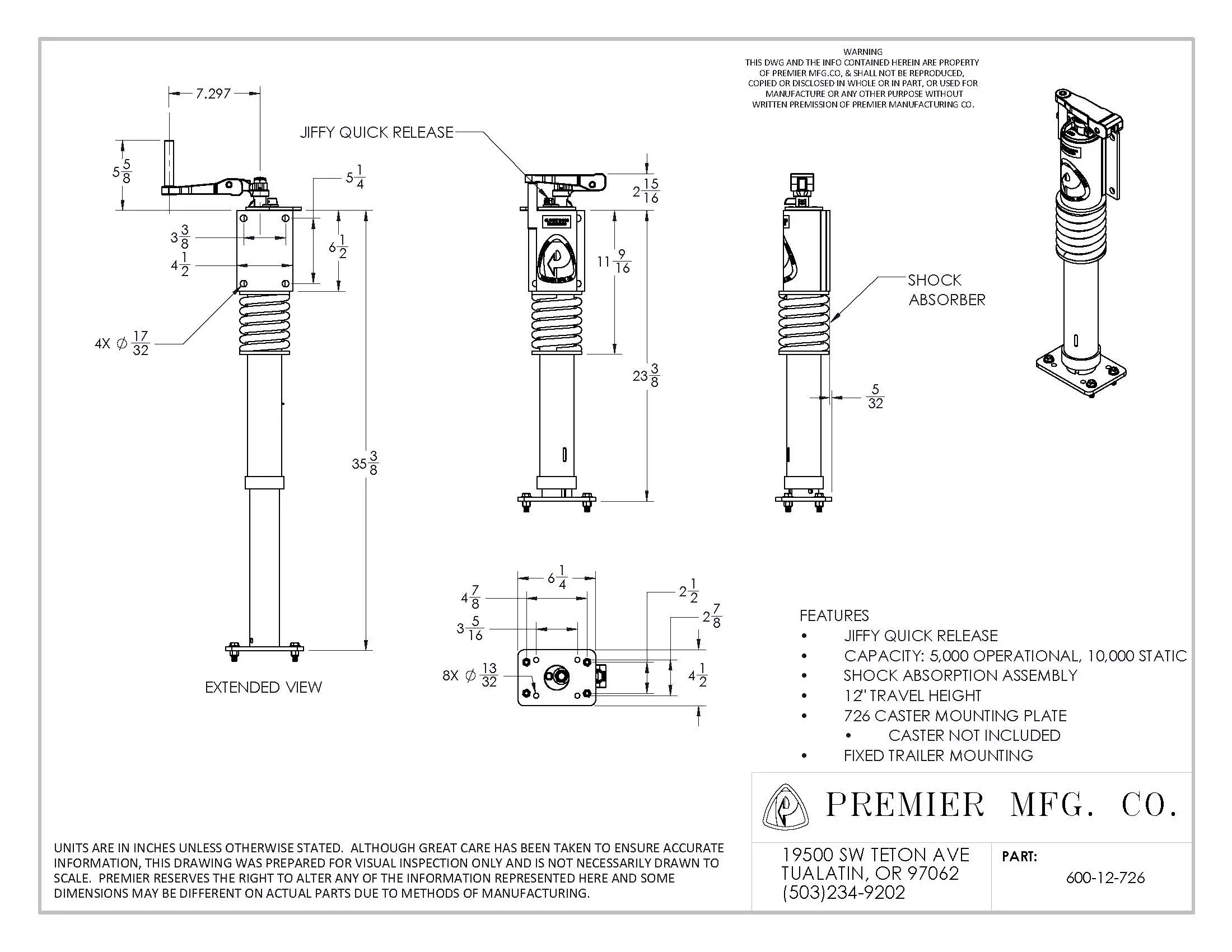

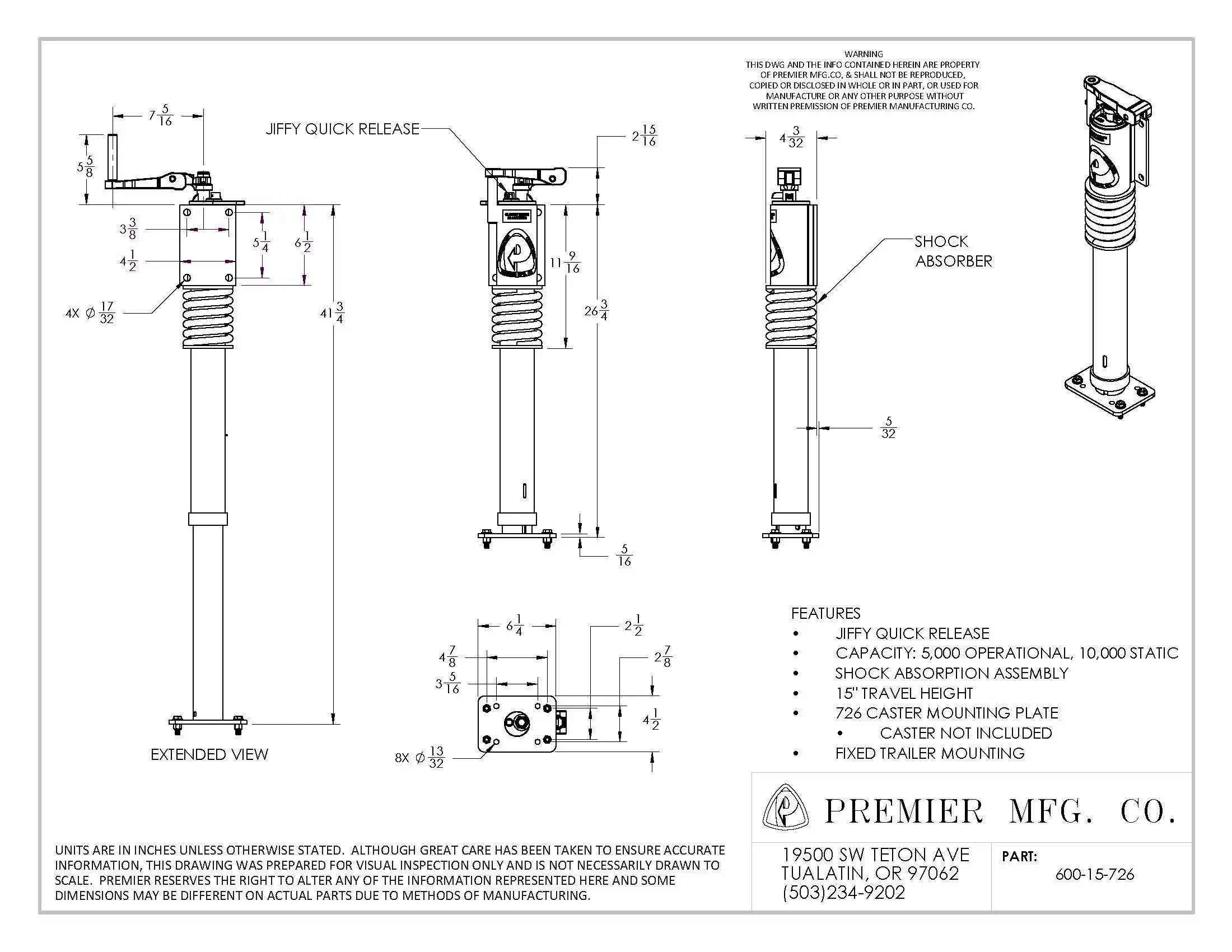

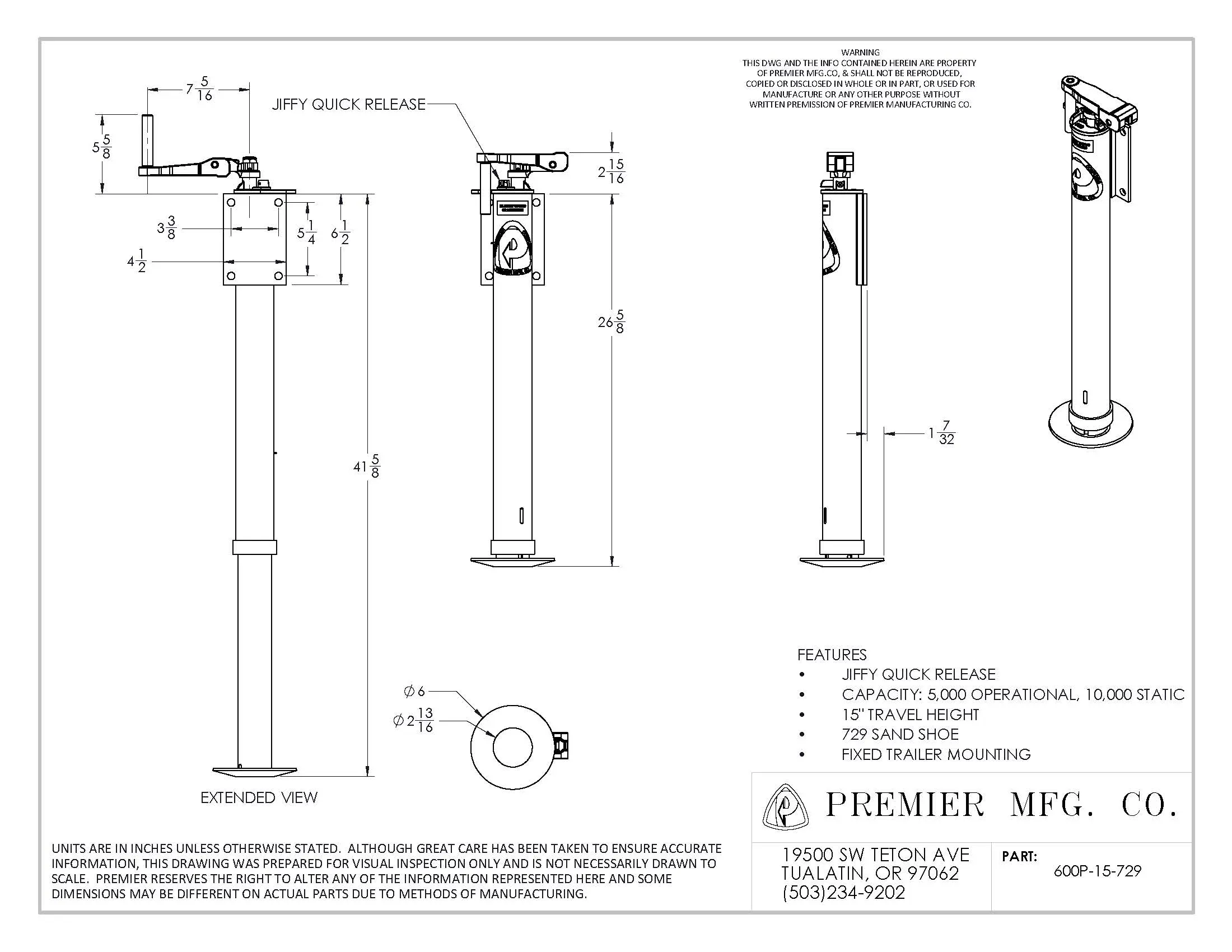

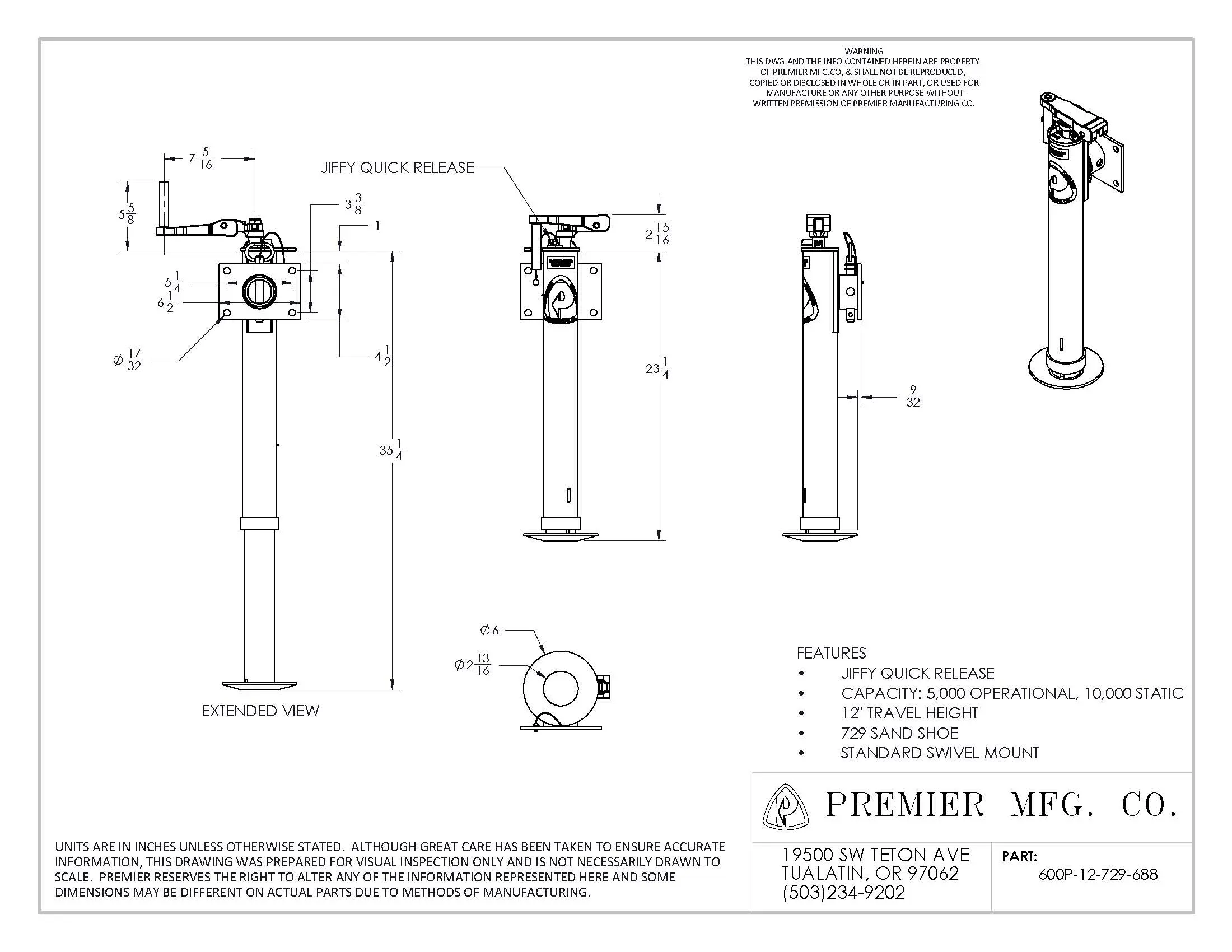

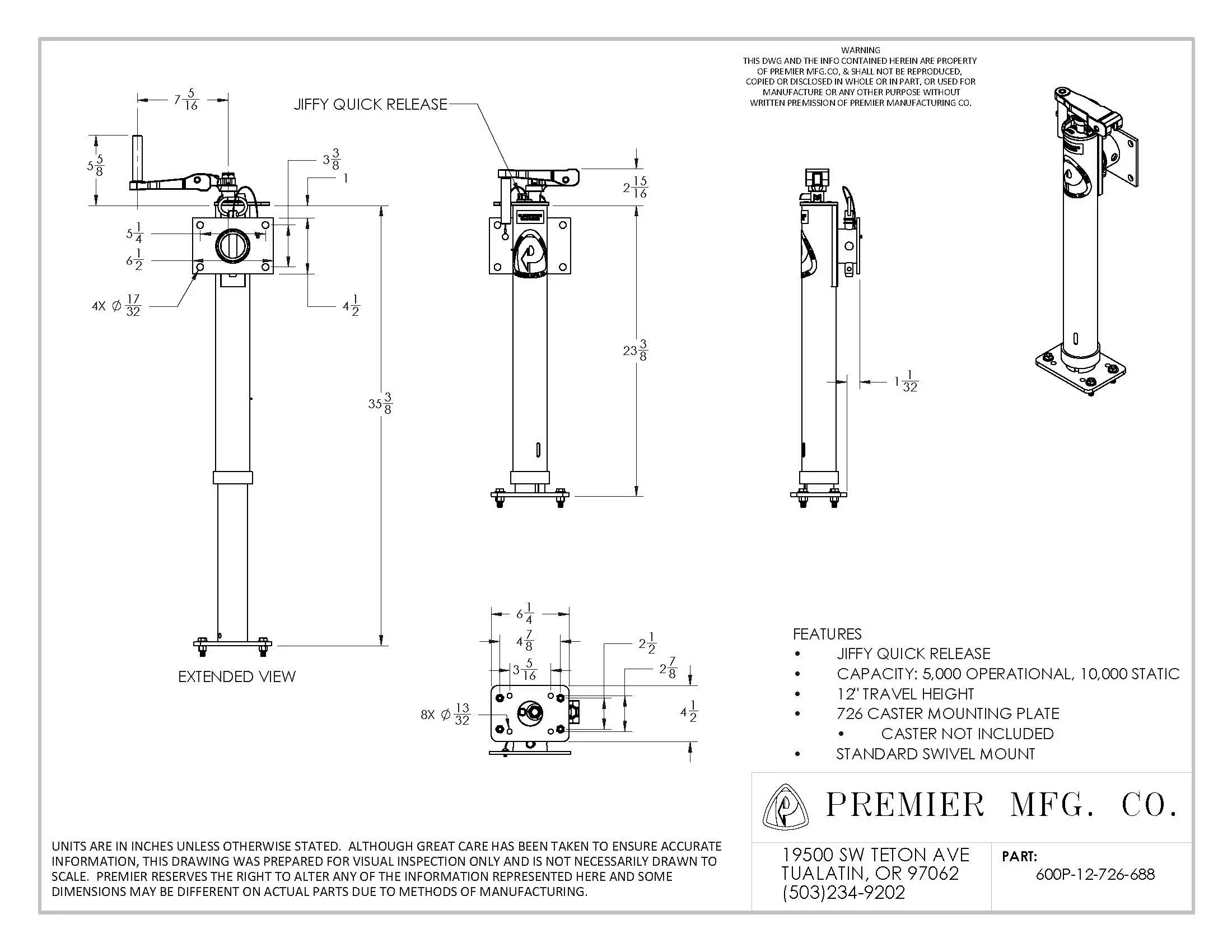

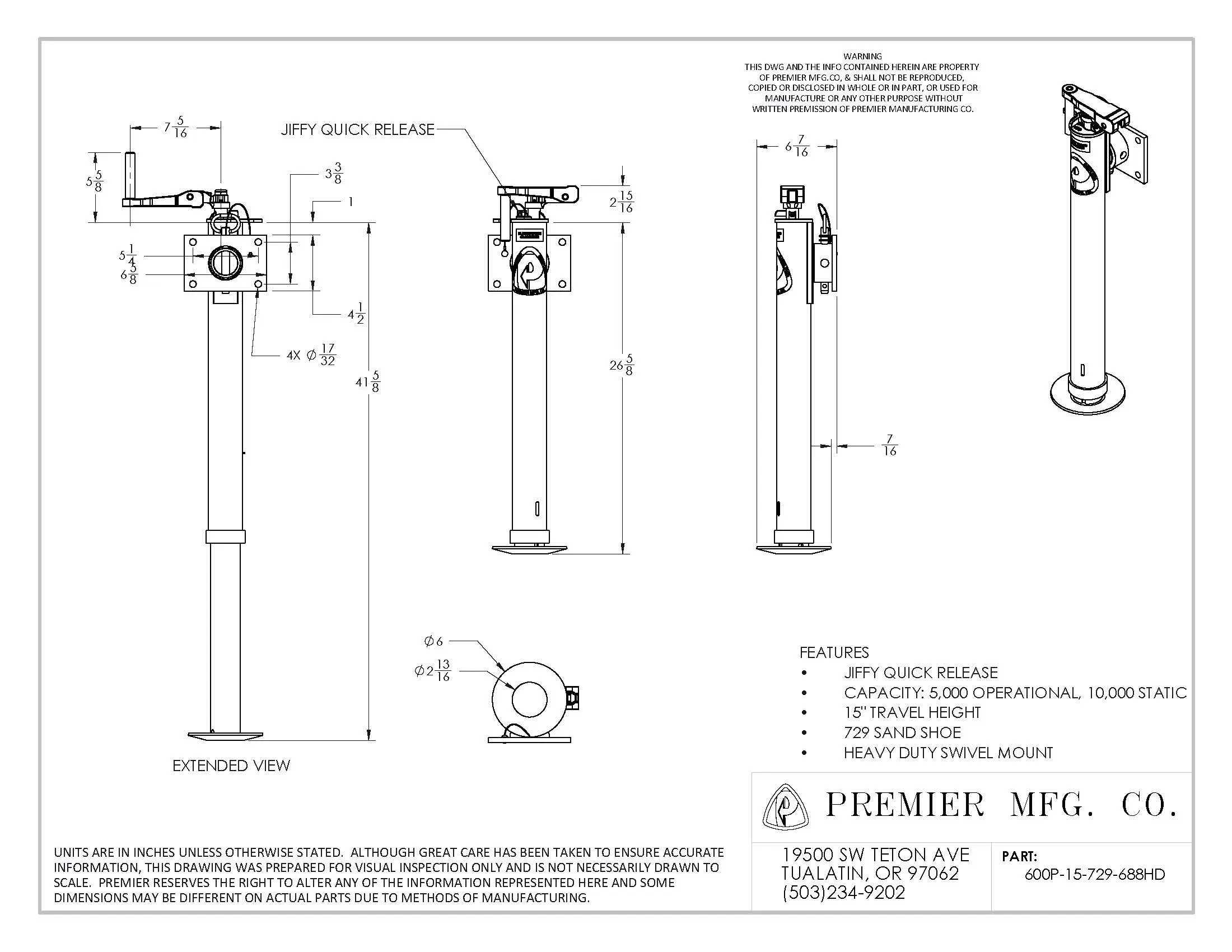

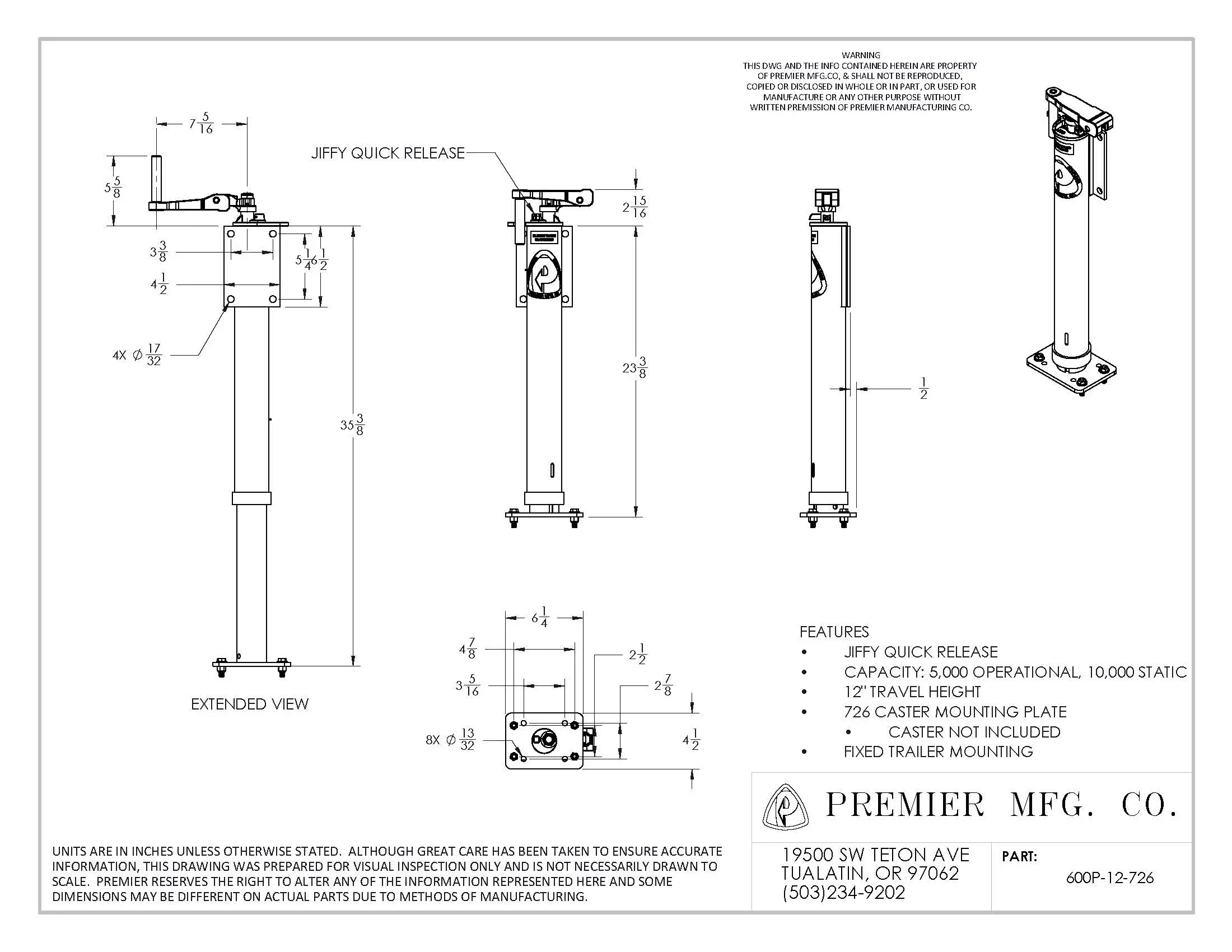

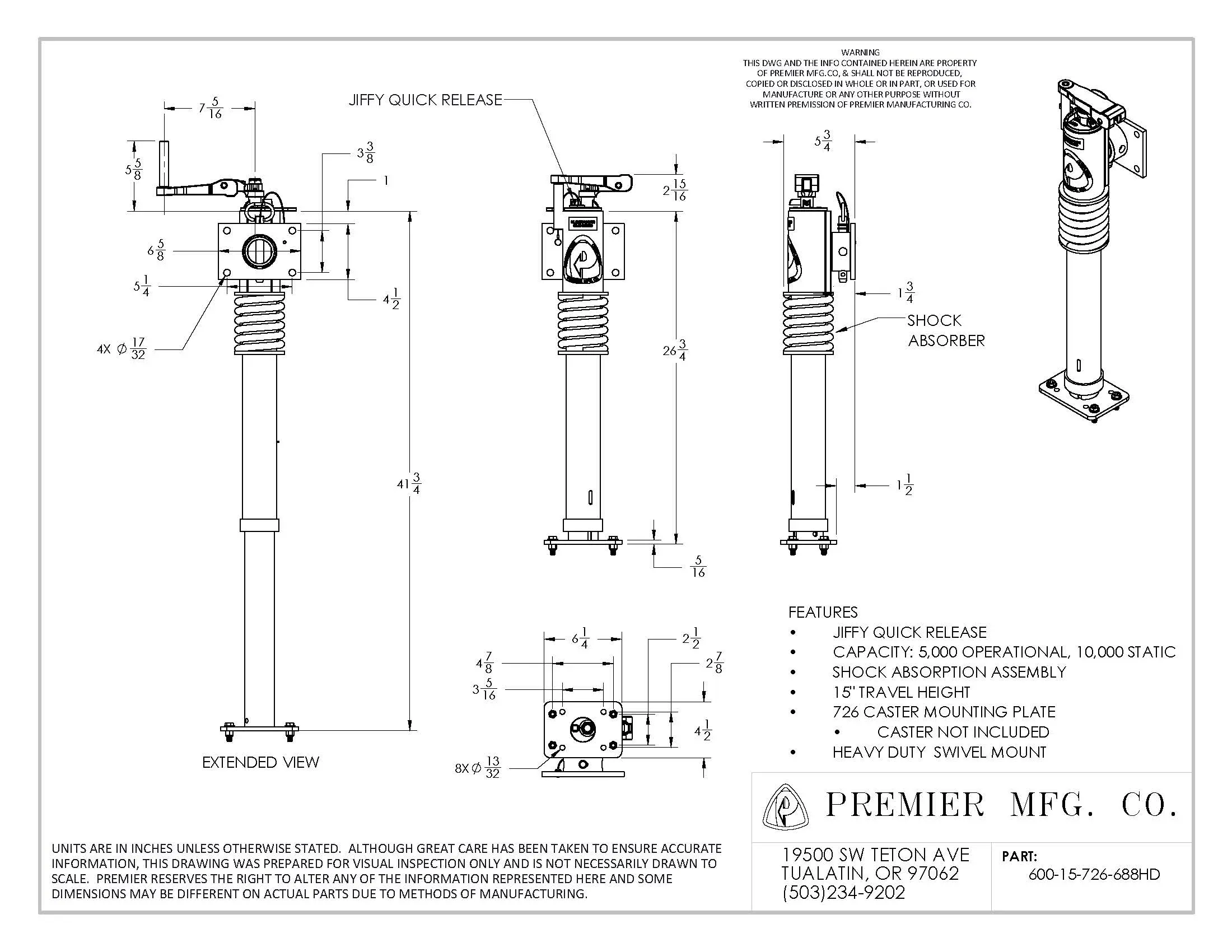

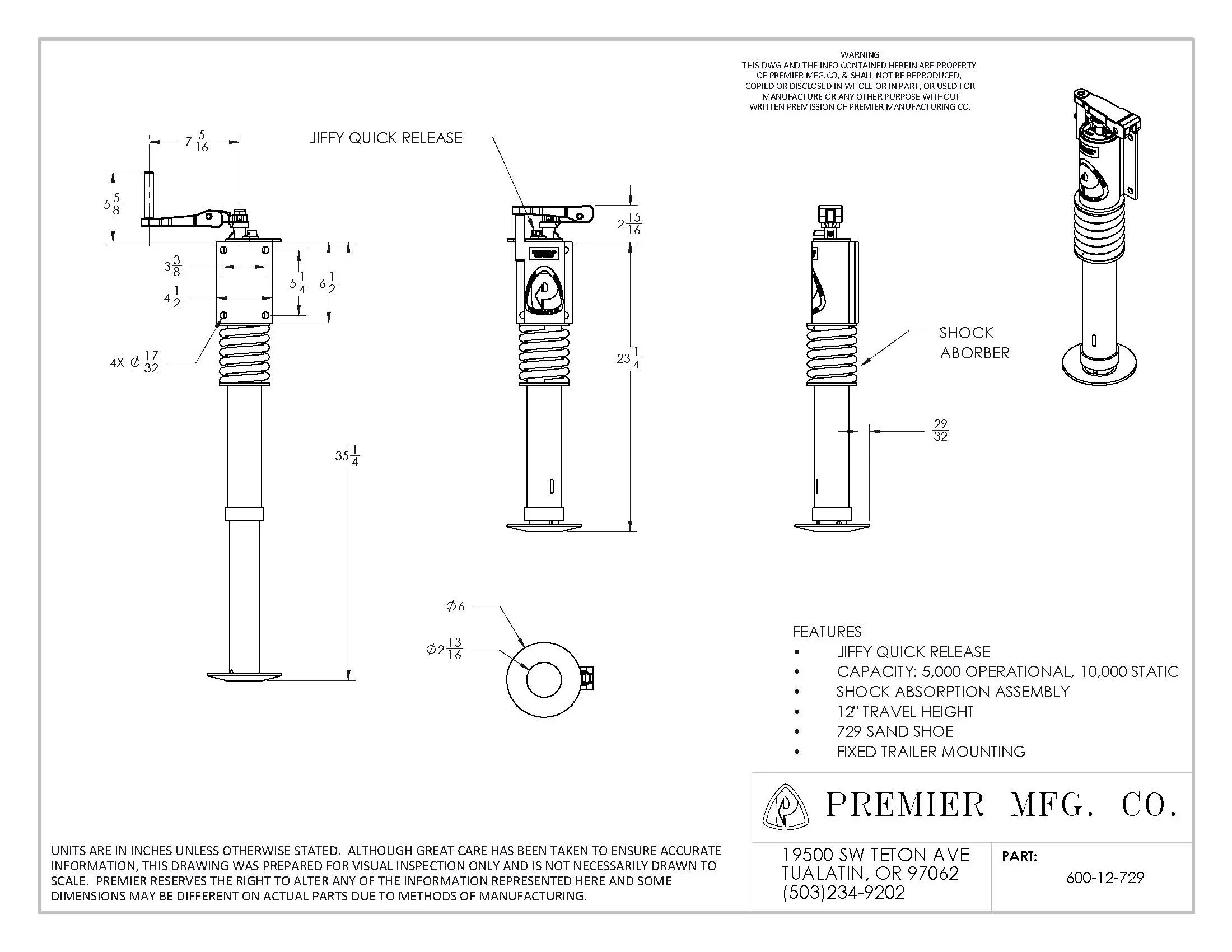

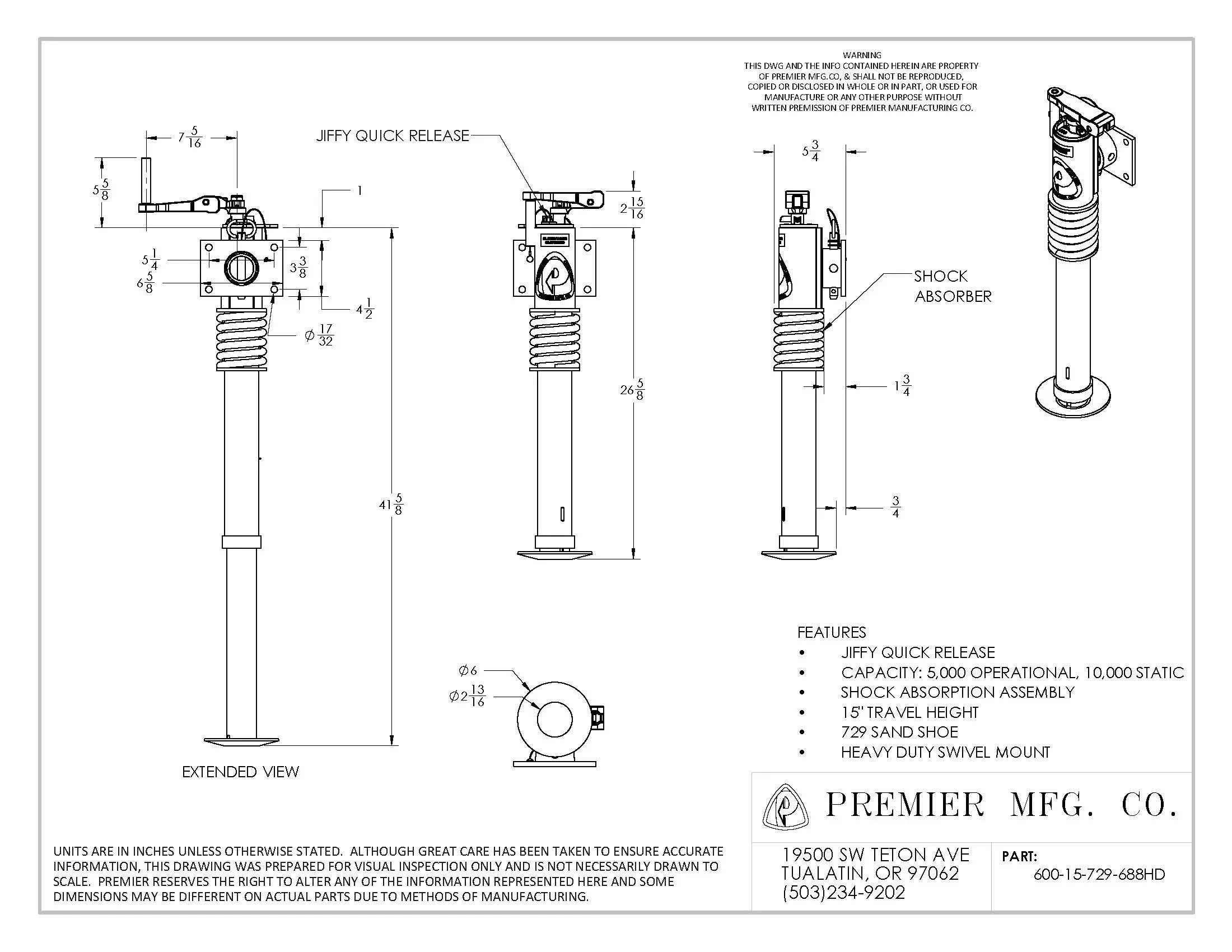

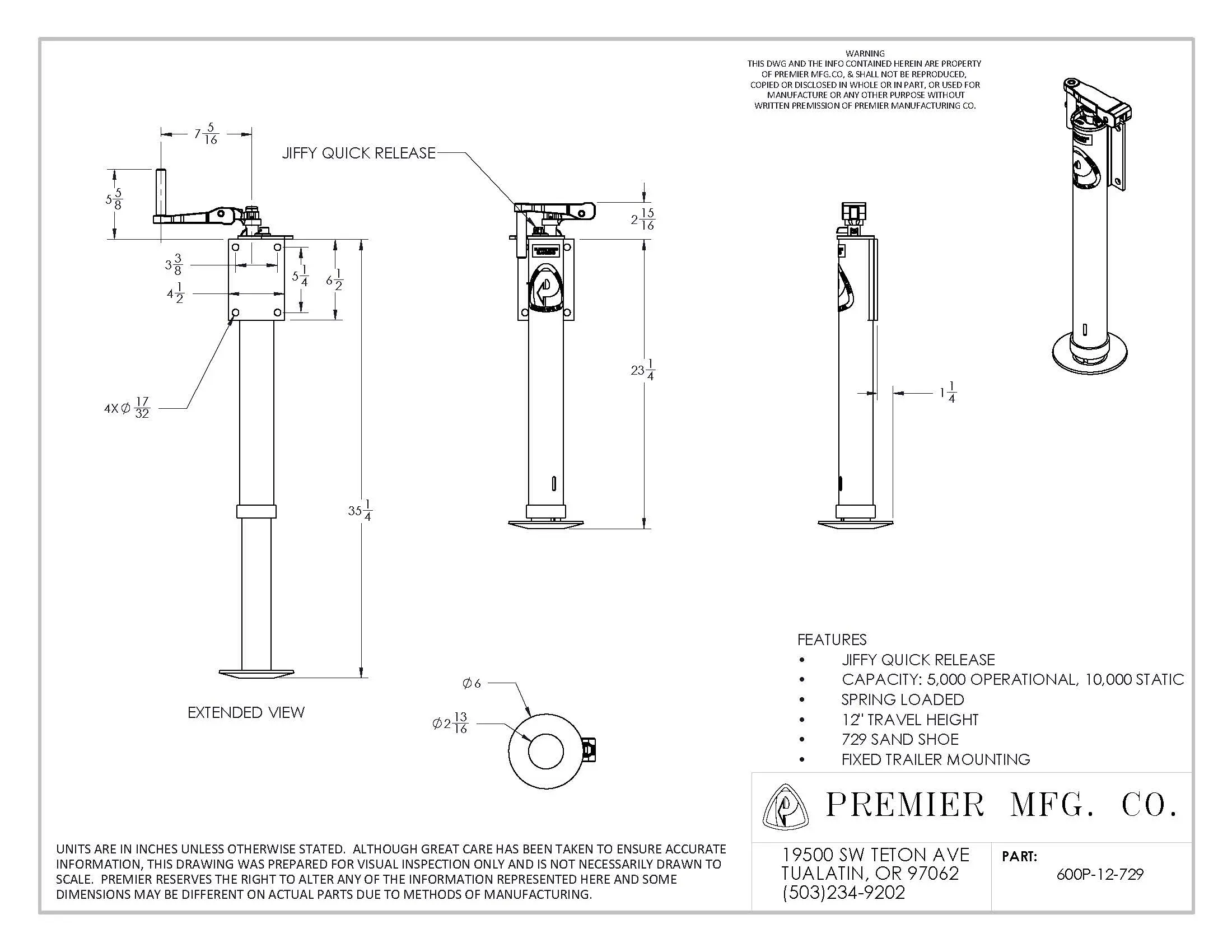

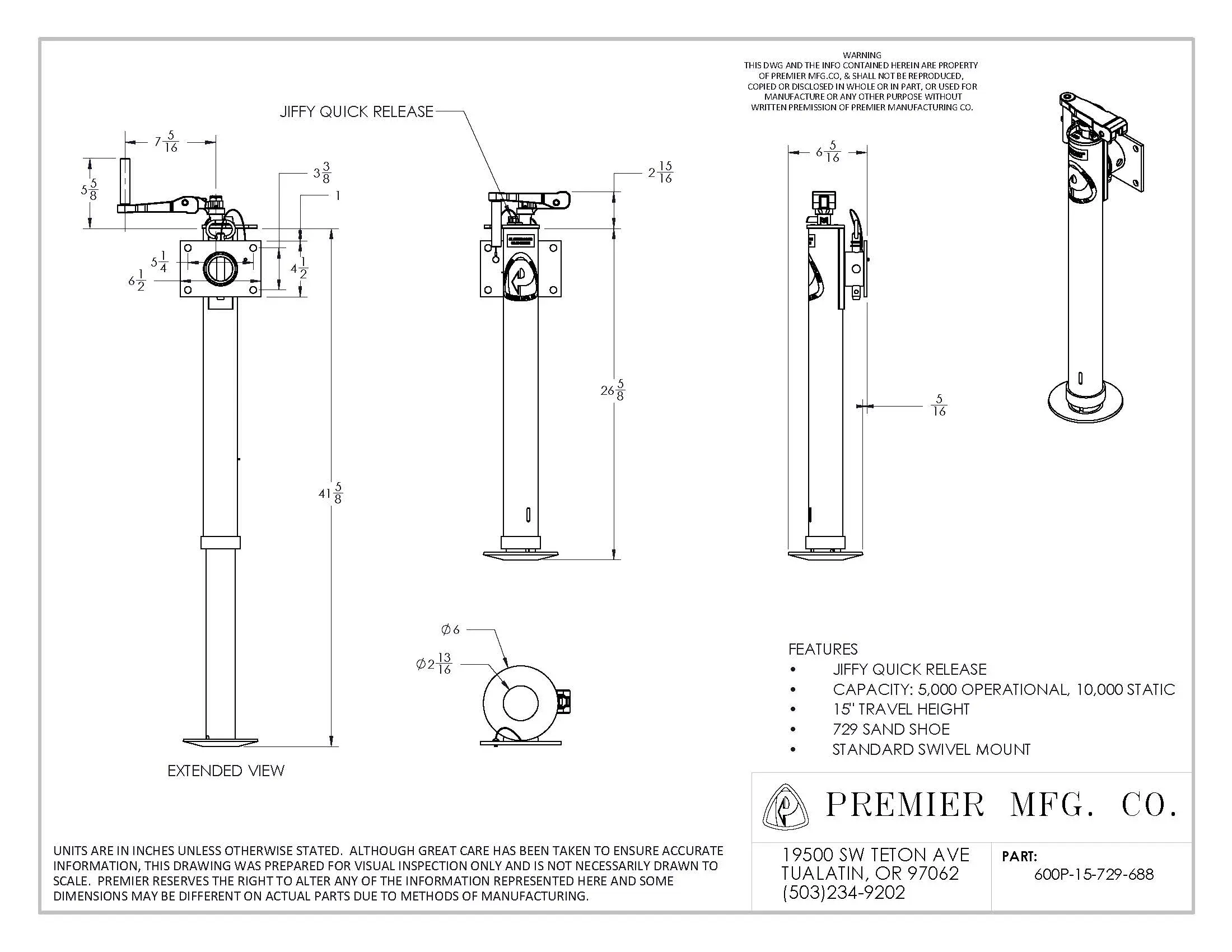

Drawings

Similar or Alternatives

Trailer Jacks

700 Standard Jack

<span data-sheets-value="{"1":2,"2":"The Premier 700 Standard Jack has been engineered and built to the same stringent specifications as our 600 jiffy jack. Designed for long life with minimal maintenance, the 700 is easily adapted to nearly any application.\n* Quick action, spring-activated, folding handle that seats in a positive position for travel. This keeps the handle short, compact, and out of ...
Trailer Jacks

800 Utility Jack

<span data-sheets-value="{"1":2,"2":"Premier's 800 Utility Jack was designed to accommodate light-to-medium duty applications.\n* Quick action, spring-activated, folding handle that seats in a positive position for travel. This keeps the handle short, compact, and out of the way.\n* Strong, precision fit square tubing helps reduce penetration of outside contaminants.\n* Tube support collar on outside tube for added strength.\n* Oil cup for ...

Caster Options

Caster Type	Series	Capacity	Overall Height	Wheel Size	Unit Weight
Steel	620	1,200 lbs. (544.3 kg)	7 1/4 in. (184 mm)	6 in. (152 mm)	10 lbs. (4.5 kg)
Steel	620P	1,200 lbs. (544.3 kg)	7 1/2 in. (191 mm)	6 in. (152 mm)	7 lbs. (3.2 kg)
Steel	637**	1,200 lbs. (544.3 kg)	7 1/4 in. (184 mm)	6 in. (152 mm)	11 lbs. (5.0 kg)
Steel	745*	1,400 lbs. (636.4 kg)	9 1/2 in. (241 mm)	8 in. (203 mm)	12 lbs. (5.5 kg)
Molden Rubber	623	800 lbs. (362.9 kg)	7 1/4 in. (184 mm)	6 in. (152 mm)	6 lbs. (2.7 kg)
Molden Rubber	746**	800 lbs. (362.9 kg)	10 1/8 in. (257 mm)	8 in. (203 mm)	11 lbs. (5.0 kg)
Pneumatic	720/*	390 lbs. (176.9 kg)	13 in. (330 mm)	10 in. (254 mm)	14 lbs. (6.4 kg)
