700 Standard Jack

700 Standard Jack

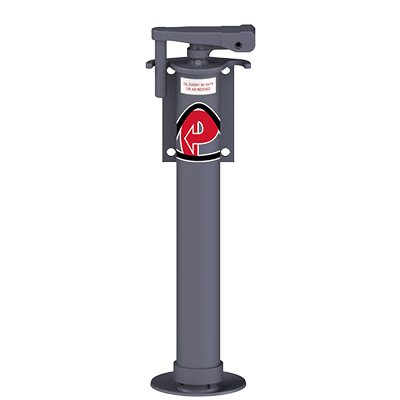

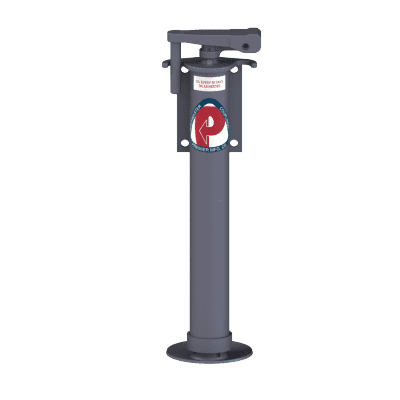

The Premier 700 Standard Jack has been engineered and built to the same stringent specifications as our 600 jiffy jack. Designed for long life with minimal maintenance, the 700 is easily adapted to nearly any application.
* Quick action, spring-activated, folding handle that seats in a positive position for travel. This keeps the handle short, compact, and out of the way.
* DOM inner and outer tubes provide a strong precision fit, reducing penetration of outside contaminants.
* Tube support collar on outside tube for added strength.
* Oil cup for convenient lubrication of main bearing and power screw.
* Custom mounting options allow mounting plate to be factory welded anywhere on the outside tube, or shipped loose for customer installation (available on most models.)

Category:

Description

SPECIFICATIONS

Maximum Capacity Operational:5,000 lbs. (2,268 kg)
Maximum Capacity Static:10,000 lbs. (4,536 kg)

Jack Selection Guide

Similar or Alternatives

  • Trailer Jacks

    600 Jiffy Jack

    <span data-sheets-value="{"1":2,"2":"Premier's 600 Series Jiffy Jacks are time savers by allowing the jack to be lowered to the ground or raised into the retracted position without having to crank the handle, see example below. Premier pioneered this design with speed of use as the focal point. The result is a jack that simply outperforms others in its class. The ...

  • Trailer Jacks

    800 Utility Jack

    <span data-sheets-value="{"1":2,"2":"Premier's 800 Utility Jack was designed to accommodate light-to-medium duty applications.\n* Quick action, spring-activated, folding handle that seats in a positive position for travel. This keeps the handle short, compact, and out of the way.\n* Strong, precision fit square tubing helps reduce penetration of outside contaminants.\n* Tube support collar on outside tube for added strength.\n* Oil cup for ...

Caster Options

Product PhotoCaster TypeSeriesCapacityOverall HeightWheel SizeUnit Weight
Steel6201,200 lbs. (544.3 kg)7 1/4 in. (184 mm)6 in. (152 mm)10 lbs. (4.5 kg)
Steel620P1,200 lbs. (544.3 kg)7 1/2 in. (191 mm)6 in. (152 mm)7 lbs. (3.2 kg)
Steel637**1,200 lbs. (544.3 kg)7 1/4 in. (184 mm)6 in. (152 mm)11 lbs. (5.0 kg)
Steel745*1,400 lbs. (636.4 kg)9 1/2 in. (241 mm)8 in. (203 mm)12 lbs. (5.5 kg)
Molden Rubber623800 lbs. (362.9 kg)7 1/4 in. (184 mm)6 in. (152 mm)6 lbs. (2.7 kg)
Molden Rubber746**800 lbs. (362.9 kg)10 1/8 in. (257 mm)8 in. (203 mm)11 lbs. (5.0 kg)
Pneumatic720*/**390 lbs. (176.9 kg)13 in. (330 mm)10 in. (254 mm)14 lbs. (6.4 kg)

*Not recommended for 600 Series Jiffy Jacks
**Not recommended for 800 Series Jacks

Optional Accessories

700RK:  Repair Kit for 700 Series Inside Jack Tubes

Additional information

Maximum Capacity Operational
