690LRK Parts Kit

690LRK Parts Kit

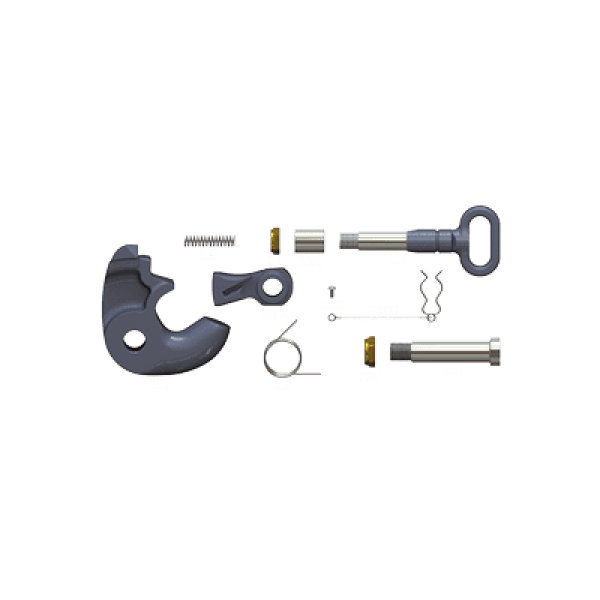

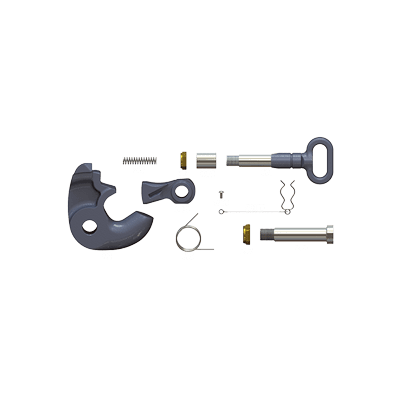

Premier’s 690LRK Parts Kit includes component parts to repair our 690L Coupling. We also offer the 691L Handle Assembly if you need to replace those components only.

IMPORTANT WARNING: All 294 Bolts are considered a serviceable part and cannot surpass 1-year of use. Reference the Installation/Service tab below for important service guideline information.

Description

MODELS

Model #	Part #	Description
690LRK	10001223	Parts Kit

ADDITIONAL 690 PARTS KITS

Model #	Part #	Description	Includes
294K	10001146	Bolt Pack	294 Bolt, 297 Locknut
691L	10004798	Handle Assembly	691 Handle, 691C Bushing, 387 Bushing

PARTS KIT CONTENTS

Model #	Part #	Description
16DS*	10001102	Drive Screw
266*	10000290	Spring
294**	10001145	Bolt
297**	10000323	Locknut
387***	10000350	Locknut
581EF*	10004794	Clip & Cable (16DS Drive Screw Incl.)
691***	10001226	Handle Only
691C***	10001228	Bushing
692*	10001230	Swivel Hook
693L*	10001233	Locking Pawl, Left
695*	10001237	Spring
*		Available in RK & Individually
**		Not Available Individually. Available in RK or as 294K Bolt Pack
***		Available in RK, Individually, or as 691L Handle Assy.
