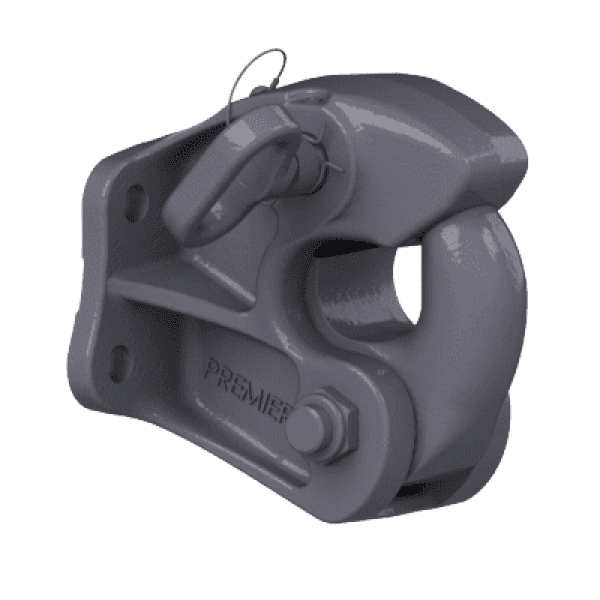

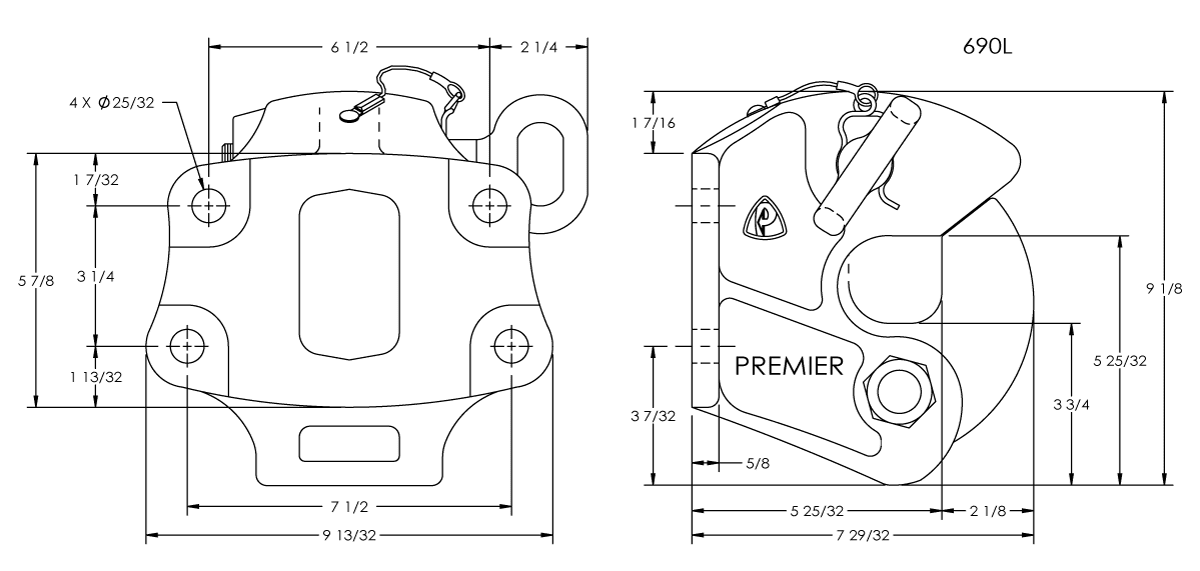

690L Drop Pintle Coupling

Premier’s 690L Drop Pintle Coupling offers similar features to our 590 (discontinued), but with higher load capacities. The pintle hook/horn is made of our exclusive Premalloy for maximum wear resistance. With a maximum gross trailer weight of 90,000 lbs., the 690L is perfect for all of your mid-to-heavy-duty applications.
IMPORTANT WARNING: All 294 Bolts are considered a serviceable part and cannot surpass 1-year of use.  See our Installation/Service tab below for additional information.


Description

MODELS

Model #Part #Description
690L10001221690L Coupling, Left-side Handle

ACCESSORY & REPLACEMENT PARTS

Model #Part #Description
294K10001146294 Bolt & 297 Locknut
50710000154Bolt Kit
581EF10004794Clip & Cable (16DS Drive Screw Incl.)
690LRK10001223Parts Kit
691L10004798Handle Assembly
1401410000062Wear Gage
1402610000071Wear Gage, Latch Gage Bar

SPECIFICATIONS

Maximum Gross Trailer Weight90,000 lbs. (40,823 kg)
Maximum Tongue Weight18,000 lbs. (8,165 kg)
Upward Vertical Capacity40,000 lbs. (18,144 kg)
Maximum Eye X-Section1 11/16 in. (43 mm)
Minimum Eye Opening2 3/8 in. (60 mm)
Unit Weight41.8 lbs. (19 kg)
  • Custom Truck Accessories

    690LRK Parts Kit

    <span data-sheets-value="{"1":2,"2":"The 690LRK parts kit (part #10001223) is your parts replacement kit for our 690L coupling. At Premier Manufacturing, you'll find ...

  • Custom Truck Accessories

    Bolt Kits

    Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system.  You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …

  • Custom Truck Accessories

    Wear Gages

    <span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
