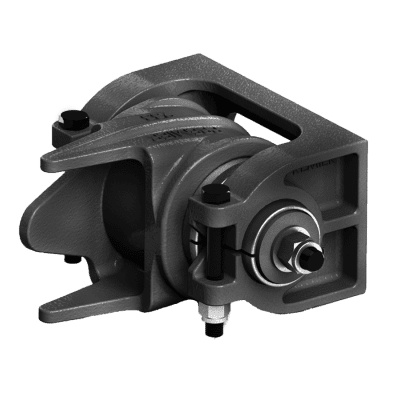

930A Hinge Assembly, Part #10001024

* * NEW PRODUCT * *
Our new product Part #10001024 (Model #930A) Hinge Assembly is great for all of your semi-truck pulling needs. It accepts 2 inch x 4 inch rectangular tubing, and it can pull up to 150,000 lbs. Order from a distributor today!

Category:

Description



MODELS

Part #10001024 (Model #930A) Pair of Part #10001024 (Model #930A) Hinges with Part #10001032 (Model #Part #10001032 (Model #934A)) Poly Bushings.

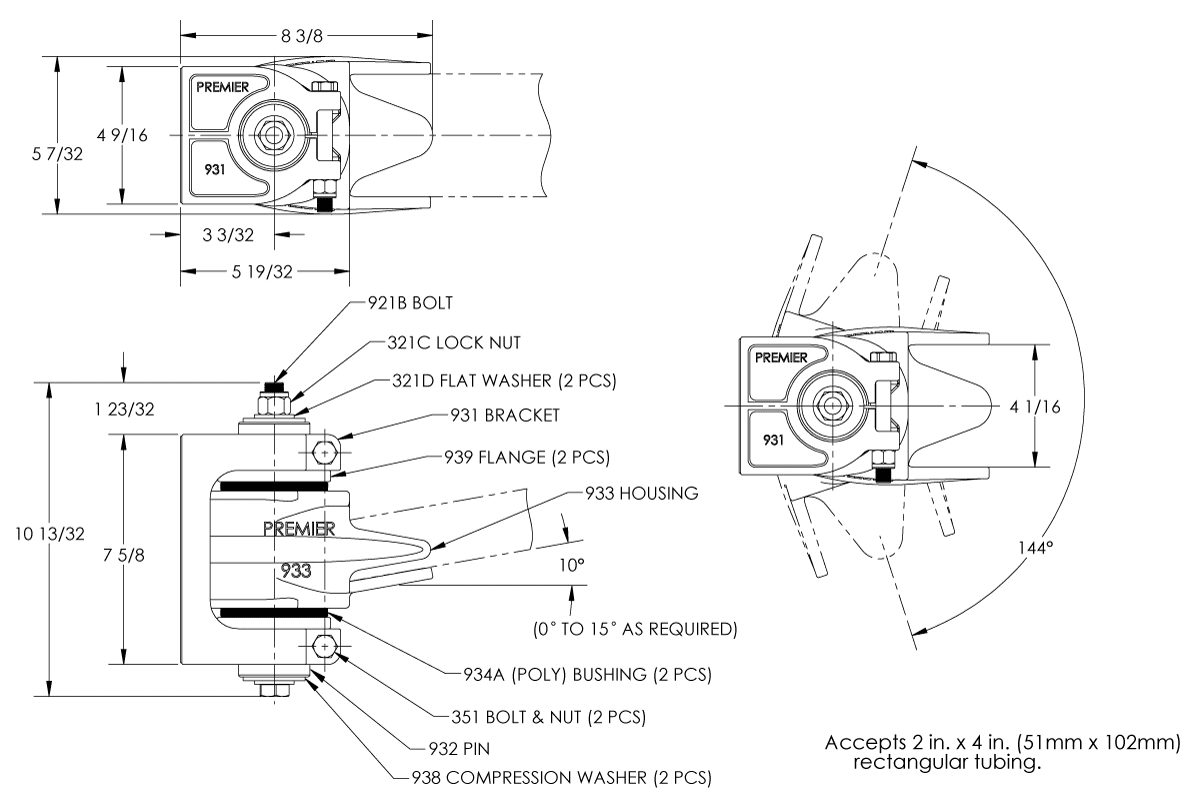

Parts included with each hinge: Part #10000946 (Model #321C) Locknut, Part #10000947 (Model #321D) Flat Washers (2), Part #10004756 (Model #351) Bolt & Nut (2), Part #10000982 (Model #Part #10000981 (Model #434)A) Spacer, Part #10001023 (Model #921B) Bolt, Part #10001027 (Model #931) Bracket, Part #10001029 (Model #932) Pin, Part #10001030 (Model #933) Housing, Part #10001032 (Model #934A) Bushing (2), Part #10001033 (Model #938) Elastomer-Washer (2), Part #10001035 (Model #939) Flange (2).

SPECIFICATIONS

Max. Gross Trailer Weight (pair): 150,000 lbs. (68,039 kg)
Unit Weight (pair): 59.2 lbs. (26.8 kg)
