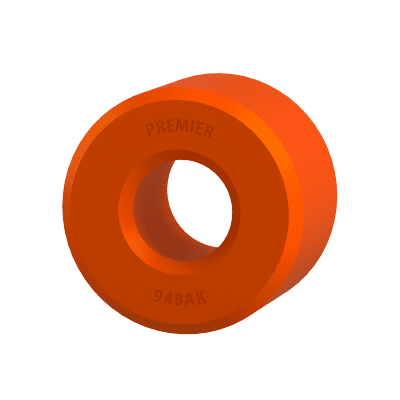

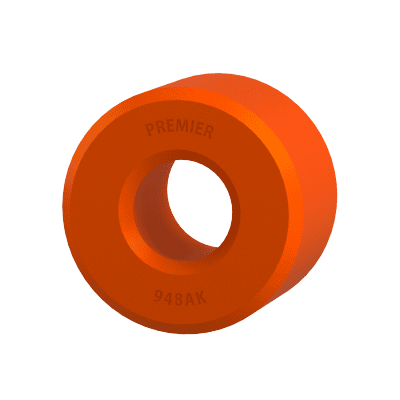

948AK Polyurethane Bushing

Premier’s 948AK Poly Bushing can be ordered for replacement in our 956BK Front End Assembly and 307BK Front End Assembly KIT. It is also included in our 956BK-RK Repair Kit. Polyurethane bushings typically yield 2 to 3 times the service life of rubber. They are ideal and highly recommended for use in off-road and/or severe applications. Check out the Similar or Alternatives tab below to access important service information on the 956BK Front End Assembly. Patent Pending.
NOTE:  Each Front End Assembly requires (2) Bushings & (3) Washers

Description

MODELS

Model #Part #DescriptionFor Use With
948AK10000040Bushing, Poly307BK, 956BK, 956BK-RK

ACCESSORY & KIT PARTS

Model #Part #Description
307BK10000802Front End Assembly Kit (307K & 956BK Incl.)
949W10000894Washer, External Steel
955NK-A10000895Washer, Internal Polymer
955NK-B10000896Washer, External Polymer
956BK10000900Front End Housing, Poly Bushings
956BK-RK10000901Repair Kit

SPECIFICATIONS

Outside Diameter (O.D.)4 3/4 in. (121 mm)
Inside Diameter (I.D.)2 1/4 in. (57 mm)
Length3 1/2 in. (89 mm)
Unit Weight1.80 lbs.
