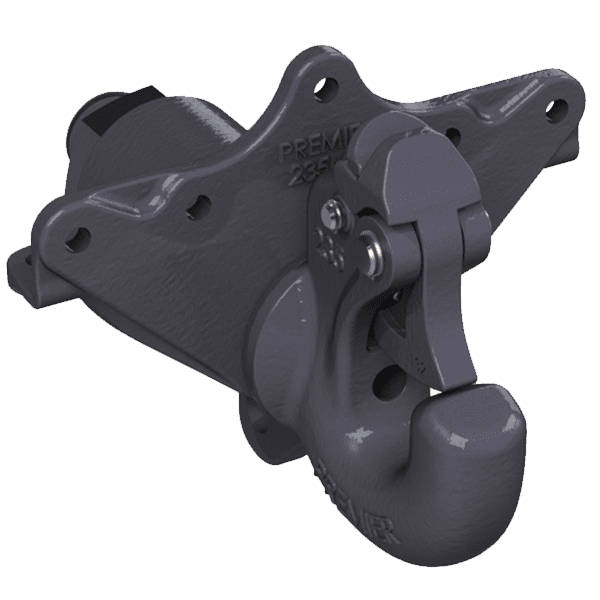

235SM Coupling

This crown-shaped shelf mount coupling is the king of the medium duty swivel-style couplings. The NEW 235SM swivel coupling is equipped with a urethane bushing to help absorb impact and dampen vibrations providing a smoother ride. Premier Manufacturing’s new 235SM series also offers a 60,000 lbs. maximum gross trailer weight and 20,000 lbs. latch capacity.

Category:

Description

MODELS

Model #Part#Description
235SM10005658235SM Coupling

SPECIFICATIONS

Maximum Gross Trailer Weight60.000 lbs. (27,215 kg)
Maximum Tongue Weight12,000 lbs. (5,433 kg)
Ultimate Latch Capacity20,000 lbs. (9,071 kg)
Maximum Eye X-Section1 11/16 in. (43 mm)
Minimum Eye Opening2 1/8 in. (54 mm)
Model Weight48.1 lbs (21.8 kg)

Optional Accessories

  • A508 Premier Parts Kit
