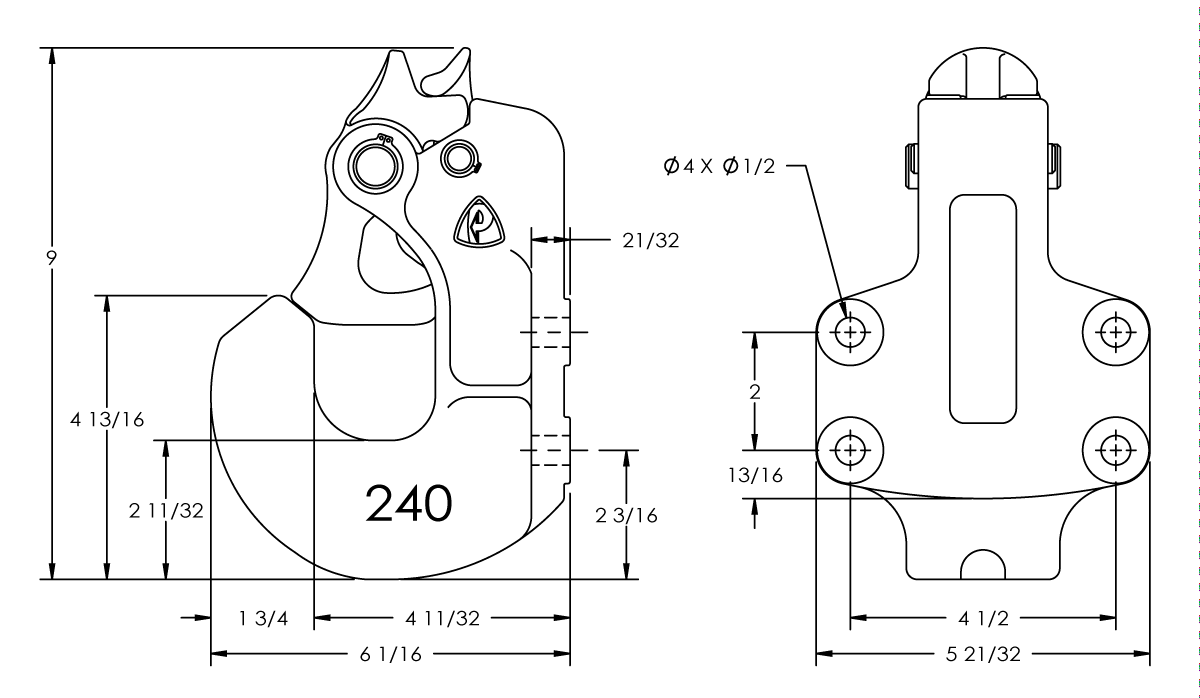

240 Coupling

Designed as a direct retrofit to the mounting pattern of our 135NT, the 240 coupling is the perfect choice for your hauling needs. It is built with extra toughness and wear resistance that Permalloy users have come to expect. With a maximum gross trailer weight of 45,000 lbs. and 20,000 lbs. latch capacity, Premier’s 240 coupling is the perfect choice for your everyday applications.


Description

MODELS

Model #Part #Description
24010001124240 Coupling

ACCESSORY & REPLACEMENT PARTS

Model #Part #Description
130PK10001043Parts Kit
15910000438Bolt Kit
1400810000056Wear Gage
1402610000071Wear Gage, Latch Gage Bar

SPECIFICATIONS

Maximum Gross Trailer Weight45,000 lbs. (20,412 kg)
Maximum Tongue Weight6,000 lbs. (2,722 kg)
Ultimate Latch Capacity20,000 lbs. (9,072 kg)
Maximum Eye X-Section1 11/16 in. (43 mm)
Minimum Eye Opening2 1/16 in. (52 mm)
Unit Weight16.1 lbs. (7.3 kg)
