Description
MODELS
| Modell # | Part # | Description |

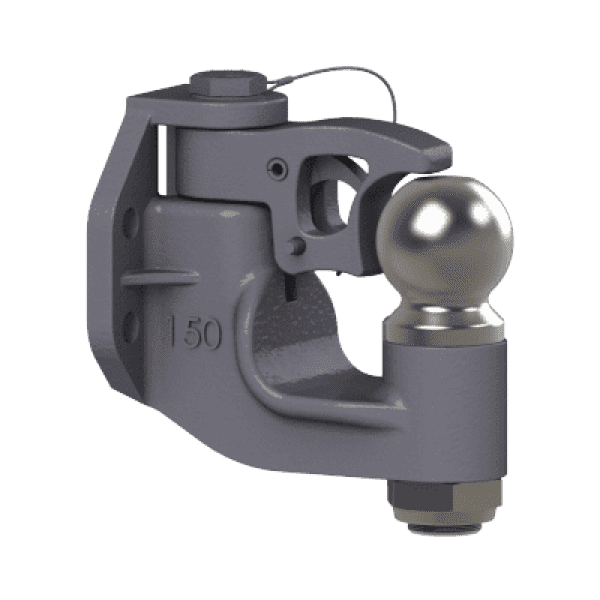

| 150 | 10004672 | 150 Coupling & 155 Coupling Ball |
| 150-1 | 10004673 | 150 Coupling & 156 Coupling Ball |
ACCESSORY & REPLACEMENT PARTS
| Modell # | Part # | Description |
| 150PK | 10001075 | Parts Kit |
| 155 | 10000090 | Coupling Ball w/ 157 Locknut (2 in. Diameter) |
| 156 | 10000092 | Coupling Ball w/ 157 Locknut (2 5/16 in. Diameter) |
| 157 | 10001086 | Locknut |
| 159 | 10000438 | Bolt Kit |
| 165 | 10000094 | Adjustable Mount Receiver (2 inch) |
| 166 | 10000096 | Adjustable Mount Receiver (2 1/2 inch) |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight With Eye | 20,000 lbs. (9,072 kg) | |
| Maximum Tongue Weight | 2,500 lbs. (1,134 kg) | |
| Ultimate Latch Capacity | 5,000 lbs. (2,268 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 14.7 lbs. (6.7 kg) | |
| 155 Coupling Ball Capacity MGTW | 10,000 lbs. (4,535 kg) | |
| 156 Coupling Ball Capacity MGTW | 10,000 lbs. (4,535 kg) | |
| 165 Adjustable Mount Receiver MGTW | 10,000 lbs. (4,535 kg) | |
| 166 Adjustable Mount Receiver MGTW | 12,000 lbs. (5,443 kg) |
-
