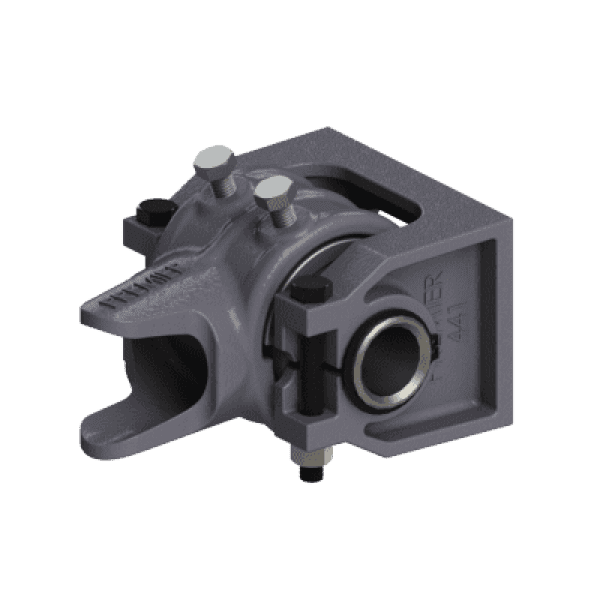

450 & 450A Hinge Assemblies

Premier’s 450 & 450A Hinge Assemblies are available with either rubber or poly bushings. Because the housing component is side-specific, you can purchase just the left or right hinge, or as a pair. Check out the Models box for ordering information and our Installation Guide tab below for additional product details.
Designed For: 2 1/2 inch (64 mm) round tubing

Category:

Description

MODELS

Model #Part #DescriptionParts Included per HINGE
45010001005 PAIR Hinges, Rubber Bushings351 Bolt/Nut (2), 441 Bracket, 442 Pin, 445 Adjustable Shoe, 446L/446R Housing, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2)
450A10001007 PAIR Hinges, Poly Bushings351 Bolt/Nut (2), 441 Bracket, 442 Pin, 445 Adjustable Shoe, 446L/446R Housing, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2)
450L10001008LEFT Hinge, Rubber Bushing351 Bolt/Nut (2), 441 Bracket, 442 Pin, 445 Adjustable Shoe, 446L Housing, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2)
450R10001010RIGHT Hinge, Rubber Bushing351 Bolt/Nut (2), 441 Bracket, 442 Pin, 445 Adjustable Shoe, 446R Housing, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2)
450LA10001009LEFT Hinge, Poly Bushing351 Bolt/Nut (2), 441 Bracket, 442 Pin, 445 Adjustable Shoe, 446L Housing, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2)
450RA10001011RIGHT Hinge, Poly Bushing351 Bolt/Nut (2), 441 Bracket, 442 Pin, 445 Adjustable Shoe, 446R Housing, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2)

SPECIFICATIONS

Max. Gross Trailer Weight (pair):100,000 lbs. (45,359 kg)
Unit Weight (pair):46.2 lbs. (21 kg)

REPLACEMENT PARTS

Model #Part #Description
351*10004756Bolt & Nut*Includes Bolt (1) & Nut (1)
44110000994Bracket
442*10004780Pin*Includes 653 Snap Rings (2)
44510000997Adjustable Shoe
446L10000998Housing, Left
446R10001000Housing Right
44710001002Bolt
44810001003Bushing, Rubber
448A10001004Bushing, Poly
65310001022Snap Ring

REPLACEMENT PART SPECIFICATIONS

Model #Inside DiameterOutside DiameterLength
4482 in.3 1/2 in.1 3/4 in.
448A2 in.3 1/2 in.1 3/4 in.
