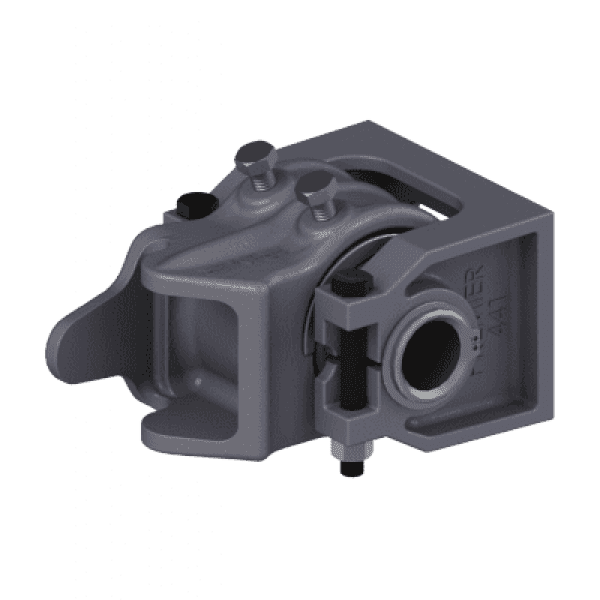

440 & 440A Hinge Assemblies

Premier’s 440 & 440A Hinge Assemblies are available with either rubber or poly bushings. Because the housing component is side-specific, you can purchase just the left or right hinge, or as a pair. Check out the Models box for ordering information and our Installation Guide tab below for additional product details.
Designed For: 3 inch (76 mm) standard channel or square tubing

Category:

Description

MODELS

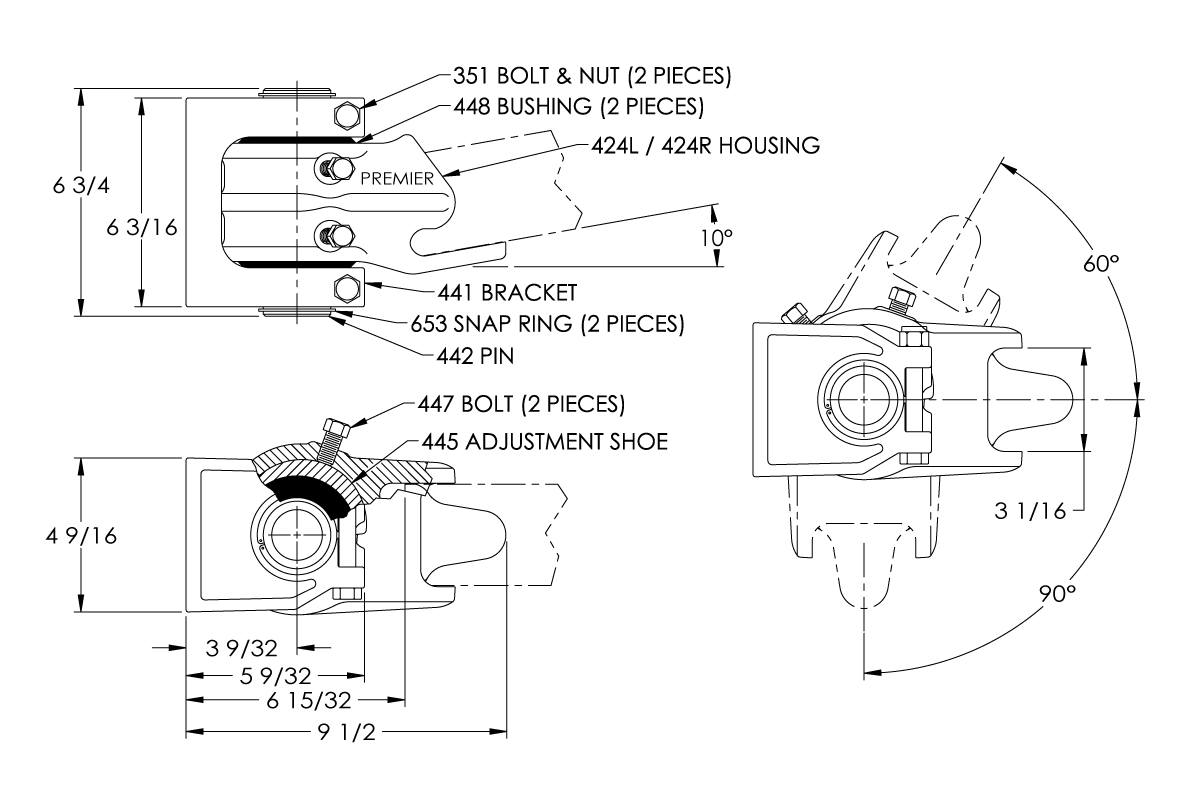

Model #Part #DescriptionParts Included per HINGE
44010000986 PAIR Hinges, Rubber Bushings351 Bolt/Nut (2), 424L/424R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2)
440A10000986 PAIR Hinges, Poly Bushings351 Bolt/Nut (2), 424L/424R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2)
440L10000990LEFT Hinge, Rubber Bushing351 Bolt/Nut (2), 424L Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2)
440R10000092RIGHT Hinge, Rubber Bushing351 Bolt/Nut (2), 424R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2)
440LA10000991LEFT Hinge, Poly Bushing351 Bolt/Nut (2), 424L Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2)
440RA10000993RIGHT Hinge, Poly Bushing351 Bolt/Nut (2), 424R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2)

SPECIFICATIONS

Max. Gross Trailer Weight (PAIR)100,000 lbs. (45,359 kg)
Unit Weight (PAIR)53.2 lbs. (24.1 kg)

REPLACEMENT PARTS

Model #Part #Description
351*10004756Bolt & Nut*Includes Bolt (1) & Nut (1)
424L10000966Housing, Left
424R10000968Housing, Right
44110000994Bracket
442*10004780Pin*Includes 653 Snap Rings (2)
44510000997Adjustable Shoe
44710001002Bolt
44810001003Bushing, Rubber
448A10001004Bushing, Poly
65310001022Snap Ring

REPLACEMENT PART SPECIFICATIONS

Model #Inside DiameterOutside DiameterLength
4482 in.3 1/2 in.1 3/4 in.
448A2 in.3 1/2 in.1 3/4 in.
