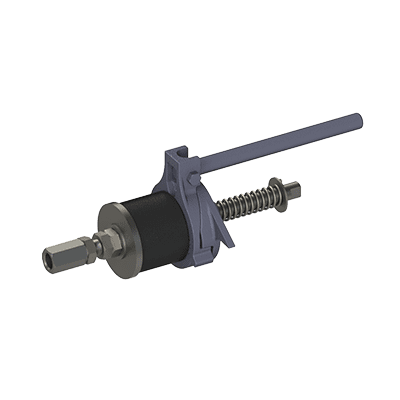

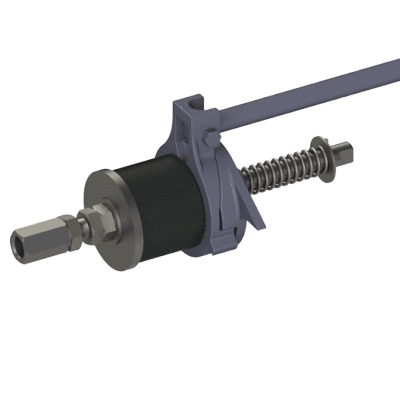

Mechanical Slack Adjuster Assembly - Model #500, Part #10000147

500 Mechanical Slack Adjuster

Premier’s 500 Mechanical Slack Adjuster is a complete assembly intended for use with any Premier Slack Adjusting Drawbar eye. It is designed to be used in place of 281 or 282 Air Chambers. No plumbing of air lines and simple operation make for an easy install and minimal maintenance. Check out the Similar or Alternatives and Optional Accessories tabs before for additional installation components.

Description

MODELS

Model #	Part #	Description
500	10000147	Mechanical Slack Adjuster Assembly

SPECIFICATIONS

Unit Weight

9.3 lbs. (4.2 kg)

ACCESSORY & ASSEMBLY PARTS

Model #	Part #	Description	Includes
514	10000160	Spring, Compression
514CP	10000161	Cotter Pin
518	10000162	Cam & Handle
518HK	10004788	Handle Kit	518B Bolt, 518H Handle, 518LN Locknut
519	10000168	Cam
522	10000170	Bushing, Rubber
523	10000171	Washer
524	10000172	Washer
525	10000173	Jam Nut
525L	10000174	Jam Nut, Left-hand threads
526	10000175	Coupler
526L	10000176	Coupler, Left-hand threads
526SPL	10000177	Coupler
527	10000178	Pushrod

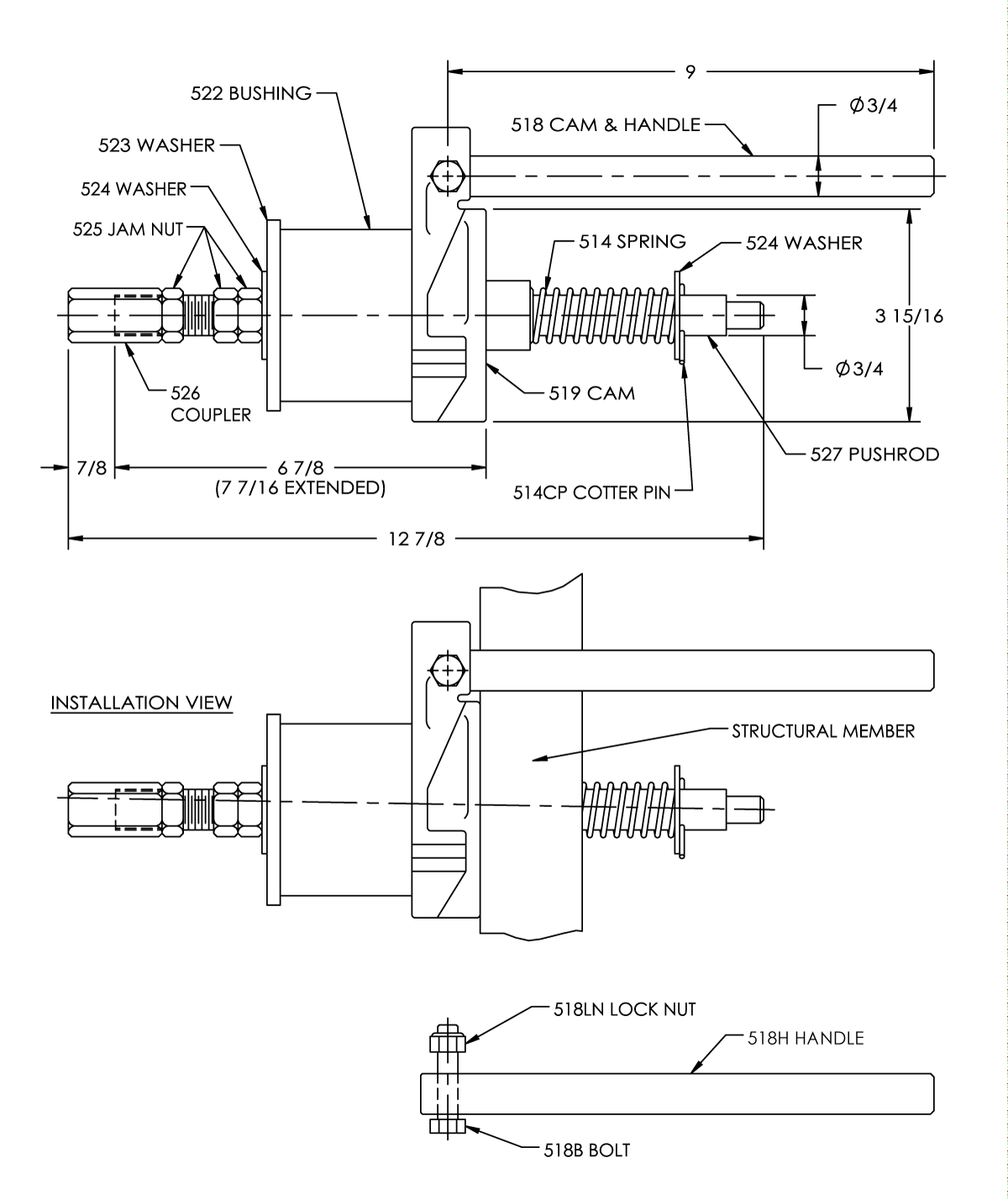

Drawings
