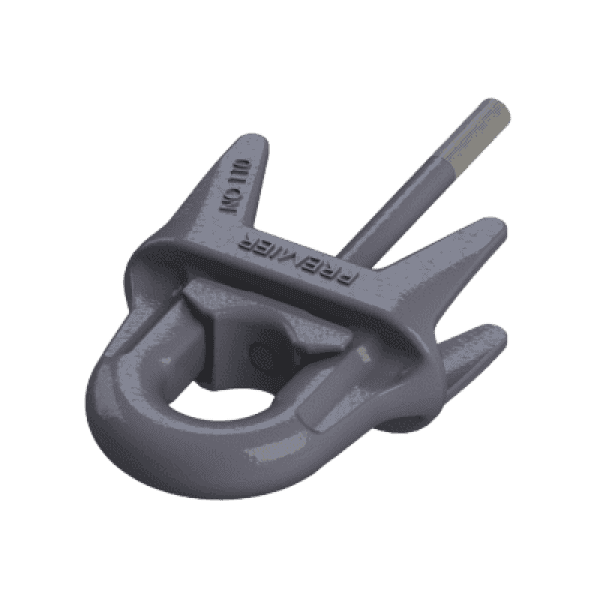

110 Weld-On Slack Reducing Drawbar Eye

Description

MODELS

Model #	Part #	Parts Included
110-7	10000710	110 Drawbar Eye, 411 Shoe, 113B Pushrod
110-8	10000711	110 Drawbar Eye, 411 Shoe, 113A Pushrod
110-12	10000709	110 Drawbar Eye, 411 Shoe, 113 Pushrod

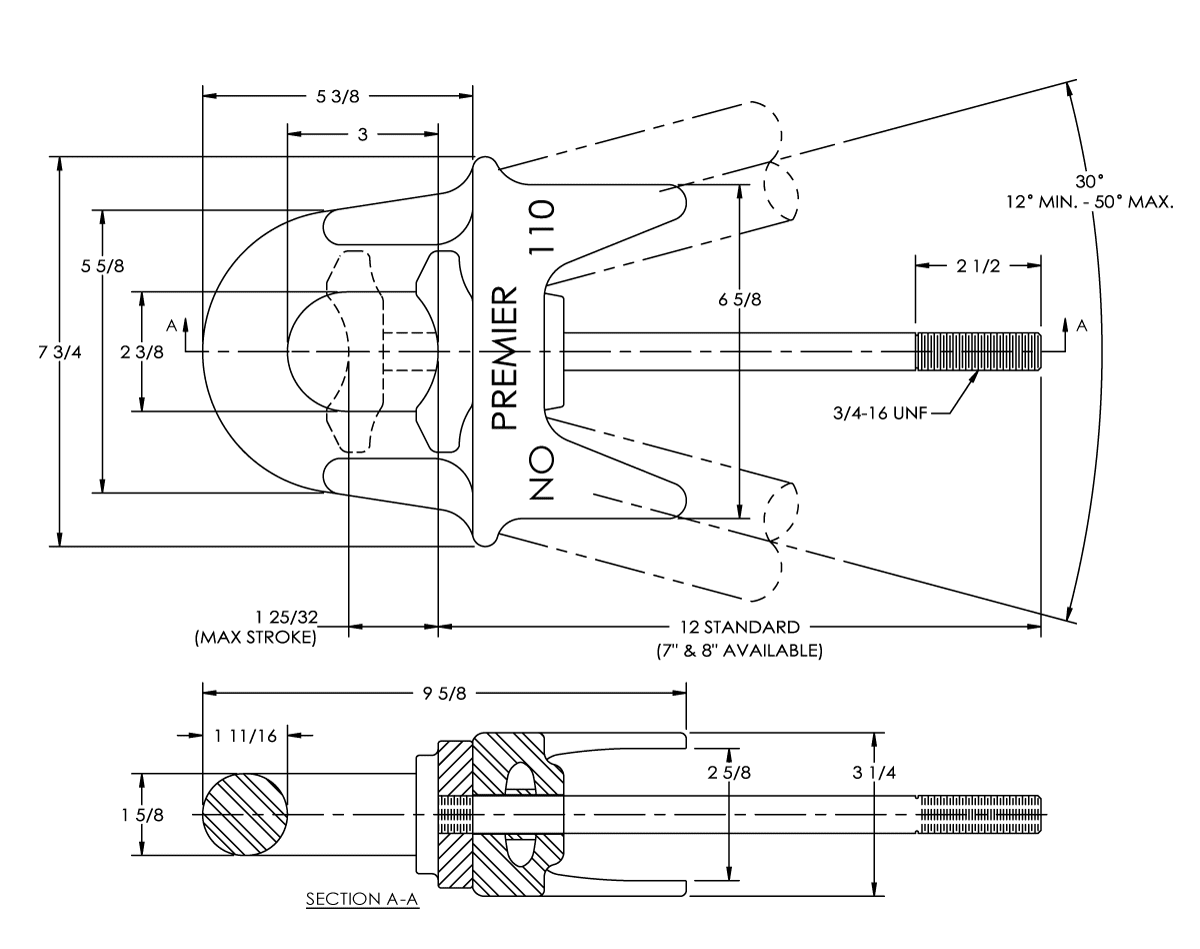

110 SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	16.5 lbs. (7.5 kg)

ACCESSORY & REPLACEMENT PARTS

Model #	Part #	Description
110C	10000712	Bushing, Pushrod Guide
113	10000716	Pushrod, 12 in.
113A	10000717	Pushrod, 8 in.
113B	10000718	Pushrod, 7 in.
281	10000116	Air Chamber, Type 24
281J	10000006	Jam Nut (fits 281 & 282 Air Chamber Pushrods)
282	10000122	Air Chamber, Type 30
47	10000144	Coupler
47L	10000145	Coupler, Left-hand threads
47SPL	10000146	Coupler
411	10000010	Shoe
500	10000147	Mechanical Slack Adjuster
525	10000173	Jam Nut (fits 113 Pushrods)
525L	10000174	Jam Nut, Left-hand threads (fits 113 Pushrods)
14005	10000053	Wear Gage
14032	10000075	Wear Gage

REPLACEMENT PART SPECIFICATIONS

Model #	Length:	Thread:
113B	7 in. (178 mm)	3/4 in - 16 NF
113A	8 in. (203 mm)	3/4 in - 16 NF
113	12 in. (305 mm)	3/4 in - 16 NF
47	3 5/8 in.	1 1/16 HEX
47L	3 5/8 in.	1 1/16 HEX
47SPL	6 in.	1 1/16 HEX
