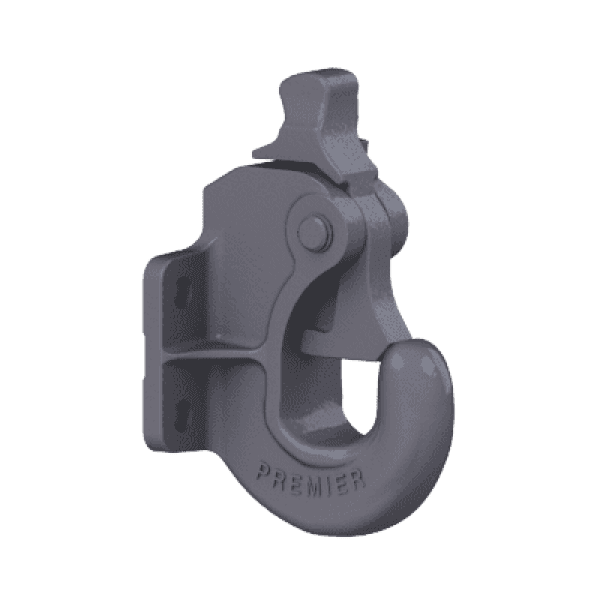

140 Coupling

Premier Manufacturing’s 140 coupling has been in use by light and medium-duty users for many years. Easy to operate, its strike-resistant latching and popular mounting pattern make the 140 ideal for numerous industries and applications. With a maximum gross trailer weight of 30,000 lbs. and 2,250 lbs. latch capacity, the 140 is perfect for your everyday hauling needs.

Description

MODELS

Model #Part #Description
14010001061140 Coupling

ACCESSORY & REPLACEMENT PARTS

Model #Part #Description
13110004670Pin (144-75 (2) Snap Rings Incl.)
14110001065Latch
14210001067Latch Key
14310001068Spring
144-7510001069Snap Ring
1402610000071Wear Gage, Latch Gage Bar
1403210000075Wear Gage
1403510000078Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight30,000 lbs. (13,608 kg)
Maximum Tongue Weight4,500 lbs. (2,041 kg)
Ultimate Latch Capacity2,250 lbs. (1,021 kg)
Maximum Eye X-Section1 1/2 in. (38 mm)
Minimum Eye Opening2 in. (51 mm)
Unit Weight14.7 lbs. (6.7 kg)
  • Custom Truck Accessories

    Wear Gages

    <span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
  • Drawbar Eyes

    3 Weld-On Drawbar Eye

    The 3 weld-on drawbar eye is perfect for all of your trucking needs. With a maximum gross trailer weight of. 70,000 lbs., it can be utilized for a variety of mid-to-heavy-duty applications.

  • Drawbar Eyes

    2 Weld-On Drawbar Eye

    The 2 weld-on drawbar eye from Premier Manufacturing is the perfect addition to your trucking arsenal. With a maximum gross trailer weight of 12,000 lbs. and maximum tongue weight of 1,800 lbs., it’s a great little tool for your light-duty hauling needs.
