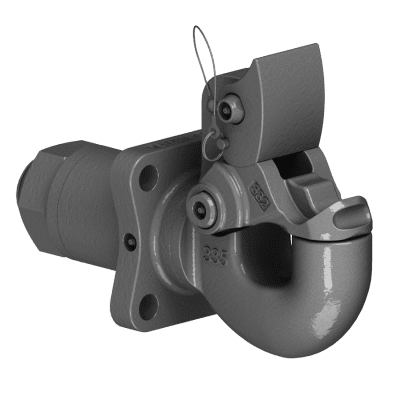

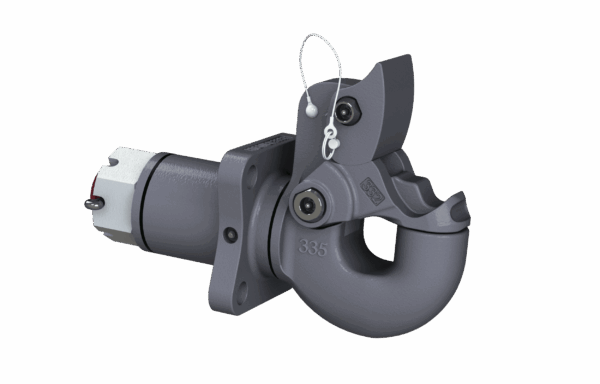

335NTEL Swivel Coupling

Our 335NTEL is the RHINO of Swivel Couplings. With an unsurpassed GTW capacity of 110,000 lbs., it was primarily designed for the high demands of sugar cane applications. A unique latch delivers the easiest-to-use one-handed operation in the industry. Polymer washers seal and reduce wear at the swivel points to ensure a smooth and long-lasting assembly that requires little maintenance. Our Extended Life (EL) lubrication points deliver lubricant precisely where it is needed to facilitate easy maintenance and smooth latch operation. When the going gets tough in your swivel coupling needs, take charge with the RHINO.

Category:

Description

MODELS

Model #Part #Description
335NTEL10001166335NTEL Coupling

ACCESSORY & REPLACEMENT

Model #Part#Description
332PK-EL10001153Parts Kit, for 335NTEL Latch
333PK-EL10001159Parts Kit, for 335NTEL Pawl
1402010000068Wear Gage
1402610000071Wear Gage, Latch Gage Bar

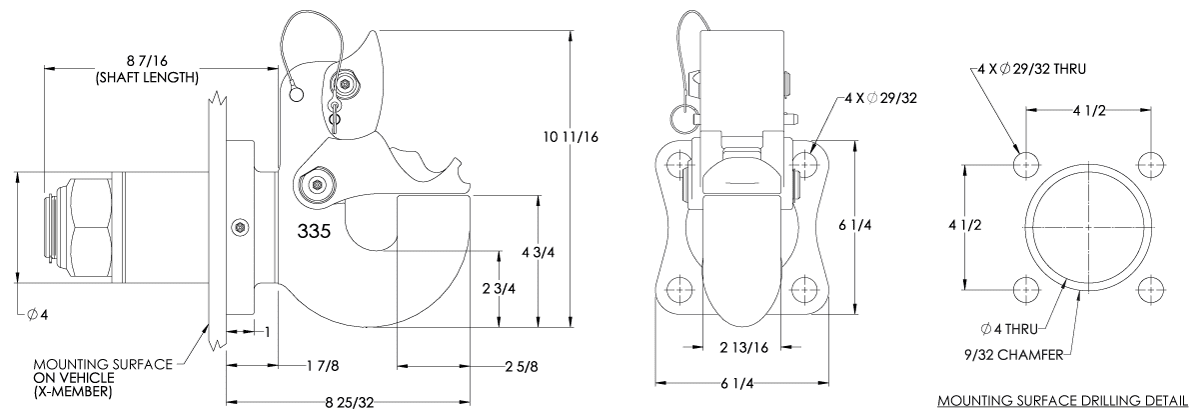

SPECIFICATIONS

Maximum Gross Trailer Weight110,000 lbs. (48,895 kg)
Maximum Tongue Weight20,000 lbs. (9,072 kg)
Ultimate Latch Capacity65,000 lbs. (29,484 kg)
Maximum Eye X-Section1 3/4 in. (44 mm)
Minimum Eye Opening3 in. (76 mm)
Unit Weight63.5 lbs. (28.8 kg)

Compatible Drawbar Eyes

Optional Accessories

  • Custom Truck Accessories

    Wear Gages

    <span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

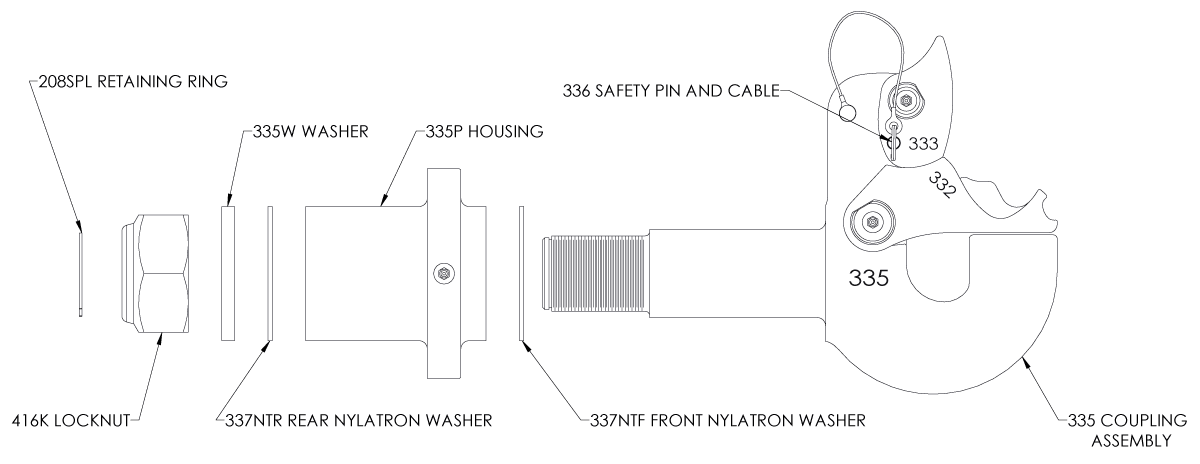

Replacement Parts

335NTEL Replacement Parts Available

Available as 332PK-EL:

*331: Pin
*332: latch
*332AL: Spring
*332AR: Spring
*785Z-1: Retaining Ring

Available as 333PK-EL

**333: Pawl
**333AL: Spring
**333AR: Spring
**334: Pin
**334-81: Retaining Ring

Available Individually Only (NOT Available in Parts Kit)

***16DS: Drive Screw
***208SPL: Retaining Ring
***336: Safety Pin & Cable
***337NTF: Nylatron Washer
***337NTR: Nylatron Washer
***416K: Locknut
***602: Zerk Fitting

Compatible Drawbar Eyes

Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
  • e-238db-2
    Drawbar Eyes

    238DB Bolt-On Drawbar Eye

    The 238DB Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.

    <button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...

  • Vehicle attachment by Premier
    Drawbar Eyes

    245DB-3 Bolt-On Drawbar Eye

    The 245DB-3 Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.

    <button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...

  • e-300
    Drawbar Eyes

    300 Bolt-On Drawbar Eye

    Premier Manufacturing’s 300 bolt-on drawbar eye is an exceptional addition to your trucking needs. It features a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Don’t forget to check the corresponding bolt kit (model# 507) and wear gage (model # 14032) listed under the Optional Accessories tab below. Order from a distributor today!

    <button ...

  • premier vehicle part
    Drawbar Eyes

    304 Weld-On Drawbar Eye

    The 304 Weld-On Drawbar Eye Order from Premier Manufacturing offers a maximum gross trailer weight of 150,000 lbs and a maximum tongue weight of 15,000 lbs. Find a distributor today!

  • e-305 car part
    Drawbar Eyes

    305 Weld-On Drawbar Eye

    The 305 Weld-On Drawbar Eye from Premier Manufacturing is designed for rectangular tubing, features a max gross trailer weight of 150,000 lbs. Order from a distributor today!

    Designed For: Rectangular tubing, 2 in. x 4 in. (51 mm x 102 mm) and 4 in. x 4 in. (102 mm x 102 mm)

  • e-309
    Drawbar Eyes

    309 Weld-On Drawbar Eye

    The 309 Weld-On Drawbar Eye by Premier Manufacturing boasts a maximum gross trailer weight of 150,000 lbs. Locate a distributor in your area today!
    Designed For: 4 in. (102 mm) round tubing
