Description
MODELS
| Model # | Part # | Description |

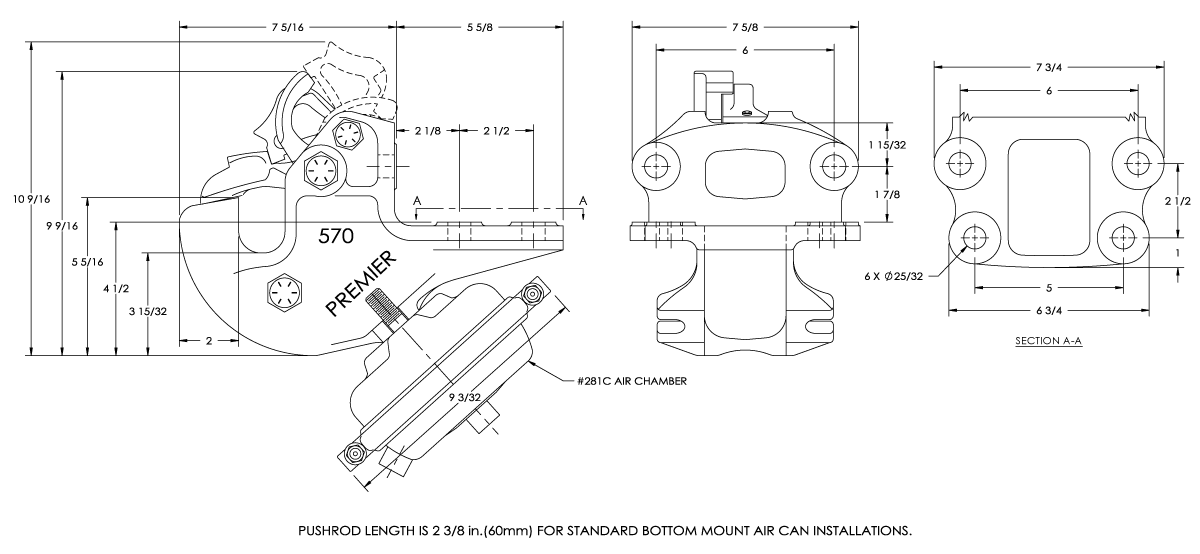

| 570 | 10004789 | 570 Coupling & 271 Thimble |
| 570A | 10004790 | 570 Coupling, 504 Bolt Kit, 281C Air Chamber, 271 Thimble |
| 570A-2 | 10004791 | Same as 570A, without the 504 Bolt Kit |
| 570A-503 | 10004792 | Same as 570A, with a 503 Bolt Kit instead of a 504 |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 281C | 10000117 | Air Chamber, Type 24, Bottom Mount |
| 503 | 10000151 | Bolt Kit |
| 504 | 10000152 | Bolt Kit |
| 579PK | 10000023 | Parts Kit |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 90,000 lbs. (40,823 kg) | |
| Maximum Tongue Weight | 18,000 lbs. (8,165 kg) | |
| Ultimate Latch Capacity | 20,000 lbs. (9,072 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 32.8 lbs. (14.9 kg) |
-
