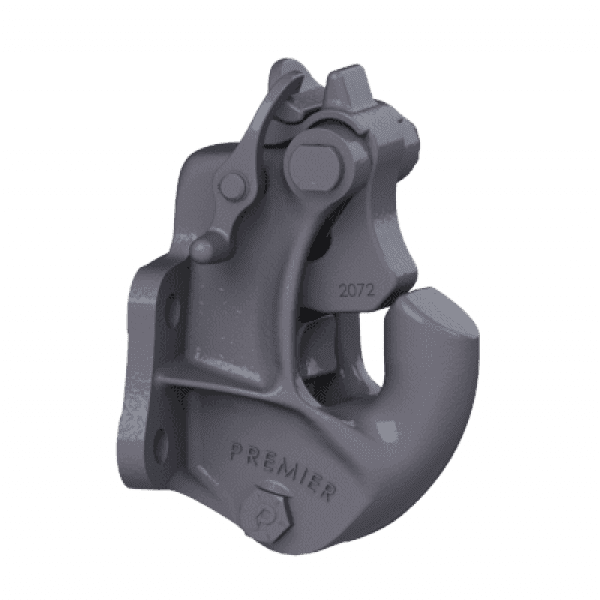

2200/2200L Slack Reducing Coupling

The 2200 model Coupling, like our ever-popular 270 Coupling, features the most popular mounting bolt pattern in the industry. All of our 2000 series couplings offer exceptional latch strength, easy operation, and low maintenance. All 2000 series couplings can be operated with or without an air service chamber. With a maximum gross trailer weight of 100,000 lbs., the 2200 model Coupling is perfect for heavy-duty hauling.


Description

MODELS

Model #Part #Description
2200100046882200 Coupling & 271 Thimble
2200NS100002612200 Coupling, without the 279 Shoe
2200L100046992200 Coupling with 2075K Low Profile Lever Kit installed

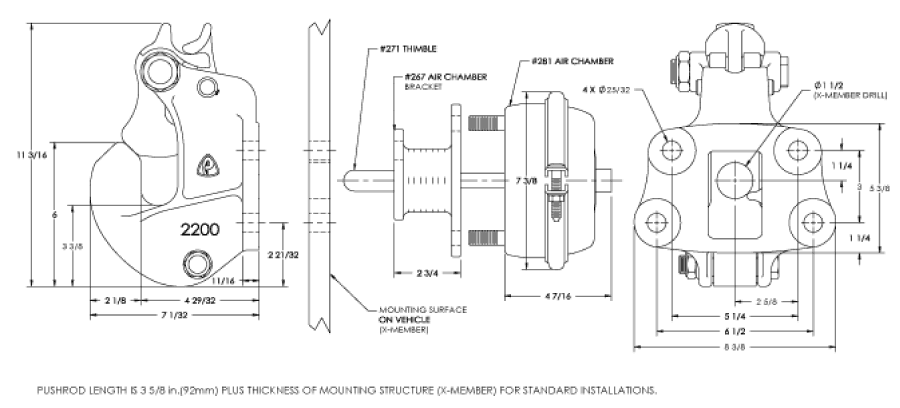

2200A100046902200 Coupling, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble
2200A-210004691Same as 2200A, without the 501 Bolt Kit
2200A-267H10004692Same as 2200A, with 267H Air Chamber Adapter Bracket instead of 267

KIT COMPONENTS & ACCESSORY PARTS

Model #Part #Description
27110000107Thimble
27910000312Shoe
2075K10000244Low Profile Lever Kit
50110000149Bolt Kit
28110000116Air Chamber, Type 24
28210000122Air Chamber, Type 30
26710000098Air Chamber Adapter Bracket (2 3/4 in. overall length)
267F10000101Air Chamber Adapter Bracket (4 5/8 in. overall length)
267H10000102Air Chamber Adapter Bracket (3/4 in. overall length)
2000PK10000737Parts Kit
2000PK-EL10000739Parts Kit, Extended Life (EL)
2200PK-ELL10000262Parts Kit, Extended Life (EL), Low Profile Lever
43810004779Drawbar Guide Set (Left & Right Sides Incl.)
438L10000131Drawbar Guide, Left Side Only
438R10000133Drawbar Guide, Right Side Only
1401410000062Wear Gage
1402610000071Wear Gage, Latch Gage Bar

SPECIFICATIONS

Maximum Gross Trailer Weight100,000 lbs. (45,359 kg)
Maximum Tongue Weight20,000 lbs. (9,072 kg)
Ultimate Latch Capacity60,000 lbs. (27,216 kg)
Maximum Eye X-Section1 13/16 in. (46 mm)
Minimum Eye Opening2 3/8 in. (60 mm)
Unit Weight29 lbs. (13.2 kg)
