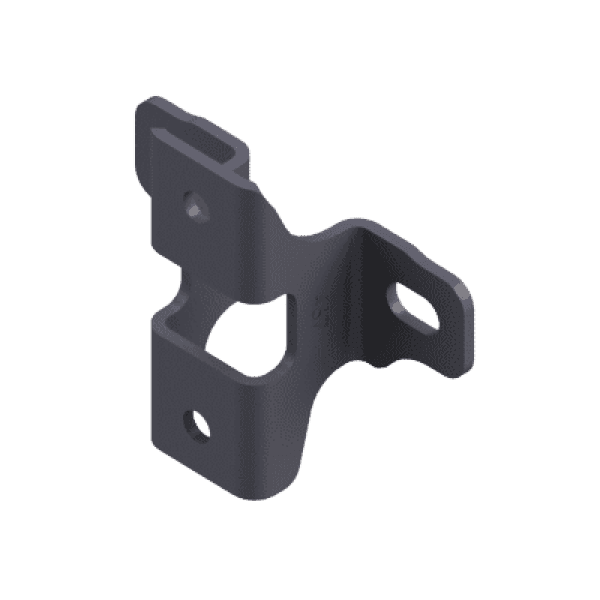

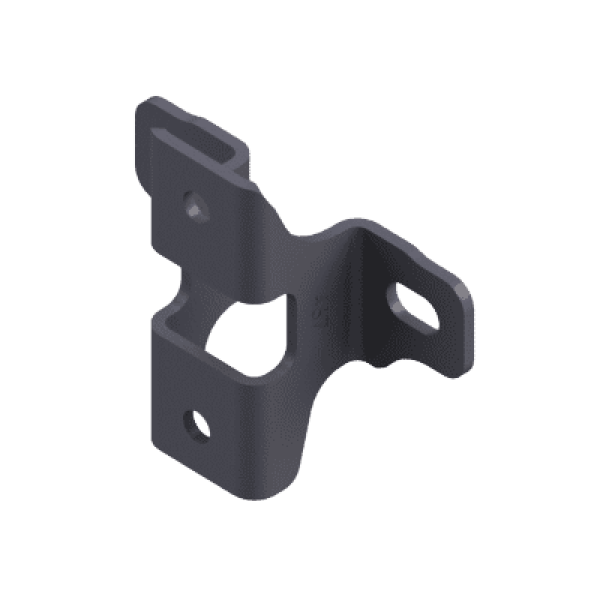

467 & 767 Air Chamber Brackets

Premier’s 467 & 767 Air Chamber Brackets are designed for use with the Slack Reducing Coupling models listed below. The 467 series is available in three lengths to meet your particular mounting structure requirements. Check out the Optional Accessories tab below for additional installation components and order from Premier today!



Description

MODELS

Model #Part #DescriptionFor Use With
46710000135Air Chamber Bracket (467W Washer Incl.), Standard360, 370, 470, 470H, 2300, 2400, 2400H, 100-3, 100-4, 100-4H
467F10000138Air Chamber Bracket, Non-Standard360, 370, 470, 470H, 2300, 2400, 2400H, 100-3, 100-4, 100-4H
467H10000140Air Chamber Bracket, Non-Standard360, 370, 470, 470H, 2300, 2400, 2400H, 100-3, 100-4, 100-4H
467W10000136Washer Only467 Air Chamber Bracket
76710000180Air Chamber Bracket, Standard780, 880 & 2880

SPECIFICATIONS

Model #LengthUnit Weight
4672 3/4 in. overall length (70 mm)2.80 lbs.
467F5 1/2 in. overall length (140 mm)3.46 lbs.
467H3/4 in. overall length (19 mm)2.60 lbs.
467W3/4 in.
7672 3/4 in. overall length (70 mm)3.20 lbs.
