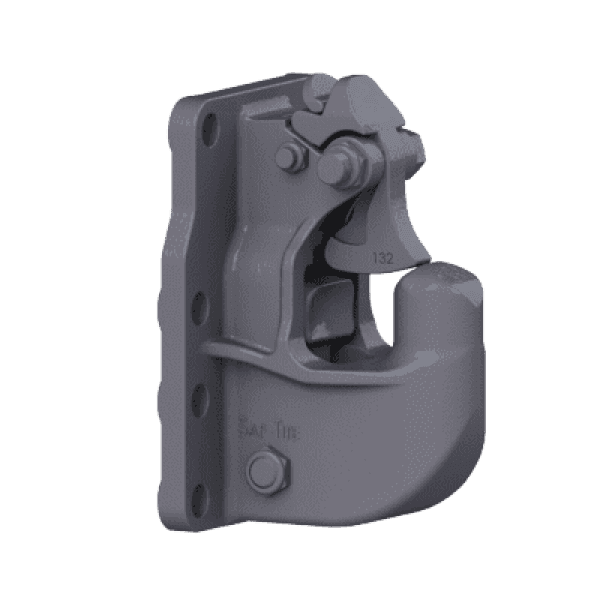

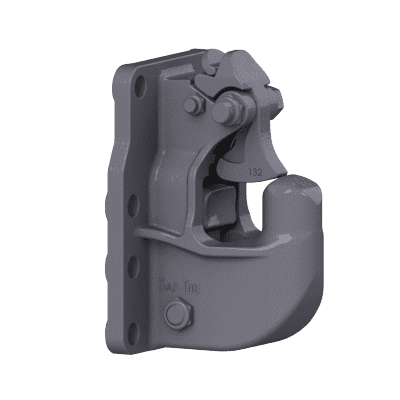

100-4H SAF-TITE SLACK REDUCING COUPLING

Description

MODELS
100-4H	Coupling & 271 Thimble.
100-4HA Kit	100-4H Coupling, 508 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble.
100-4HA-2 Kit	Same as 100-4HA Kit, without the 508 Bolt Kit.

SPECIFICATIONS
Maximum Gross Trailer Weight	110,000 lbs. (49,895 kg)
Maximum Tongue Weight	20,000 lbs. (9,072 kg)
Ultimate Latch Capacity	20,000 lbs. (9,072 kg)
Maximum Eye X-Section	1 13/16 in. (46 mm)
Minimum Eye Opening	2 3/8 in. (60 mm)
Unit Weight	35.1 lbs. (16 kg)

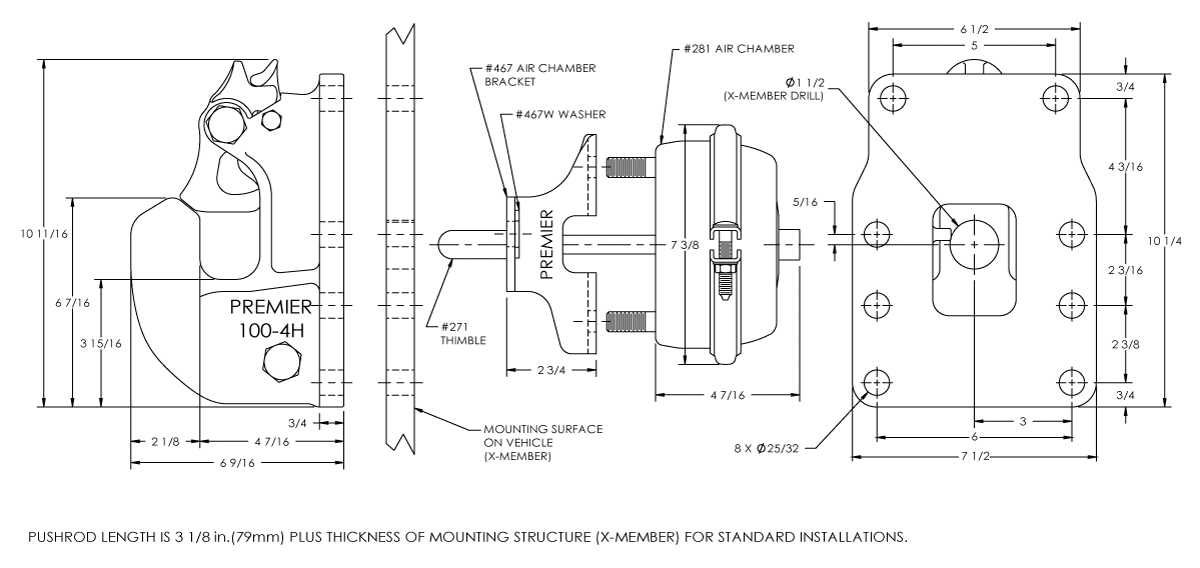

Drawings

Installation

Download (PDF, 1.07MB)

Optional Accessories

Accessories

100PK PARTS KIT

The 100PK is your parts replacement kit for our 100 Series Saf-Tite Couplings. This includes models 100, 100-3, 100-4, 100-4H.
