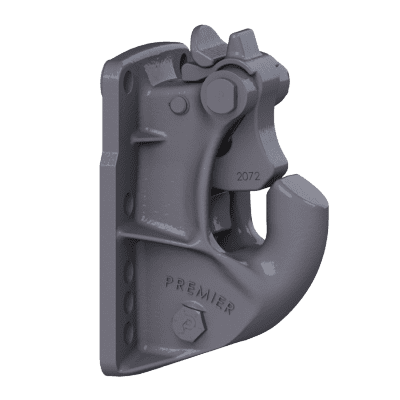

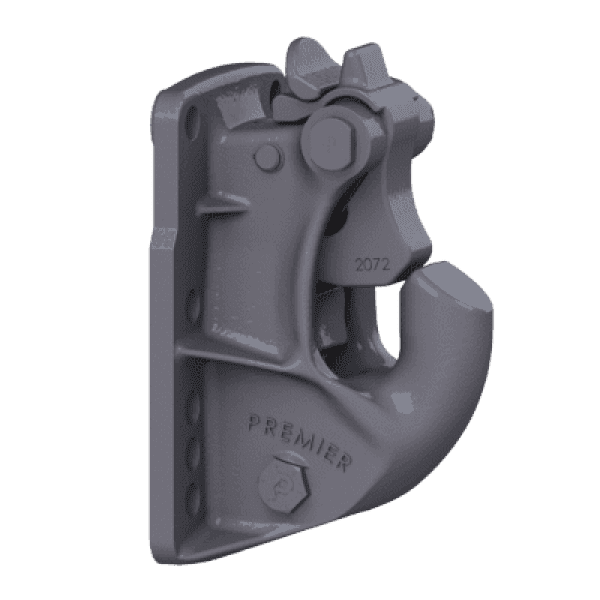

2400 Slack Reducing Coupling, Part #10004713

When installation and mounting is limited by bolt hole pattern, the 10004713 slack reducing coupling may be the answer. Although one of the bottom three mounting holes must be used, you choose which one. This allows for maximum compatibility with existing mounting patterns. Popular with Pup and Dumps and Tanker applications, all 2000 series couplings can be operated with or without an air service chamber.


Description

MODELS

Part #10004713
(Model #2400)
Coupling & 10000107 Thimble.
Part #10000288
(Model #2400NS)
10004713 Coupling, without the 10000312 Shoe.
Part #10004715
(Model #2400A)
10004713 Coupling, 10000155 Bolt Kit, 10000116 Air Chamber, 10000135 Air Chamber Adapter Bracket, 10000107 Thimble.
Part #10004716
(Model #2400A-2)
Same as 10004715 Kit, without the 10000155 Bolt Kit.
Part #10004718
(Model #2400AF)
Same as 10004715 Kit, with 10000138 instead of 10000135 Air Chamber Adapter Bracket.
Part #10004719
(Model #2400EL)
10004713 Coupling with Extended Life latch direct-inject lubrication ports.
Part #10004721
(Model #2400ELA)
10004719 Coupling, 10000155 Bolt Kit, 10000116 Air Chamber, 10000135 Air Chamber Adapter Bracket, 10000107 Thimble.
Part #10004717
(Model #2400A-467H)
Same as 10004715 Kit, with 10000140 instead of 10000135 Air Chamber Adapter Bracket.

SPECIFICATIONS

Maximum Gross Trailer Weight 100,000 lbs. (45,359 kg)
Maximum Tongue Weight 20,000 lbs. (9,072 kg)
Ultimate Latch Capacity 60,000 lbs. (27,216 kg)
Maximum Eye X-Section 1 13/16 in. (46 mm)
Minimum Eye Opening 2 3/8 in. (60 mm)
Unit Weight 34.3 lbs. (15.6 kg)
[/vc_tta_section]
Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
