Description
MODELS
Model # | Part # | Description |

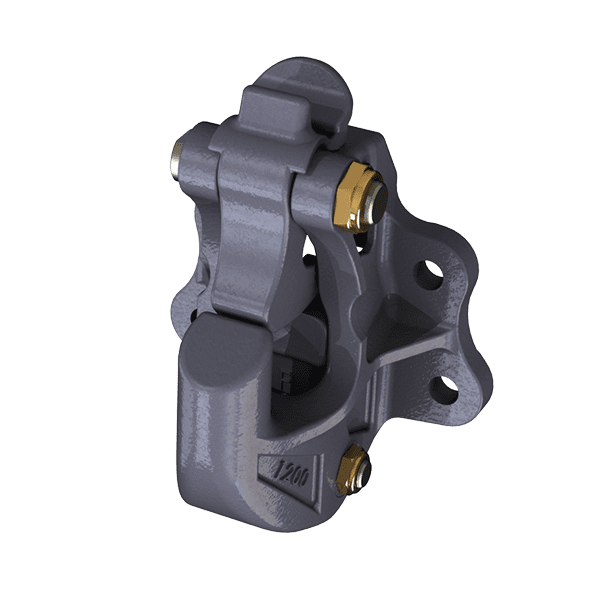

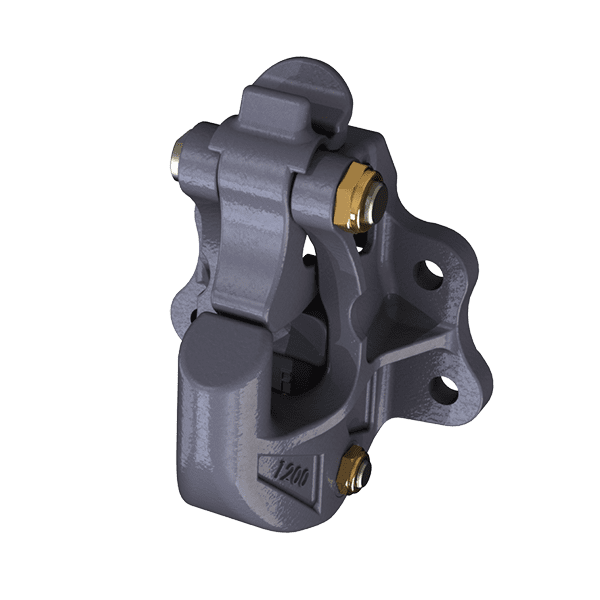

1200 | 10005664 | 1200 Coupling & 271 Thimble |

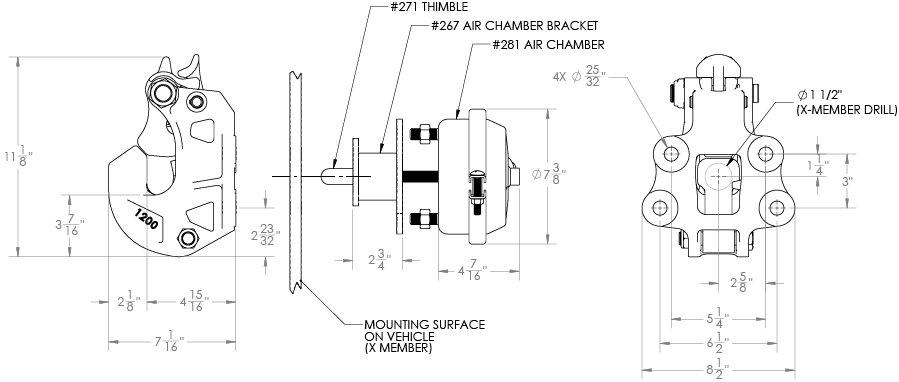

1200A | 10006048 | 1200 Coupling, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble |
1200A-2 | 10006983 | Same as 1200A, without the 501 Bolt Kit |
KIT COMPONENTS & ACCESSORY PARTS
Model # | Part # | Description |
271 | 10000107 | Thimble |
281 | 10000116 | Air Chamber, Type 24 |
267 | 10000098 | Air Chamber Adapter Bracket |
501 | 10000149 | Bolt Kit |
2000PK | 10000737 | Parts Kit |
14014 | 10000062 | Wear Gage |
SPECIFICATIONS
Maximum Gross Trailer Weight | 100,000 lbs. (45,395 kg) | |
Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
Ultimate Latch Capacity | 60,000 lbs. (27,216 kg) | |
Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
Minimum Eye Opening | 2 3/8 in. (60 mm) | |
Model Weight | 30.5 lbs (14.8 kg) |
-
