238DB Bolt-on Drawbar Eye

Description

MODELS

Model #	Part #	Description
238DB	10000778	Drawbar Eye, Bolt-On, 3" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	8,000 lbs. (3,629 kg)
Inside Diameter	3 in. (76 mm)
Unit Weight	28.4 lbs. (12.9 kg)

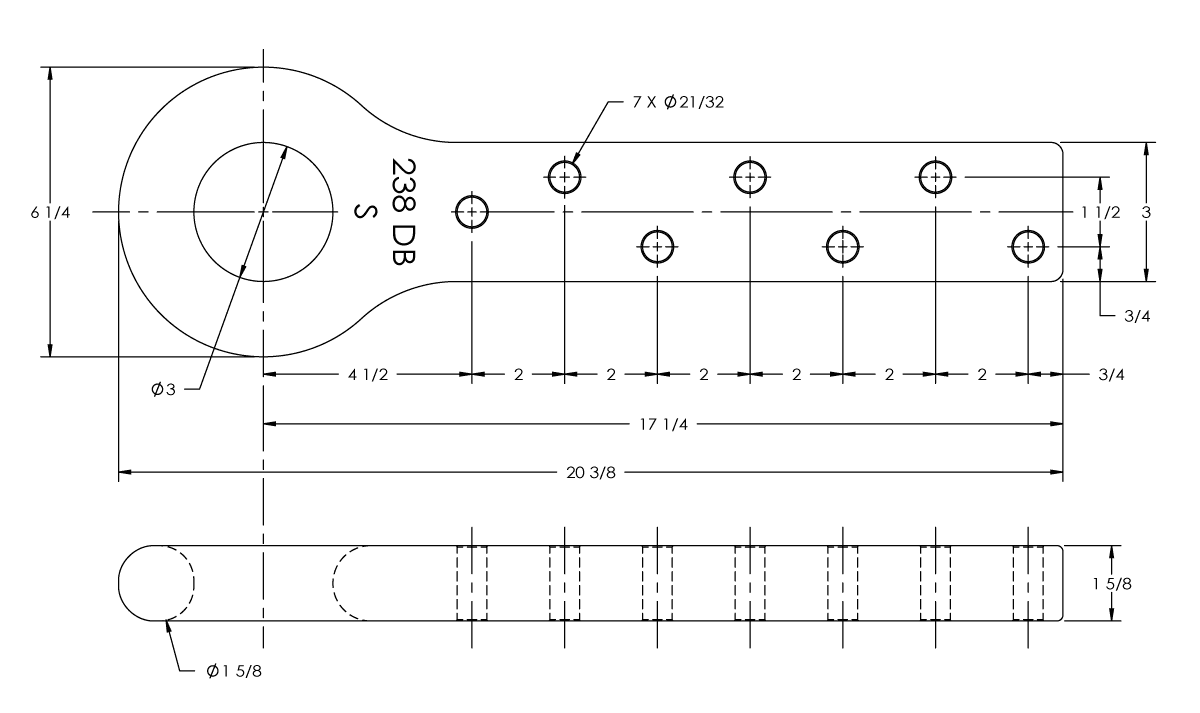

Drawings

English Installation Instructions

238DB 245DB 245DB-3 Drawbar Eye Installation

Spanish Installation Instructions

238DB 245DB 245DB-3 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages
