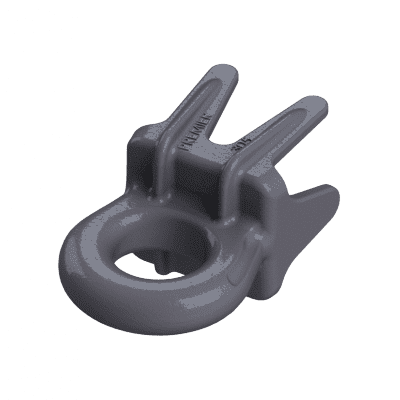

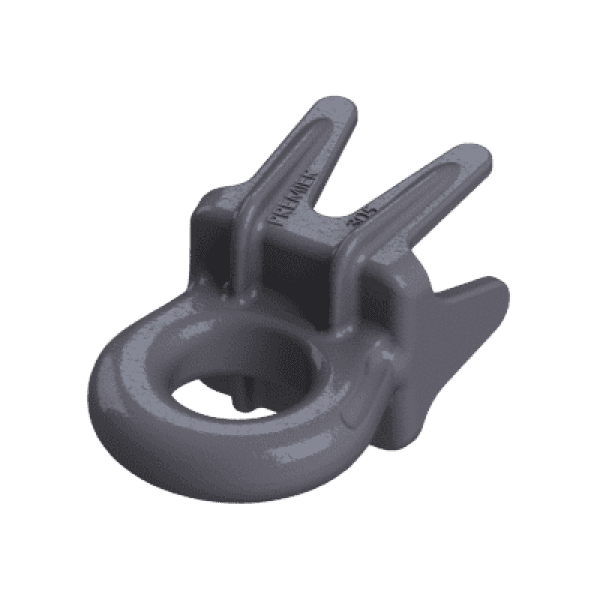

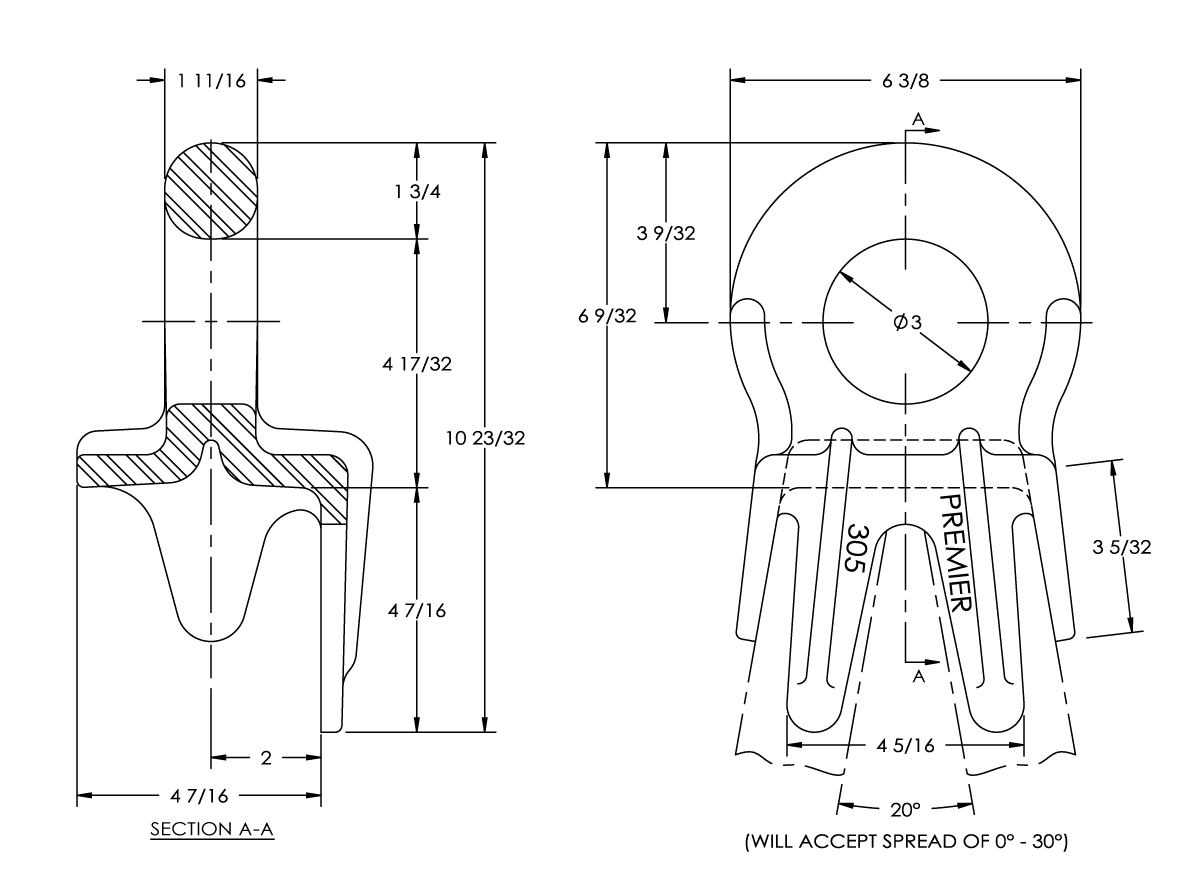

305 WELD-ON DRAWBAR EYE

Designed for rectangular tubing 2 in. x 4 in. (51 mm x 102 mm) and 4 in. x 4 in. (102 mm x 102 mm).

Description

MODELS

305 Drawbar eye only, 3″ ID.

SPECIFICATIONS

Maximum Gross Trailer Weight 100,000 lbs. (45,359 kg)
Maximum Tongue Weight 15,000 lbs. (6,804 kg)
Inside Diameter 3 in. (76 mm)
Unit Weight 15.8 lbs. (7.2 kg)

Additional information

Eye Type
