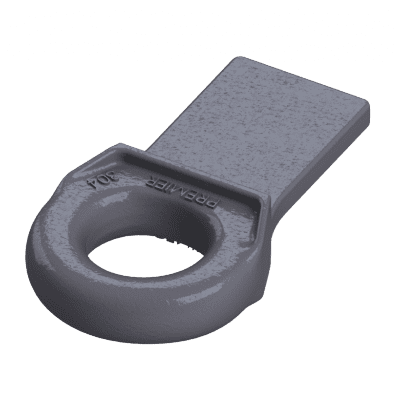

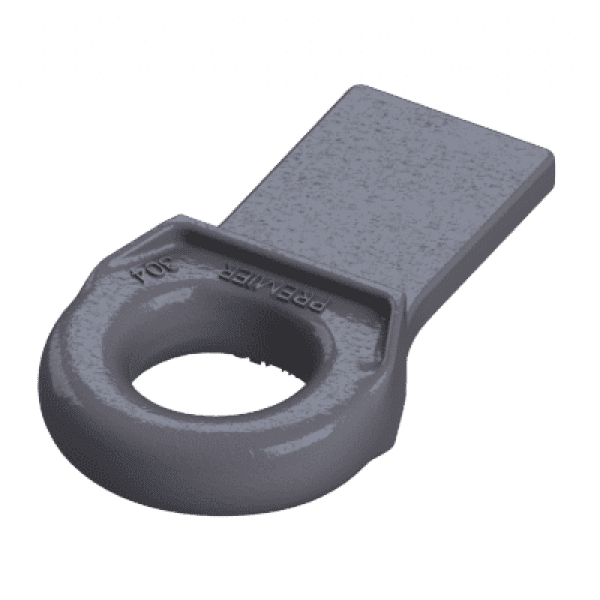

304 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
304	10000794	Drawbar Eye, Weld-On, 3" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage
14035	10000078	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	150,000 lbs. (68,039 kg)
Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Inside Diameter	3 in. (76 mm)
Unit Weight	13.3 lbs. (6.0 kg)

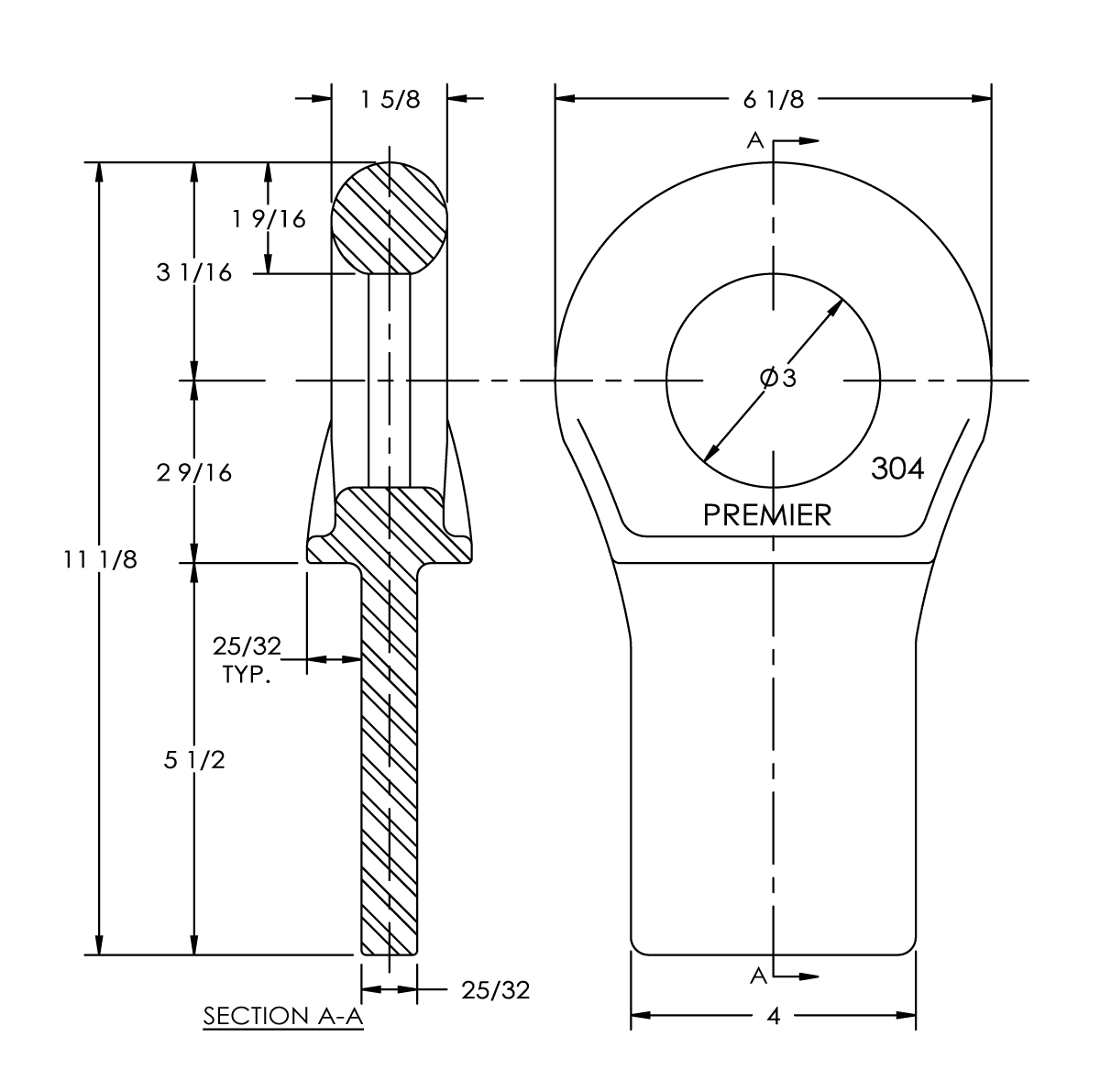

Drawings

Installation

304 306 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
