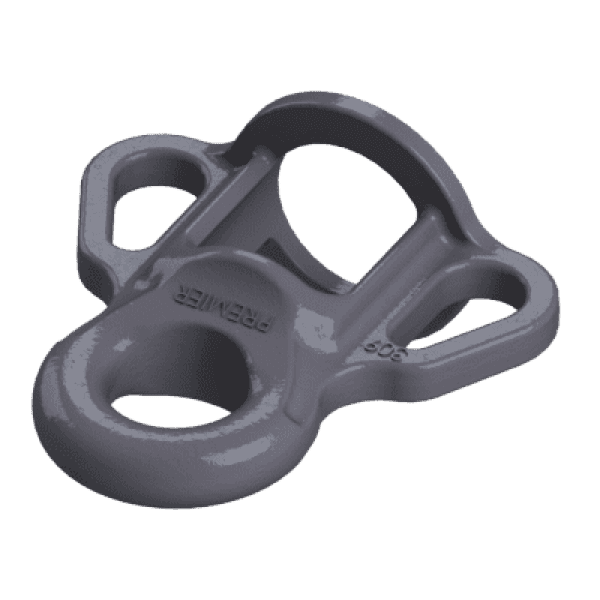

309 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
309	10000812	Drawbar Eye, Weld-On, 3" ID

ACCESSORY PARTS

Model #	Part #	Description
14008	10000056	Wear Gage
14032	10000075	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	150,000 lbs. (68,039 kg)
Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Inside Diameter	3 in. (76 mm)
Unit Weight	24 lbs. (10.9 kg)

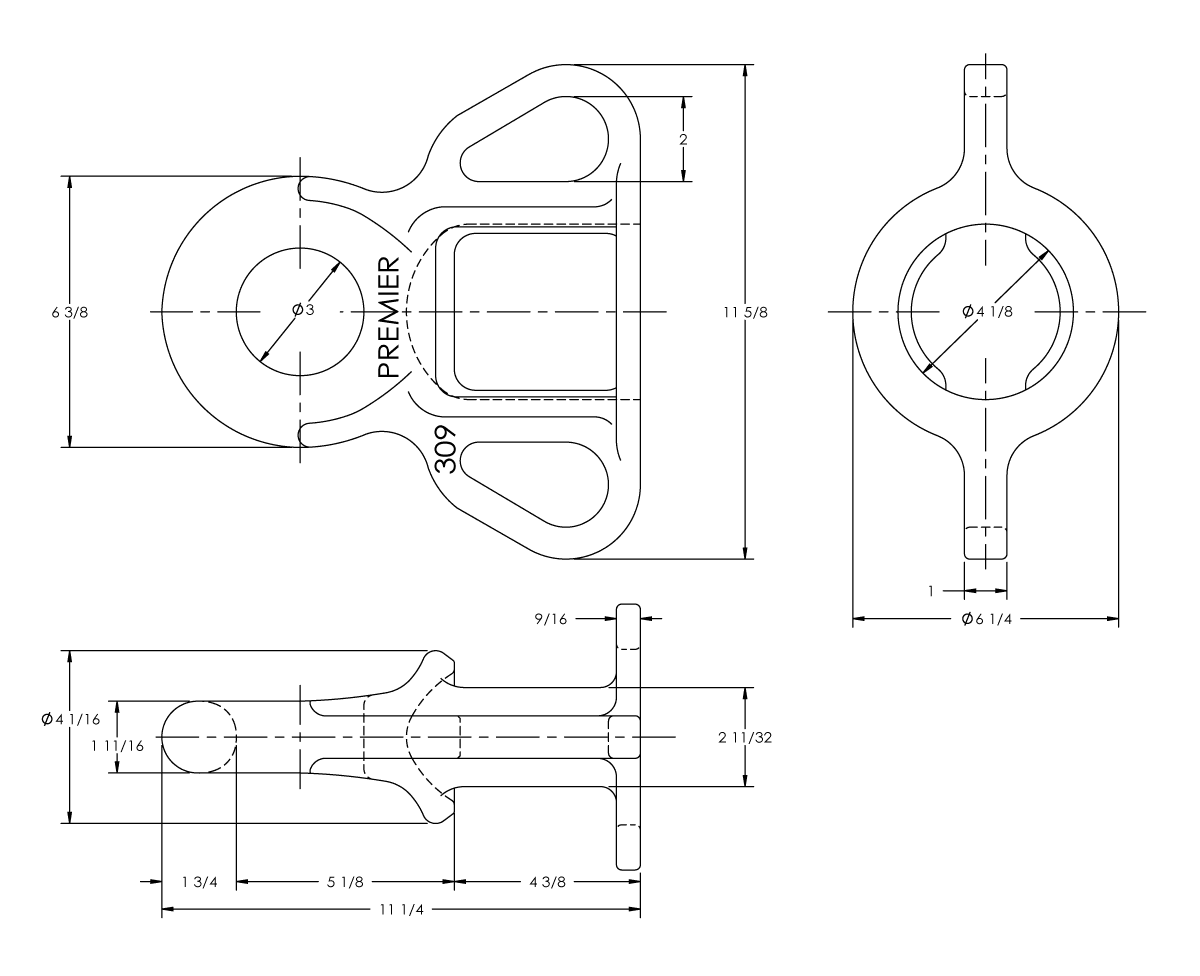

Drawings

Installation

107 108 309 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages
