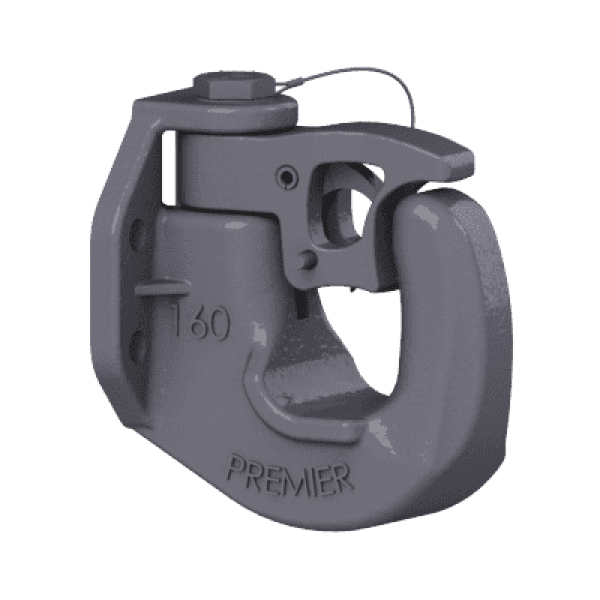

160 Coupling

Description

MODELS

Model #	Part #	Description
160	10001089	160 Coupling

ACCESSORY & REPLACEMENT PARTS

Model #	Part #	Description
150PK	10001075	Parts Kit
159	10000438	Bolt Kit
165	10000094	Adjustable Mount Receiver (2 inch)
166	10000096	Adjustable Mount Receiver (2 1/2 inch)
14026	10000071	Wear Gage, Latch Gage Bar
14035	10000078	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	30,000 lbs. (13,608 kg)
Maximum Tongue Weight	4,500 lbs. (2,041 kg)
Ultimate Latch Capacity	5,000 lbs. (2,268 kg)
Maximum Eye X-Section	1 13/16 in. (46 mm)
Minimum Eye Opening	2 in. (51 mm)
Unit Weight	12 lbs. (5.4 kg)

165 Adjustable Mount Receiver MGTW	10,000 lbs. (4,535 kg)
166 Adjustable Mount Receiver MGTW	12,000 lbs. (5,443 kg)

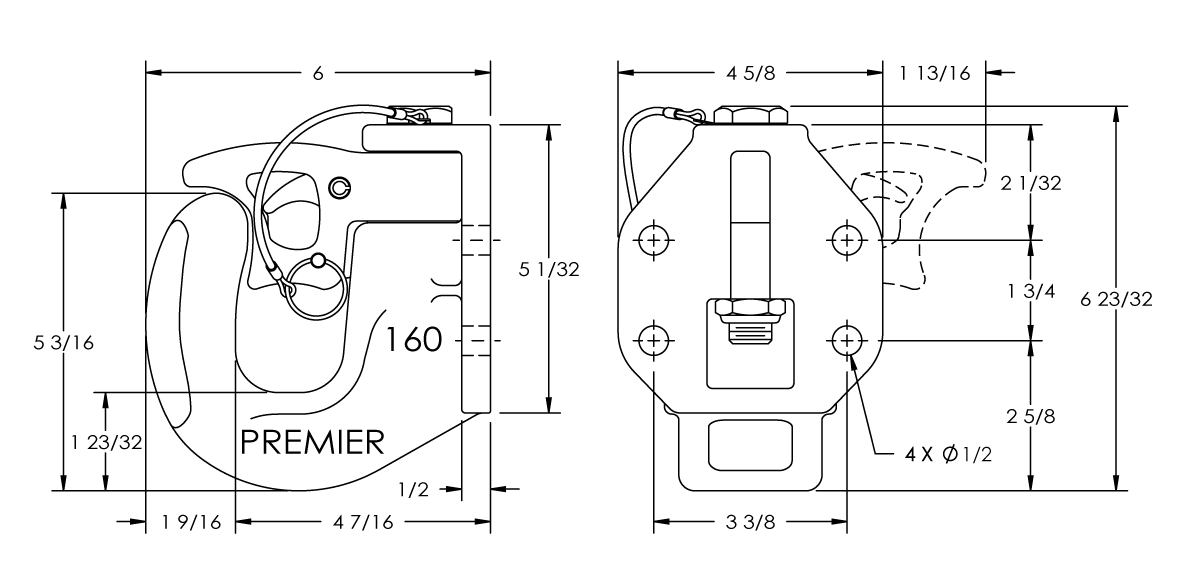

Drawings

Optional Accessories

Custom Truck Accessories

150PK Parts Kit

<span data-sheets-value="{"1":2,"2":"The 150pk parts kit is your parts replacement kit for our 150 and 160 couplings. Get this exceptional parts bundle today to enhance your trucking and hauling equipment."}" ...
Custom Truck Accessories

165 Receiver

Designed for superior strength, the 165 Receiver is a one-piece, solid steel casting, adjustable mount for 2-inch …
Custom Truck Accessories

166 Receiver

Like the 165, our 166 Receiver is also a …
Custom Truck Accessories

Bolt Kits

Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …
Custom Truck Accessories

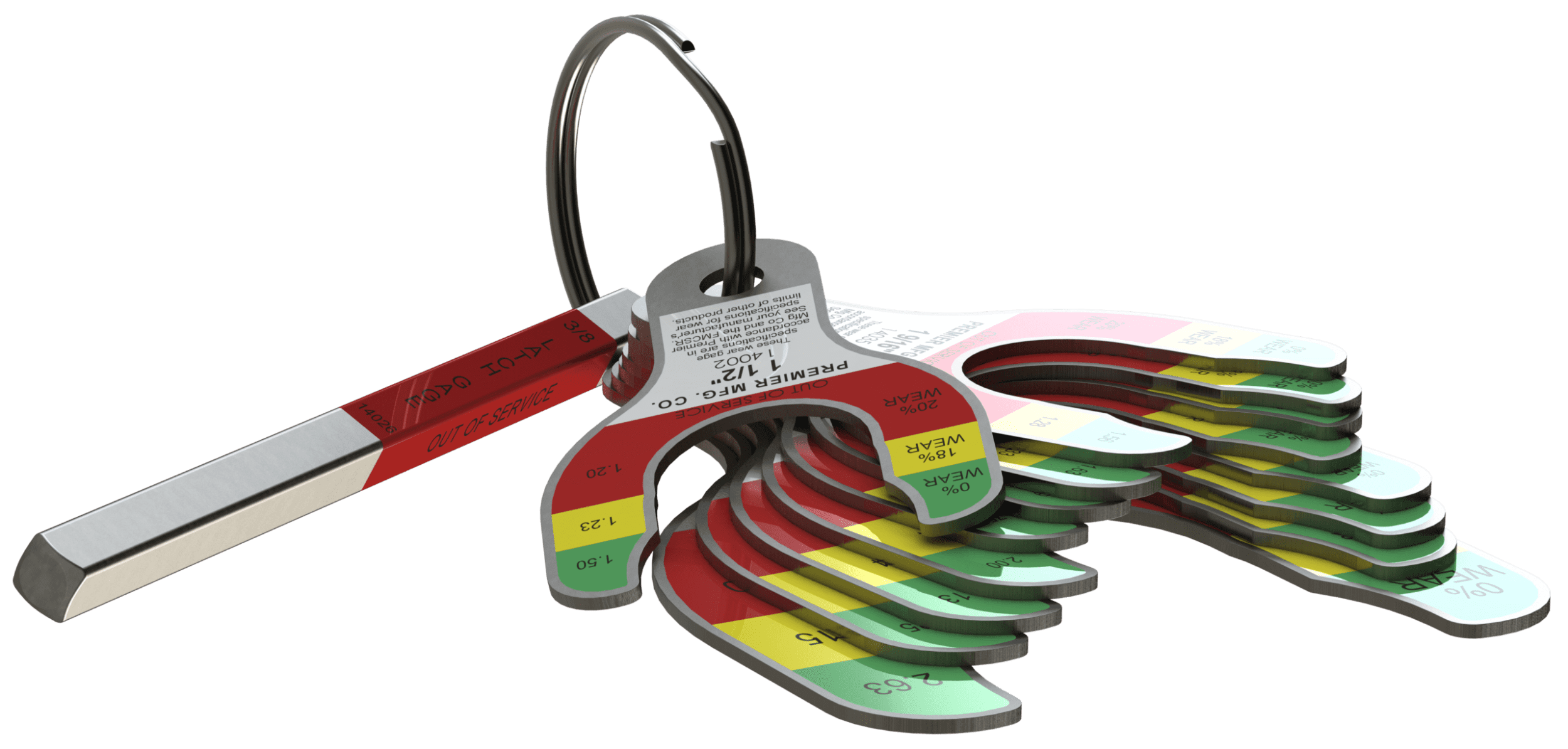

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

Compatible Drawbar Eyes

Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
