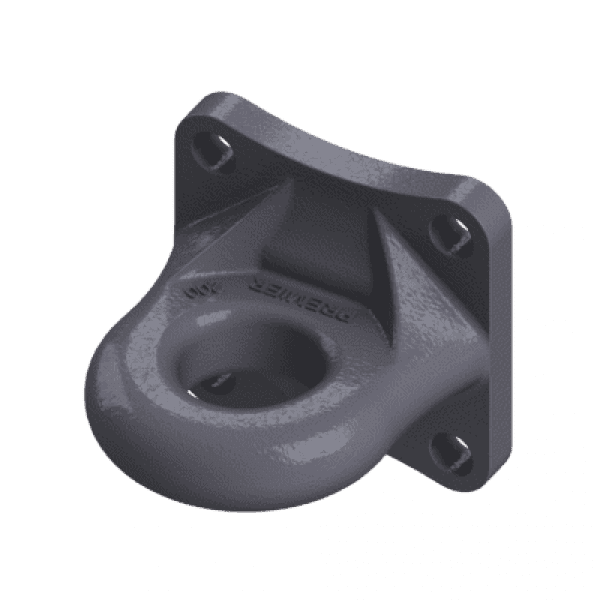

200 Bolt-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
200	10000735	Drawbar Eye, Bolt-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
507	10000154	Bolt Kit
14005	10000053	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	16 lbs. (7.3 kg)

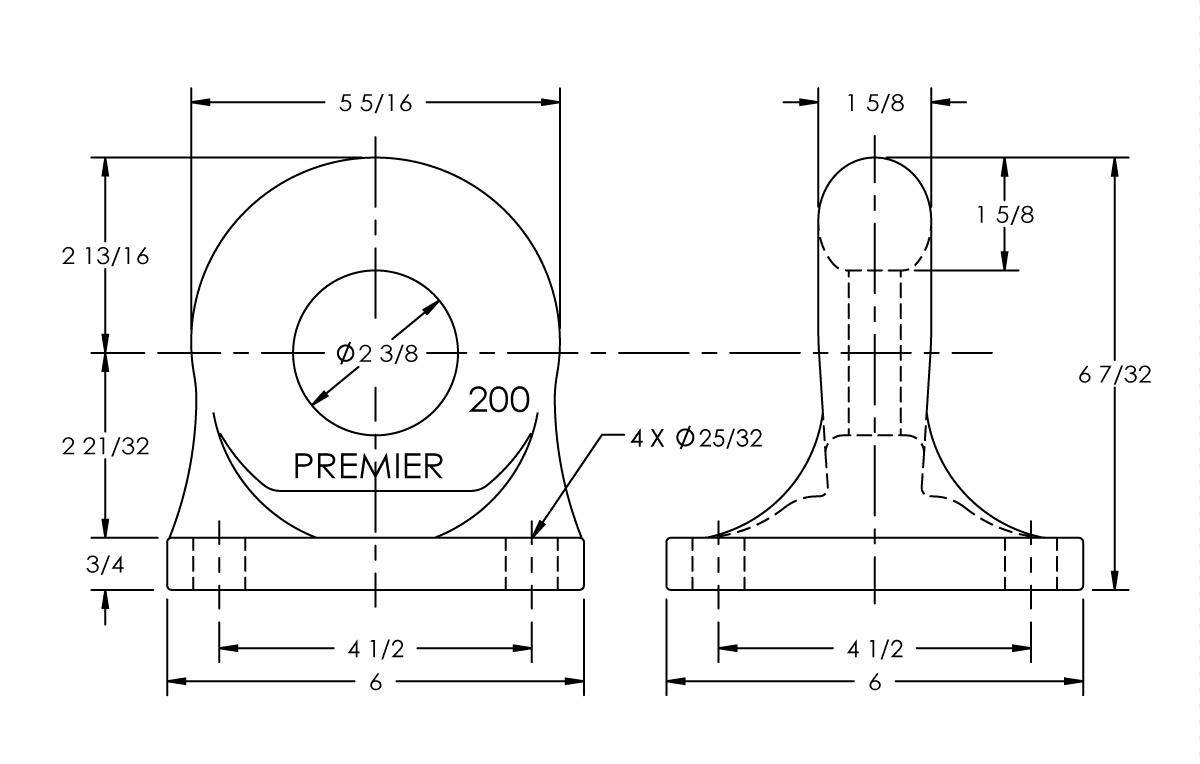

Drawings

Installation

200 200L 300 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

BOLT KITS

Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …
Custom Truck Accessories

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

Compatible Couplings

Below are the Compatible Couplings, to see the full reference chart click here.
