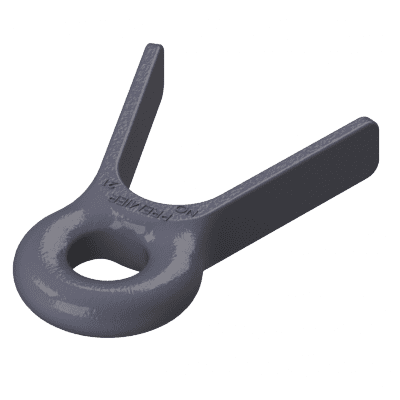

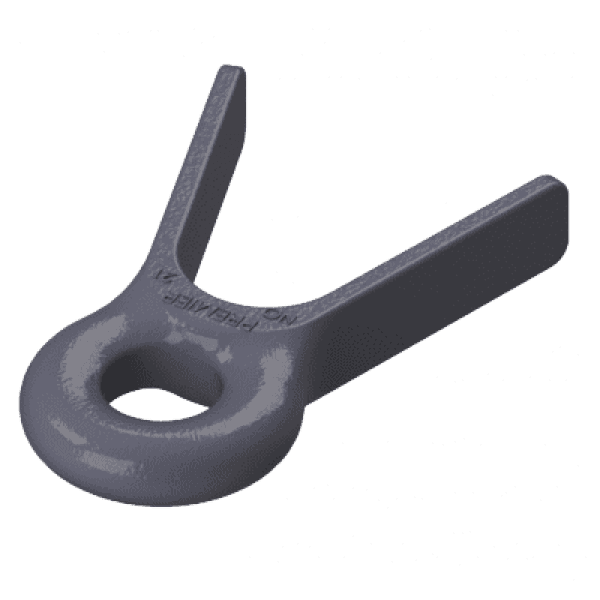

21 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
21	10000772	Drawbar Eye, Weld-On, 2 3/8" ID, 35 degree "V" angle

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	15,000 lbs. (6,803 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	12.7 lbs. (5.8 kg)

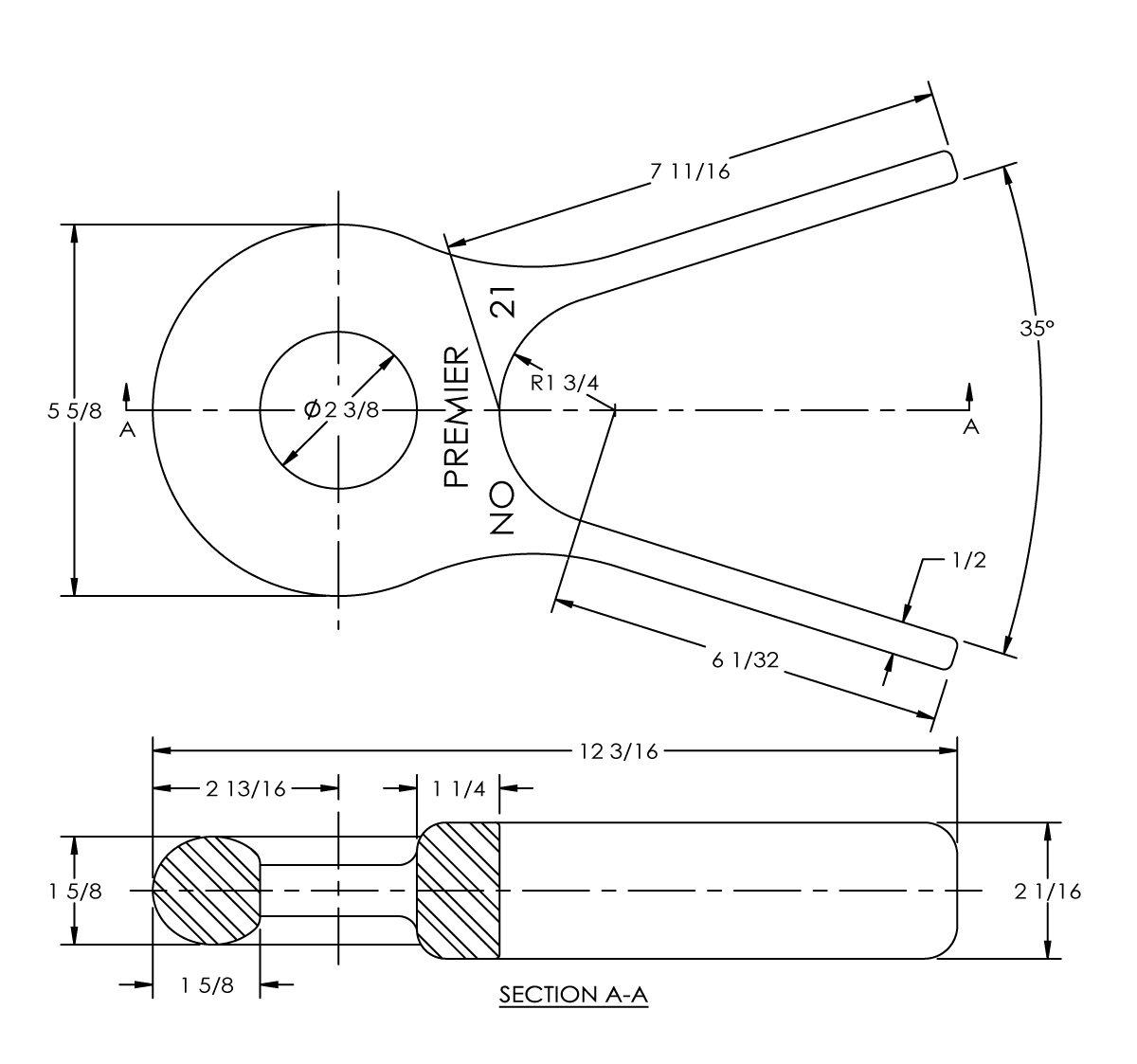

Drawings

Installation

21 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages
