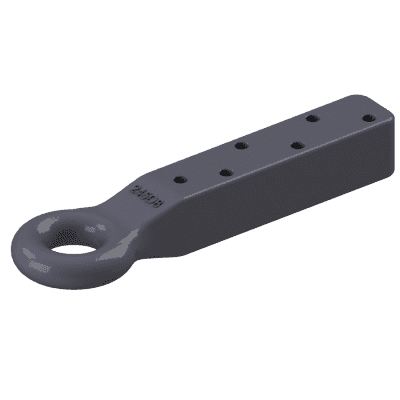

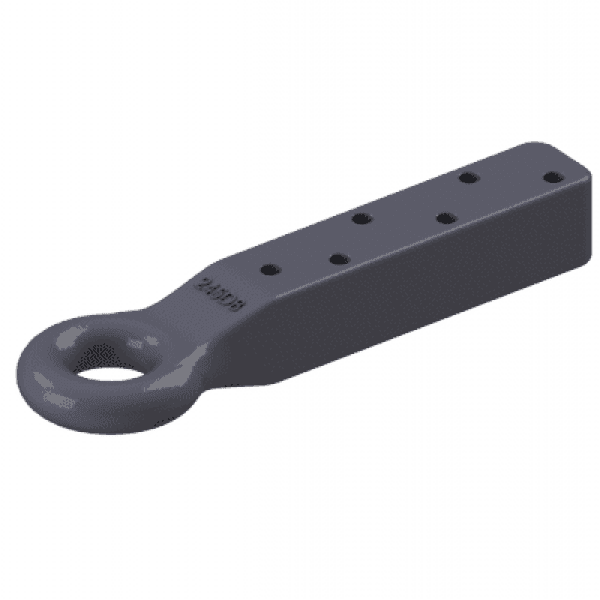

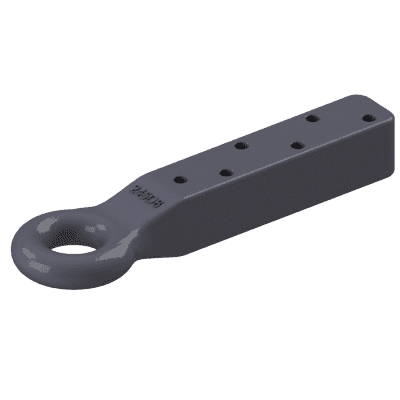

245DB Bolt-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
245DB	10000782	Drawbar Eye, Bolt-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000154	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	8,000 lbs. (3,629 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	41.9 lbs. (19 kg)

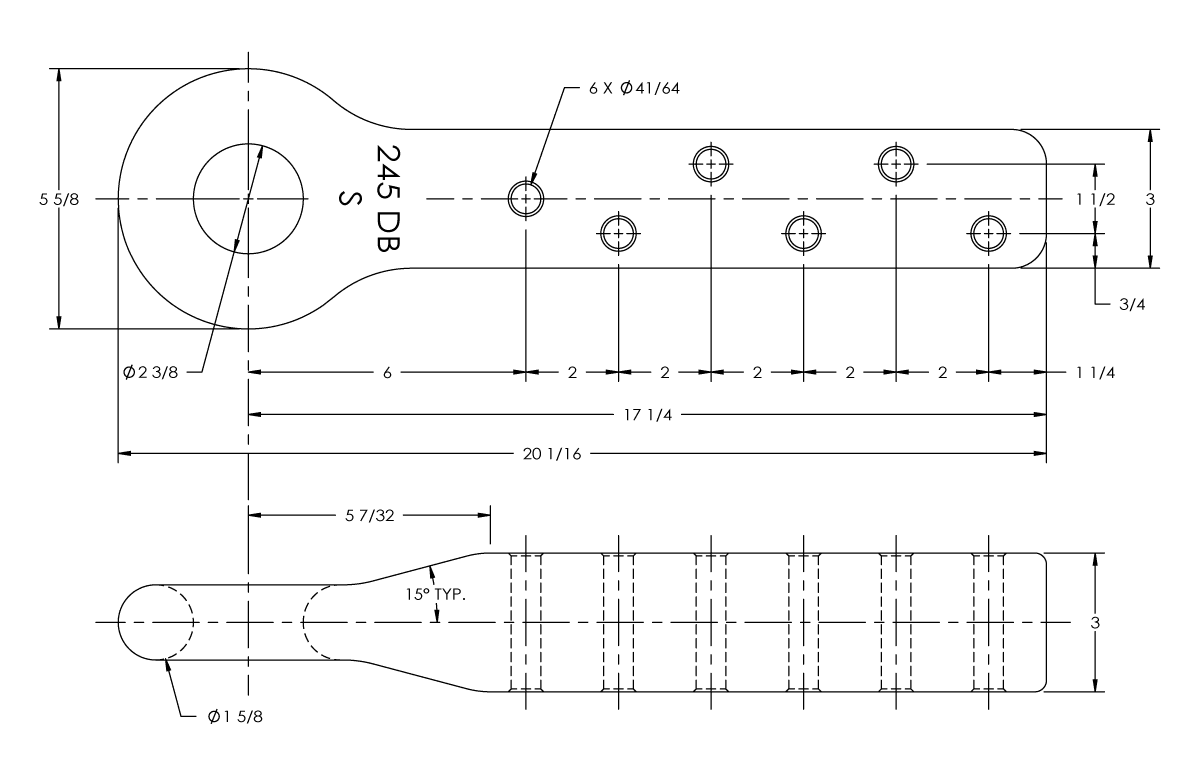

Drawings

Installation

238D 245DB 245DB-3 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...

Compatible Couplings

Below are the Compatible Couplings, to see the full reference chart click here.
