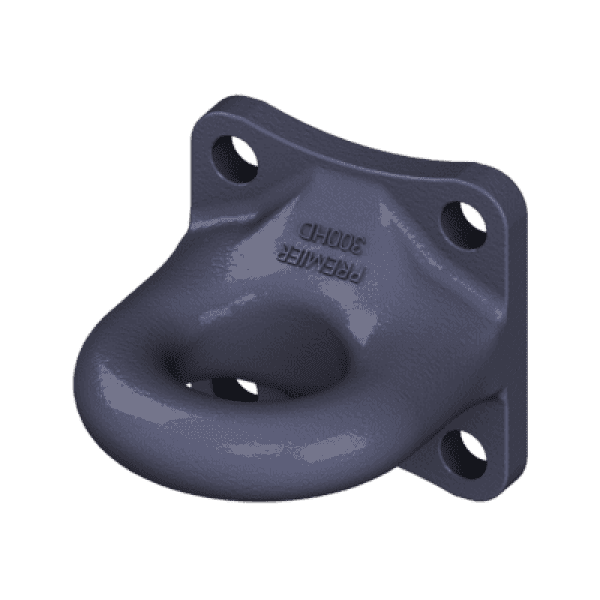

300HD Bolt-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
300HD	10000791	Drawbar Eye, HD Bolt-On, 3" ID, 7/8-Inch Mtg Hardware

ACCESSORY PARTS

Model #	Part #	Description
507	10000154	Bolt Kit
14032	10000075	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)*
Maximum Tongue Weight	20,000 lbs. (9,072 kg)
Inside Diameter	3 in. (76 mm)
Unit Weight	19.4 lbs. (8.8 kg)
*MGTW may be increased to 150,000 lbs. if 7/8-14 L9 Grade bolts & lock nuts are used

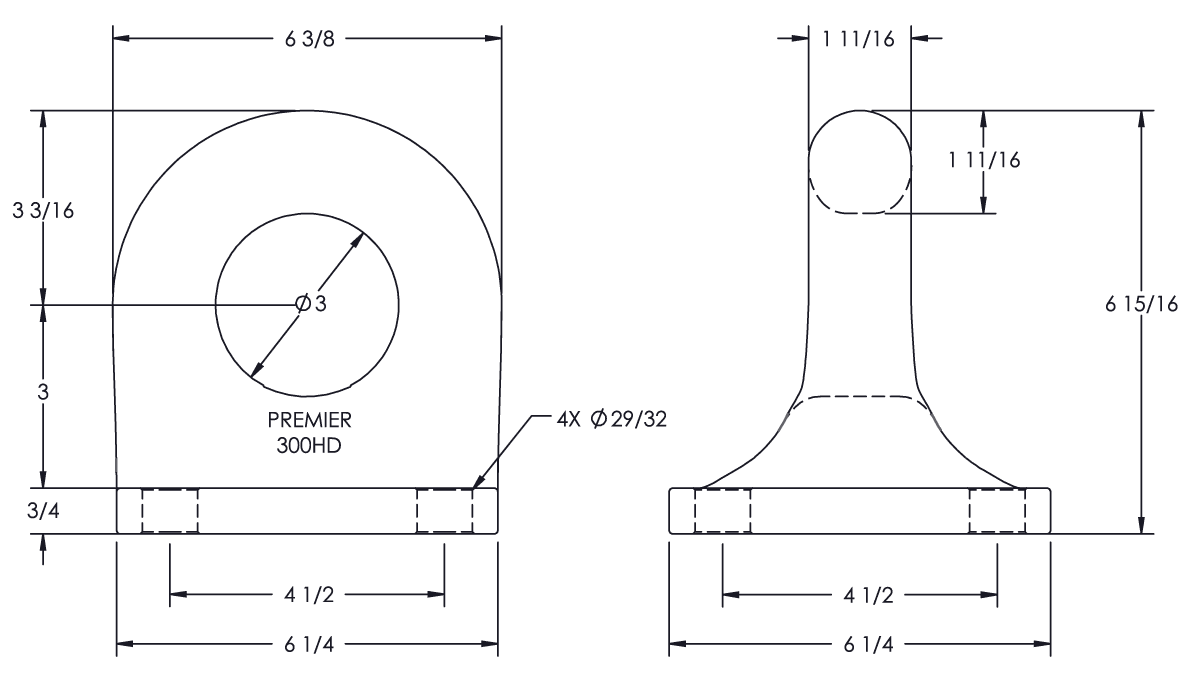

Drawings

Installation

300HD Drawbar Eye Installation

Optional Accessories
