Description
MODELS
| Model # | Part # | Description |

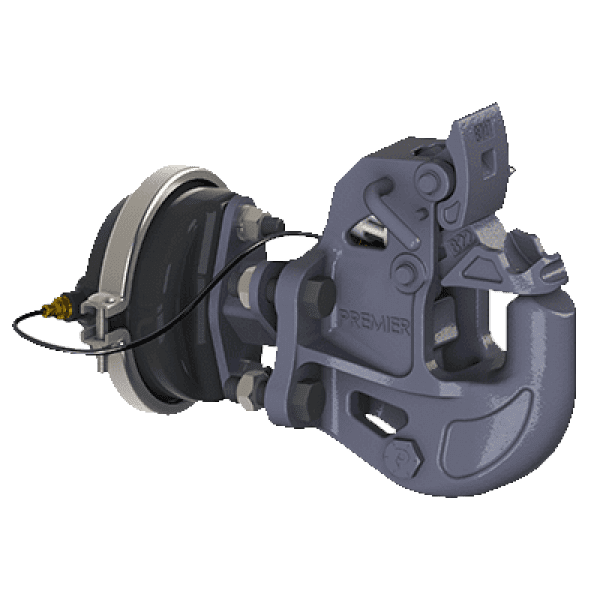

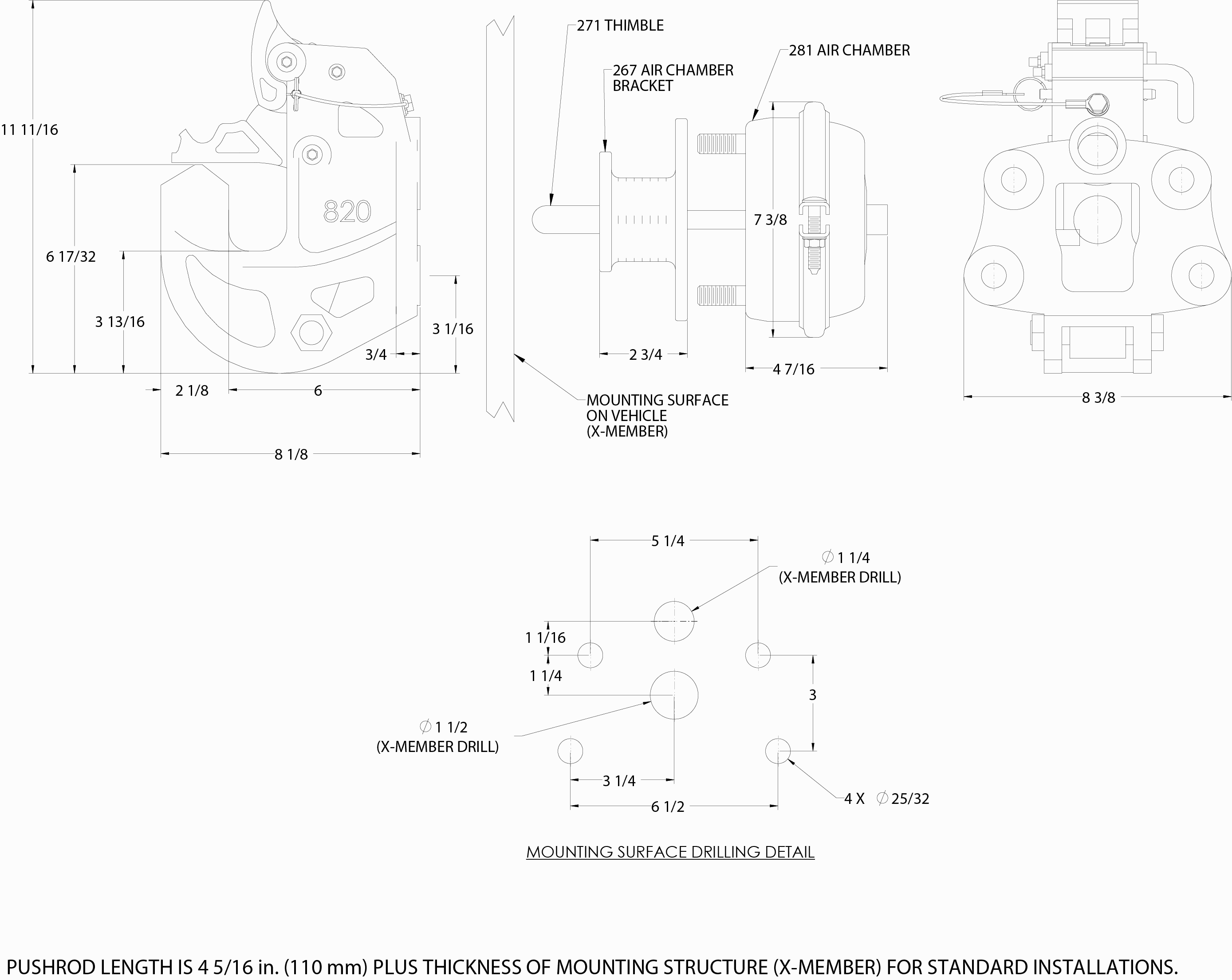

| 820ELA | 10004805 | 820EL Coupling, 834K Airline Kit, 509 Bolt Kit, 281 Air Service Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble |
| 820ELR | 10004807 | 820EL Retrofit Kit: 820EL Coupling, 509 Bolt Kit, 281L Air Service Chamber, 271 Thimble |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 267 | 10000098 | Air Chamber Adapter Bracket |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 (8 in. Pushrod) |
| 281L | 10000120 | Air Chamber, Type 24 (12 in. Pushrod) |
| 509 | 10000156 | Bolt Kit |
| 820PK-EL | 10000394 | Parts Kit |
| 834K | 10000496 | Air Line Kit |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 100,000 lbs. (45,359 kg) | |
| Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
| Ultimate Latch Capacity | 60,000 lbs. (27,216 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 48.8 lbs. (22.1 kg) |
-
Custom Truck Accessories
267 Air Chamber Brackets
Premier’s 267 Air Chamber Brackets are for use with the 100, 270, 2200, and 820EL Slack Reducing Couplings. Model # 267 is the standard, however, they are available in three lengths to meet your particular mounting structure requirements. Check out the Optional Accessories tab below for additional installation components and order from Premier today!
-
Custom Truck Accessories
271 Thimbles
Premier’s 271 Thimbles are highly wear resistant. They are used on the end of the pushrod …
Custom Truck Accessories
281 & 282 Air Chambers
Premier’s 281 & 282 are not your typical Air Chambers! They are built to last in the rigorous service of …
Custom Truck Accessories
820PK-EL Extended Life Parts Kit
Premier’s 820PK-EL Parts Kit is used to maintain our 820EL Extended Life Couplings. You can access the 820EL Installation, Inspection, Operation, and Maintenance guide by clicking on the Compatible Couplings tab below. Our Install Guides contain important safety and maintenance information. Need just the airline kit? Check out the Similar or Alternatives tab below for ordering information on our …
Custom Truck Accessories
834K Air Line Parts Kit
Premier’s 834K Parts Kit is used to maintain the Air Line in our 820EL Extended Life Couplings. You can access the 820EL Installation, Inspection, Operation, and Maintenance guide by clicking on the Compatible Couplings tab below. Our Install Guides contain important safety and maintenance information. Looking for different 820EL replacement parts? Check out the Similar or Alternatives tab below …
Custom Truck Accessories
Bolt Kits
Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …
Custom Truck Accessories
Wear Gages
<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
-
Drawbar Eyes
8 Weld-On Drawbar Eye
Premier’s 8 Weld-On Drawbar Eye has a maximum gross trailer weight of 100,000 lbs. Check out the Installation Guide below for more information and order from your local distributor today!D<span data-sheets-value="{"1":2,"2":"The 110 weld-on slack reducing drawbar eye is perfect for your every day trucking needs. This slack reducing eye was designed for 2 1/2 inch (64 mm) ...
Drawbar Eyes
6A Weld-On Drawbar Eye
Premier’s 6A Weld-On Drawbar Eye is an amazing addition to your trucking arsenal. It is perfect for pulling up to 100,000 lbs. in trailer weight! Check out the Installation Guide below for additional information. Find a distributor today!
Drawbar Eyes
6 Weld-On Drawbar Eye
Premier’s 6 Weld-On Drawbar Eye is a great choice for all of your trucking needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Order from a distributor today!
Drawbar Eyes
5 Weld-On Drawbar Eye
The 5 Weld-On Drawbar Eye from Premier Manufacturing is perfect for all of your trucking needs. It has a maximum gross trailer weight of 90,000 lbs. Find a distributor in your area today!
Drawbar Eyes
407SE Swivel Drawbar Eye
Our 407SE Swivel Drawbar Eye is only to be used with Premier Front End Housings. Bushings are not included. Check out the Optional Accessories tab to access more information on our 546R & 556R Front Ends which include the housing, bushings, and washer. The 407SE Swivel Drawbar Eye from Premier Manufacturing has a maximum gross trailer weight of …
Drawbar Eyes
405 Swivel Drawbar Eyes
Our 405 Swivel Drawbar Eyes are only to be used with Premier Front End Housings. Bushings are not included. Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer.This Drawbar Eye is also Slack-Reducing! It can be used with Premier’s 500 Mechanical Slack Adjuster or 281 and 282 …
Drawbar Eyes
4 Weld-On Drawbar Eye
The 4 Weld-On Drawbar Eye from Premier Manufacturing has a maximum gross trailer weight of 90,000 lbs. and a maximum tongue weight of 13,500 lbs. Order this part from a distributor today!
Drawbar Eyes
309 Weld-On Drawbar Eye
The 309 Weld-On Drawbar Eye by Premier Manufacturing boasts a maximum gross trailer weight of 150,000 lbs. Locate a distributor in your area today!Designed For: 4 in. (102 mm) round tubing
Drawbar Eyes
307 Swivel Drawbar Eyes
Premier’s 307 Swivel Drawbar Eyes are only to be used with our Front End Housings. Bushings are not included. Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer. With a maximum gross trailer weight of 150,000 lbs., the 307 is perfect for a variety of heavy-duty …
Drawbar Eyes
305 Weld-On Drawbar Eye
The 305 Weld-On Drawbar Eye from Premier Manufacturing is designed for rectangular tubing, features a max gross trailer weight of 150,000 lbs. Order from a distributor today!
Designed For: Rectangular tubing, 2 in. x 4 in. (51 mm x 102 mm) and 4 in. x 4 in. (102 mm x 102 mm)
Drawbar Eyes
304 Weld-On Drawbar Eye
The 304 Weld-On Drawbar Eye Order from Premier Manufacturing offers a maximum gross trailer weight of 150,000 lbs and a maximum tongue weight of 15,000 lbs. Find a distributor today!
Drawbar Eyes
300HD Bolt-On Drawbar Eye
Premier’s 300HD Bolt-On Drawbar Eye Premium Manufacturing that has the same 3” ID as our 300 Drawbar Eye. Our 300 uses 3/4” mounting hardware. Whereas, the 300HD uses 7/8” mounting hardware and has a higher tongue capacity. Check out the Optional Accessories tab below for bolt kit and wear gage information.
Drawbar Eyes
300 Bolt-On Drawbar Eye
Premier Manufacturing’s 300 bolt-on drawbar eye is an exceptional addition to your trucking needs. It features a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Don’t forget to check the corresponding bolt kit (model# 507) and wear gage (model # 14032) listed under the Optional Accessories tab below. Order from a distributor today!
<button ...
Drawbar Eyes
245DB-3 Bolt-On Drawbar Eye
The 245DB-3 Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
Drawbar Eyes
245DB Bolt-On Drawbar Eye
The 245DB Bolt-On Drawbar Eye is great choice for your trucking needs. With a maximum gross trailer weight of 100,000 lbs. and maximum tongue weight of 8,000 lbs., it is the perfect tool for all of your mid-to-heavy-duty applications.
Drawbar Eyes
238DB Bolt-On Drawbar Eye Product Discontinued
The 238DB Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
Drawbar Eyes
207 Swivel Drawbar Eyes
Our 207 Swivel Drawbar Eyes are only to be used with Premier Front End Housings. Bushings are not …
Drawbar Eyes
205 Weld-On Drawbar Eye
<span data-sheets-value="{"1":2,"2":"The 205 weld-on drawbar eye from Premier Manufacturing is an exceptional addition to your hauling equipment. It is designed for rectangular tubing that is 2 inches by 4 inches (51 mm x 102 mm) and 4 inches by 4 inches (102 mm x 102 mm). With a maximum gross trailer weight of 100,000 lbs, this drawbar eye is ...
Drawbar Eyes
127 & 127F Bolt-On Slack Reducing Drawbar Eyes
Made with our durable Premalloy, the 127 Bolt-On Slack Reducing Drawbar Eye is perfect for all of your trucking needs. It was designed for use with Premier’s 500 Mechanical Slack Adjuster or 281 and 282 Air Service Chambers. Slack Reducing Eyes work to maintain a tight fit between the drawbar eye loop and pintle hook. The snug fit improves the ride & …
