Description
MODELS
| Model # | Part # | Description |

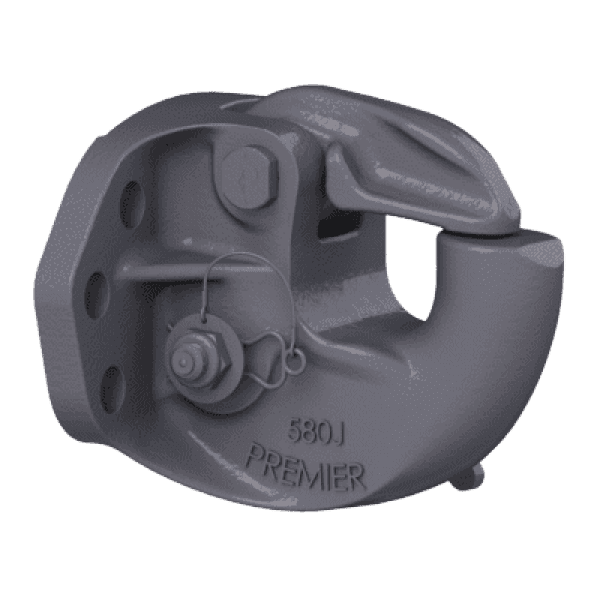

| 580J | 10001196 | 580J Coupling |
ACCESSORY & REPLACEMENT PARTS
| Model # | Part # | Description |
| 503 | 10000151 | Bolt Kit |
| 580RK | 10001199 | Repair Kit |
| 14011 | 10000059 | Wear Gage |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 90,000 lbs. (40,823 kg) | |
| Maximum Tongue Weight | 18,000 lbs. (8,165 kg) | |
| Ultimate Latch Capacity | 30,000 lbs. (13,608 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 25.3 lbs. (11.5 kg) |
-
Custom Truck Accessories

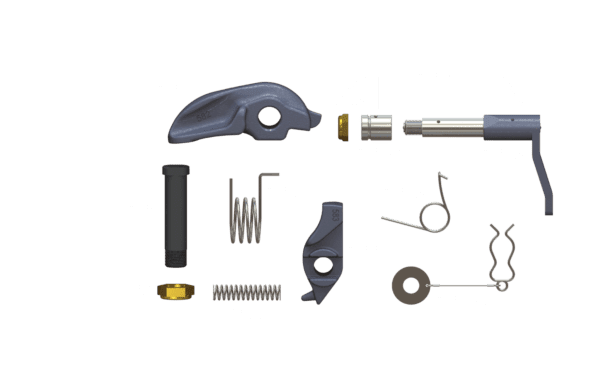

580RK Repair Kit
The 580RK Repair Kit includes component parts to repair our 580 & 580J Couplings. We also offer the 581 Handle Assembly if you require those components only. …
-
Custom Truck Accessories
BOLT KITS
Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …
Custom Truck Accessories
Wear Gages
<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
[gview file=”https://www.premier-mfg.com/wp-content/uploads/580_Service_Guidelines.pdf”]
Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
-
