Description
MODELS
| Model # | Part # | Description |

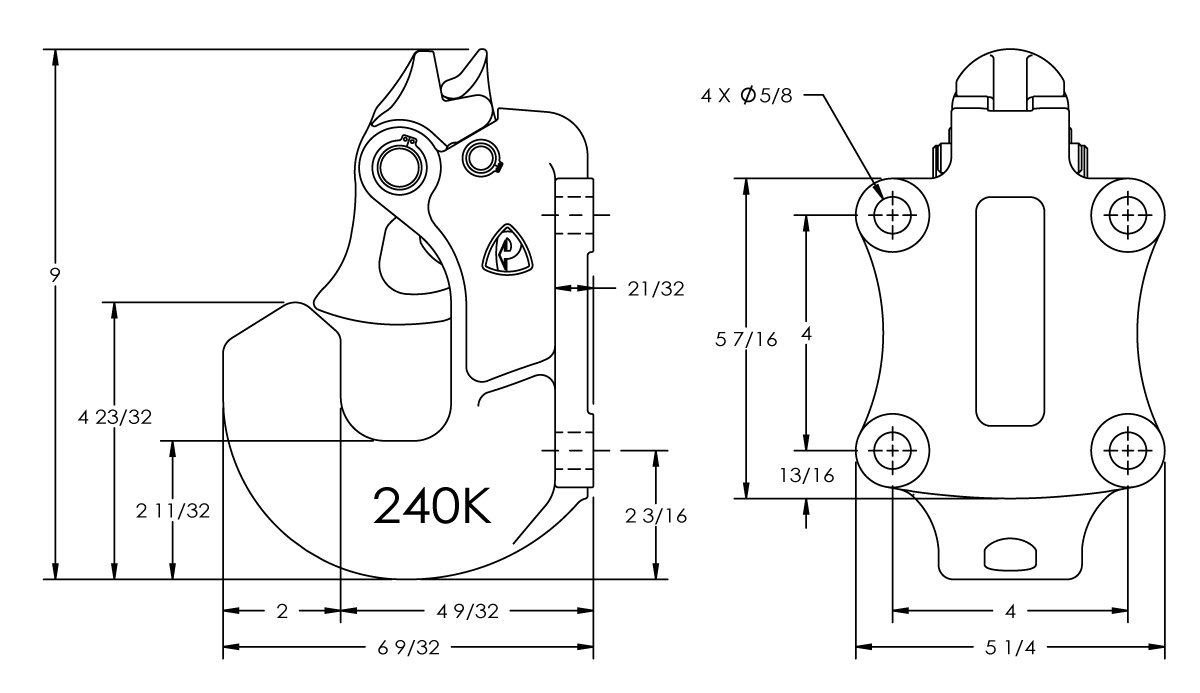

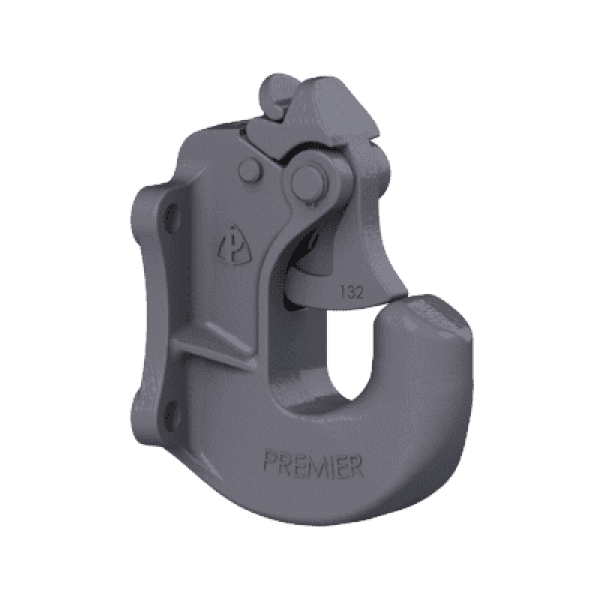

| 240K | 10001128 | 240K Coupling |
| 240KL | 10001132 | 240K Coupling with 133KL Left Bar Latch Lock installed |
ACCESSORY & REPLACEMENT PARTS
| Model # | Part # | Description |
| 130PK | 10001043 | Parts Kit |
| 133KL | 10000216 | Left Bar Latch Lock |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 45,000 lbs. (20,412 kg) | |
| Maximum Tongue Weight | 6,000 lbs. (2,722 kg) | |
| Ultimate Latch Capacity | 20,000 lbs. (9,072 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 17.1 lbs. (7.8 kg) |
-
