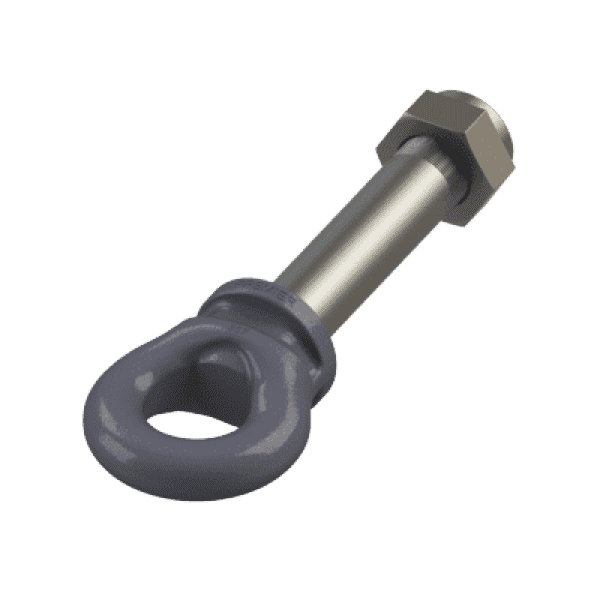

307 Swivel Drawbar Eye | Premier Manufacturing

Description

MODELS

Model #	Part #	Parts Included
307L	10000805	307 Drawbar Eye, 208 Snap Ring, 416 Locknut
307S	10000804	307 Drawbar Eye, 208 Snap Ring, 416 Locknut
307SE	10000806	307 Drawbar Eye, 208 Snap Ring, 416 Locknut
307K	10000803	307 Drawbar Eye, 208SPL Snap Ring, 416K Locknut

307 SPECIFICATIONS

Maximum Gross Trailer Weight:	150,000 lbs. (68,039 kg)
Maximum Tongue Weight:	2,500 lbs. (1,134 kg)
Inside Diameter:	3 in. (76 mm)

Model #	Drawbar Eye Dimensions	Unit Weight
307L	3" ID, Shaft 2" OD x 12 1/4" L	29 lbs. (13.2 kg)
307S	3" ID, Shaft 2" OD x 11 3/8" L	29 lbs. (13.2 kg)
307SE	3" ID, Shaft 2" OD x 13 1/8" L	30 lbs. (13.6 kg)
307K	3" ID, Shaft 2 1/4" OD x 11 3/8" L	32 lbs. (14.5 kg)

MODELS

Model #	Part #	Description
208	10001106	Snap Ring
208SPL	10001107	Snap Ring (for 207K only)
416	10001181	Locknut
416K	10001182	Locknut (for 207K only)
14032	10000075	Wear Gage

REPLACEMENT PART SPECIFICATIONS

Model #	Inside Diameter
208	1 7/8 in.
208SPL	2 1/4 in.
416	2 in.
416K	2 1/4 in.

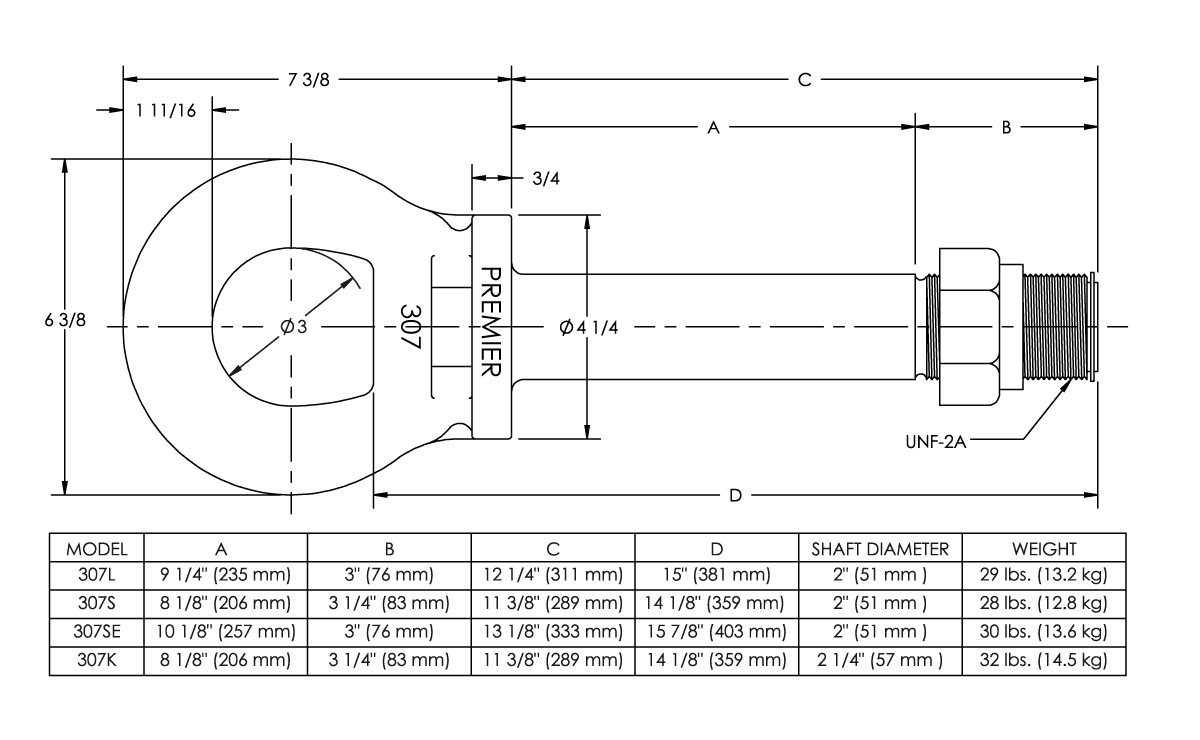

Drawings

English Installation Instructions

207 307 Drawbar Eye Installation

French Installation Instructions

207 307 Drawbar Eye Installation
