4 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
4	10000815	Drawbar Eye, Weld-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	90,000 lbs. (40,823 kg)
Maximum Tongue Weight	13,500 lbs. (6,123 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	10.1 lbs. (4.6 kg)

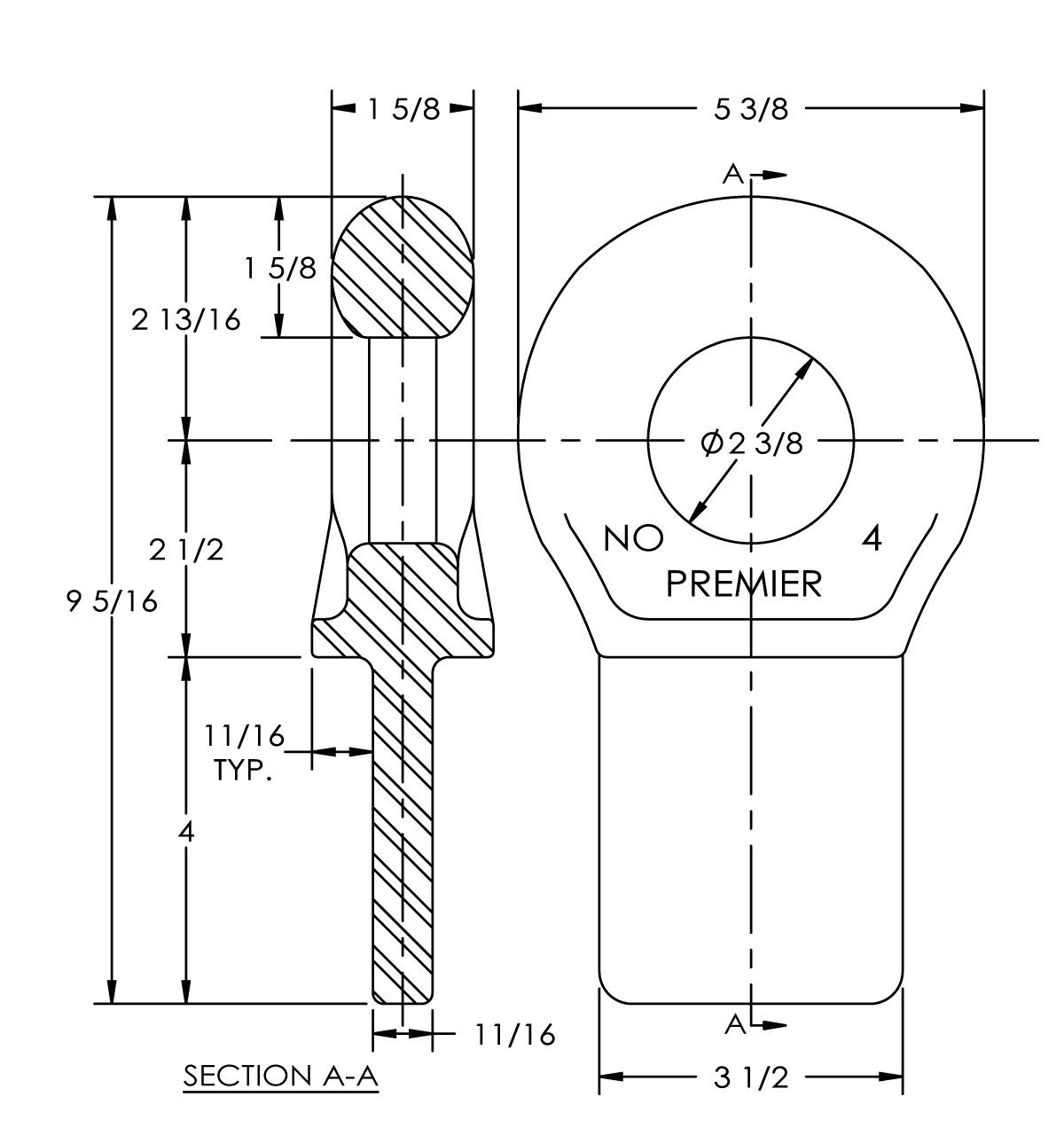

Drawings

Installation

4 5 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
