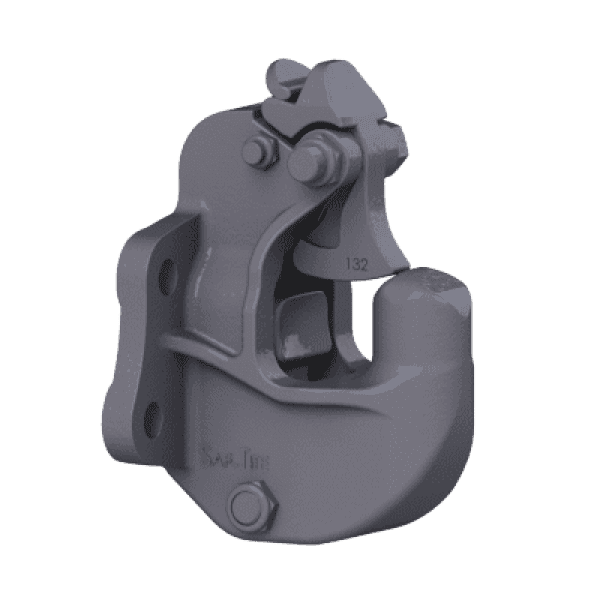

SAF-TITE 100 Slack Reducing Coupling, Part #10004654

The SAF-TITE 10004654 slack reducing coupling features the most popular mounting bolt pattern in the industry; the same as our 2200 and 10004733 models. With a maximum gross trailer weight of 100,000 lbs. and 20,000 lbs. latch capacity, the SAF-TITE 10004654 is an ultra-strong product suitable for your hitching needs.


Description

MODELS

Part #10004654
(Model #100)
Coupling & 10000107 Thimble.
Part #10004668
(Model #100A)

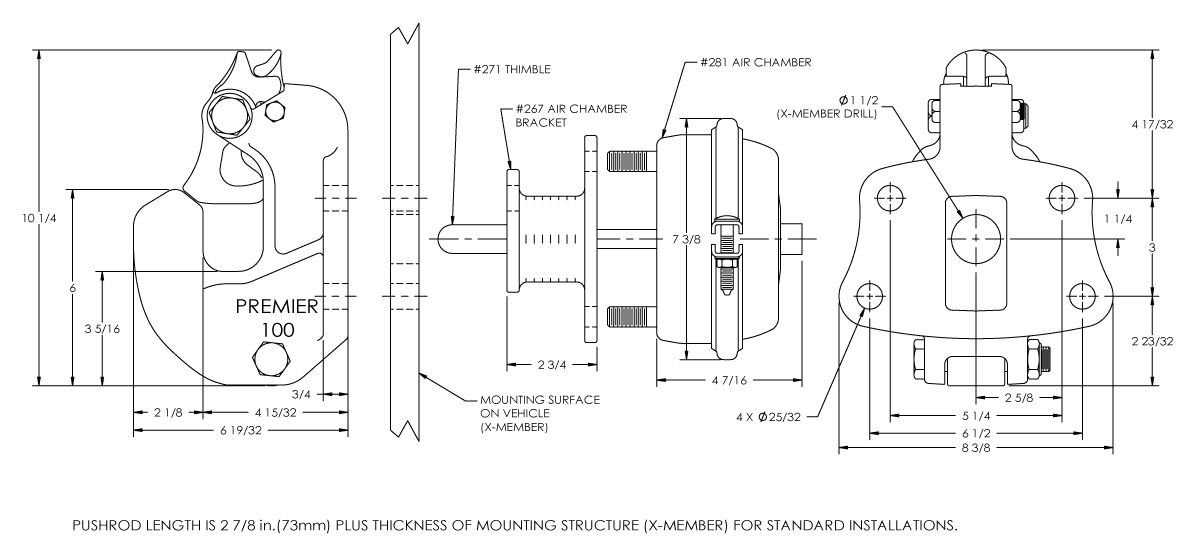

10004654 Coupling, 10000149 Bolt Kit, 10000116 Air Chamber, 10000098 Air Chamber Adapter Bracket, 10000107 Thimble.
Part #10004669
(Model #100A-2)
Same as 10004668 Kit, without the 10000149 Bolt Kit.

SPECIFICATIONS

Maximum Gross Trailer Weight 100,000 lbs. (45,359 kg)
Maximum Tongue Weight 18,000 lbs. (8,165 kg)
Ultimate Latch Capacity 20,000 lbs. (9,072 kg)
Maximum Eye X-Section 1 11/16 in. (43 mm)
Minimum Eye Opening 2 3/8 in. (60 mm)
Unit Weight 28.3 lbs. (12.8 kg)
